Ionpure CEDI IP-LXM30Z-5 EDI Module For Semiconductor Electronics
Product Details:
| Place of Origin: | China |
| Brand Name: | IONPURE |
| Certification: | CE |
| Model Number: | IP-LXM30Z-5 |
| Document: | fgwater-ionpure-lxz-ds.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Brand: | Ionpure CEDI | IP-LXM30Z-5 Minimum Flow Rate M3/hr (gpm): | 1.70 (7.5) |
|---|---|---|---|
| IP-LXM30Z-5 Design Flow Rate M3/hr: | 3.3-5.11 | IP-LXM30Z-5 Temperature: | 5–45˚C (41–113˚F) |
| Shipping Weight Kg (lbs)**: | 132 (291) | Operating Weight Kg (lbs) Of This Model: | 110 (243) |
| Recovery Of This Model: | 90–95% | Advantages: | Greater Stability |
| Inlet Pressure: | 1.4–6.9 Bar (20–100 Psig) | Application: | Pharma/Power Plants |
| Highlight: | Semiconductor EDI Module,Electronics EDI Module,Ionpure CEDI IP-LXM30Z-5 EDI Module |
||
Product Description
Ionpure CEDI LX-Z IP-LXM30Z-5 EDI Module For Semiconductor & Electronics
Ionpure CEDI LX-Z IP-LXM30Z-5 Electrodeionization Module
The IP-LXM30Z-5 is a high-performance industrial EDI (Electrodeionization) module from the IONPURE® LX-Z series, leveraging Continuous Electrodeionization (CEDI) technology to produce ultrapure water without chemical regeneration. Designed for large-scale industrial applications, it delivers consistent water quality exceeding mixed-bed resin performance while eliminating hazardous acid/base handling.
Key Features
-
Chemical-Free Operation: Produces ultrapure water continuously without acid/alkali consumption or resin regeneration downtime.
-
Robust Design: Dual O-ring seals ensure leak-free operation; high electrical insulation withstands rigorous industrial environments.
-
Patented "Full-Fill" Technology: Eliminates need for brine recirculation pumps or salt dosing systems, reducing operational complexity.
-
Stable Output: Maintains water resistivity >16 MΩ·cm and conductivity ≤0.06 μS/cm with 90–99% silica (SiO₂) removal (feed-dependent).
-
High Efficiency: Operates at 90–95% recovery, reducing water waste by 30% compared to conventional ion exchange.
QUALITY ASSURANCE STANDARDS

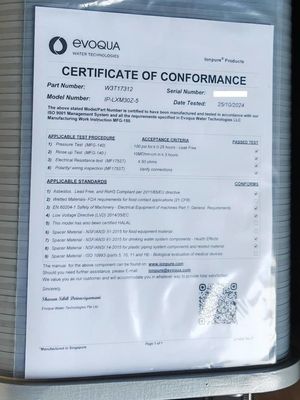

CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under the conditions of complying with ISO 9001 and ISO 14000 quality and environmental management system standards.
About the operating environment of the IONPURE LX-Z module:
The module should be installed indoors, away from direct sunlight, and ensure that the ambient temperature does not exceed 113°F (45°C) to ensure its stable and efficient operation. This can effectively extend the service life of the module while ensuring the stability and reliability of the water quality.
* Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.
*Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm), ensuring excellent deionization results in various application scenarios.
E-Cell EDI Technology Performance Examples
E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.
For application cases, please click:https://www.fgwater.com/Industries/
