90-95% Recovery IP-LXM10HI-3 For Hot Water Sanitization Pharmaceutical PH 4-11
Product Details:
| Place of Origin: | China |
| Brand Name: | China brand |
| Certification: | CE |

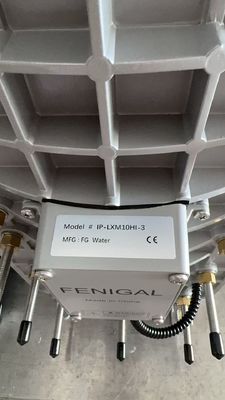

| Model Number: | IP-LXM10HI-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Minimum / Nominal / Maximum: | 0.55 / 1.1 / 1.65 M³/h | Product Conductivity: | < 0.1 MΩ·cm |
|---|---|---|---|
| Sanitization Temperature: | 85° | Maximum Feed Temperature: | 60° |
| Recovery: | 90–95% | Advantages: | Cost-effective |
| PH: | 4-11 | Application: | Hot Water Sanitizable |
| Highlight: | Hot Water Sanitization IP-LXM10HI-3,90-95% Recovery IP-LXM10HI-3,Pharmaceutical IP-LXM10HI-3 |
||
Product Description
Cost-effective China Brand IP-LXM10HI-3 For Hot Water Sanitizable And Pharmaceutical
Product Overview
Hot water sanitizable at 85°C ± 5°C
• Continuous operation up to 60°C
• US Patented technology for instant hot water
capability – no ramp up/down required
• Higher sanitization pressures 2.0 bar
• Double O-ring seal guarantees leak-free
operation
• Proven performance after 150+ sanitizations
• Concentrate recirculation and brine injection not
required
• Wetted materials of construction comply with FDA
requirements
Description and use

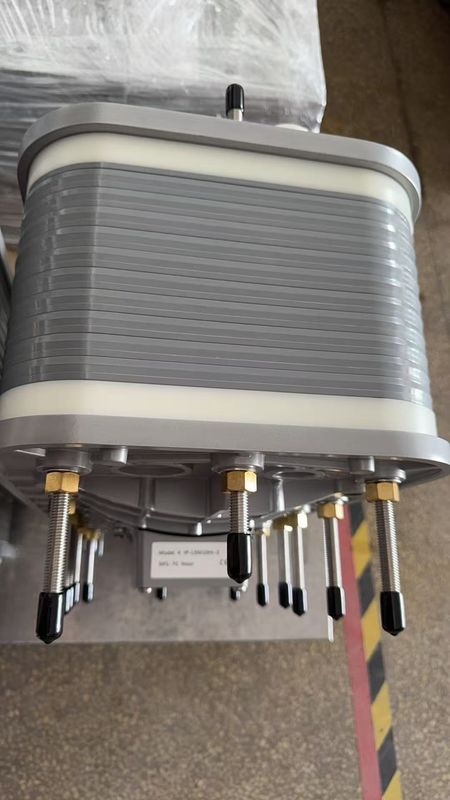

Ionpure LXM-HI modules are hot water sanitizable EDI
stacks which use electrical current to deionize and
polish reverse osmosis (RO) permeate water. The
product water quality for the system is at greater than
USP quality levels required in today’s Pharmaceutical
applications.
Typical Applications
• Pharmaceutical
• Laboratory Semiconductor
| Category | Parameter | Specification / Value | Notes |
|---|---|---|---|
| Physical Specifications | Shipping Weight | 91 kg | |
| Operating Weight | 68 kg | ||
| Dimensions (D x H x W) | 348 x 605 x 318 mm | ||
| Flow Rates | Minimum / Nominal / Maximum | 0.55 / 1.1 / 1.65 m³/h | |
| Typical Performance | Product Conductivity | < 0.1 MΩ·cm | |
| Silica (SiO₂) Removal | 90 - 99 % | Depends on feed water¹ | |
| Operating Parameters | Recovery | 90 – 95 % | |
| Maximum Feed Pressure | 7 bar | ||
| DC Voltage* | 0 – 133 VDC | *Depends on module size | |
| DC Amperage | 0 – 10 Amp | ||
| Pressure Drop (at Nominal Flow) | 1.4 – 2.1 bar | ||
| Maximum Feed Temperature | 60 °C | ||
| Sanitization Temperature | 85 °C | At 2.0 bar inlet pressure | |
| Maximum Feedwater Specifications | Feed Water Conductivity (incl. CO₂, SiO₂) | < 40 µS/cm | |
| Temperature | 5 to 60 °C | ||
| Inlet Pressure | 1.4 - 7 bar | ||
| pH | 4 - 11 | ||
| Maximum Contaminant Levels | |||
| - Free Chlorine (as Cl) | < 0.02 ppm | ||
| - Iron (as Fe) | < 0.01 ppm | ||
| - Manganese (as Mn) | < 0.01 ppm | ||
| - Sulfide (as S⁻) | < 0.01 ppm | ||
| - Total Hardness (as CaCO₃) | < 1.0 ppm | ||
| - Dissolved Organics (TOC as C) | < 0.5 ppm | ||
| - Silica (SiO₂) | < 1.0 ppm |
E-Cell EDI 技术性能示例
E-Cell EDI技术已成功应用于电力,石油,化工,钢铁,制药,电子等各个行业.
应用案例请点击:https://www.fgwater.com/Industries/
关于我们
FG水处理技术公司(www.fgwater.com)现为无锡芬尼格尔科技有限公司的有机组成部分,是一家集水处理设备设计,制造,贸易和运输为一体的高科技实体,服务于主要工业部门.
HAFE-FG水处理技术有限公司专注于水处理技术研究,设备开发与制造,检测及国际运输等业务,与中国高新技术开发区多家领先的大型或中小型原始设备制造商合作,致力于研发,生产和质量检测.
我们的主要产品包括各种水净化及处理设备,例如海水反渗透(SWRO)系统,苦咸水反渗透(BWRO),超滤(UF)系统,电去离子/EDI设备,介质压力过滤器和离子交换软化器.目前,我公司已成为食品饮料,制药,化工,电力,城镇供水,市政及工业废水处理等行业的主要水处理设备供应商,并出口到亚洲,欧洲,美洲,非洲等20多个国家和地区.
我们的客户
生产系统
我们的生产体系由遍布全国的多家行业专业合作工厂组成.部分工厂占地面积超过10,000平方米,其中包括5,000平方米的厂房及仓库以及1,500平方米的办公楼.我们所有的技术人员均拥有超过10年的水处理系统设计经验,因此我们能够为各种水净化和污水处理应用提供完美的解决方案.
自成立以来,公司始终视质量为企业生命.我们只选用最优质的部件,生产各种水处理系统.我们的系统易于使用和维护,即使在最恶劣的条件下也能保持高度可靠.
