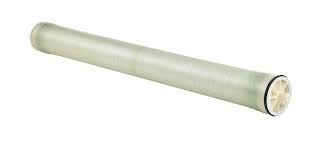

DOW FilmTec™ LC LE PRO-4040 Water Treatment With Barcol Hardness Test Every 1.5 Meters At 25C Reverse Osmosis Membranes
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE |
| Model Number: | LC LE PRO-4040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Features: | Low Working Pressure | Process: | Winded |
|---|---|---|---|
| Categary: | Industrial Membrane Element | Barcol Hardness Test: | Repeated Once Every 1.5 Meters |
| Ph Range: | 2-11 | Temperature: | 25℃） |
| Operating Pressure: | 150-300 Psi | Product Productivity: | 250L/Hour |
| Flow Rate: | 100-5000 GPD | Main Feature: | Ultra-low Pressure |
| Product Connection Type: | End Port, Side Port, Multi-port Optional | Components: | Membrane |
| Burst Test: | 6 Times Of Its Design Pressure. | Product Core Components: | Membrane |
| Advantage Of Membrane: | Ultra Low Pressure | ||
| Highlight: | 25C Reverse Osmosis Membranes,Water Treatment Reverse Osmosis Membranes,Barcol Hardness Test RO Membranes |
||
Product Description
Key Features
The DOW FilmTec™ LC LE PRO-4040 Reverse Osmosis Membranes deliver high-quality water at low pressure, even under harsh water conditions. These membranes utilize DuPont's innovative, proprietary technology for low-energy applications, offering significant benefits in both efficiency and performance:
-
Industry-Leading Active Area (94 sqft): Ensures reduced fouling due to lower operating flux while still achieving higher flow rates.
-
High Salt Rejection: Operates at low pressures in harsh water conditions, offering exceptional salt rejection.
-
Effective Cleaning Performance: Features the widest cleaning pH range (1-13) and outstanding chemical tolerance, ensuring durability and reliability.
Key Applications
The LC LE PRO-4040 Reverse Osmosis Membranes are ideal for various light industrial applications, particularly those requiring high-quality permeate water. Typical uses include:
-
Harsh Feed Water Conditions
-
Drinking Water: Suitable for refilling stations, bottling plants, hotels, schools, and institutions.
Typical Properties
| Product Part Number | Dry Permeate Flow Rate (gpd / m³/d) | Min. Salt Rejection (%) | Stabilized Salt Rejection (%) |
|---|---|---|---|
| LC LE PRO-4040 | 2600 (9.8) | 99.0 | 99.5 |
-
Test Conditions: 2000 ppm NaCl, 77°F (25°C), 15% recovery, pH 8, applied pressure 150 psig. Individual permeate flows may vary +/- 20%.
Operating and Cleaning Limits
The LC LE PRO-4040 Reverse Osmosis Membranes have the following operating and cleaning parameters:
| Property | Limit |
|---|---|
| Membrane Type | Polyamide Thin-Film Composite |
| Maximum Operating Temperature | 113°F (45°C) |
| Maximum Operating Pressure | 600 psig (41 bar) |
| Maximum Pressure Drop | 15 psig (1.0 bar) |
| Maximum Feed Flow Rate | 16 gpm (3.6 m³/h) |
| pH Range (Continuous Operation) | 2 - 11 |
| pH Range (Short-Term Cleaning) | 1 – 13 |
| Maximum Feed Silt Density Index (SDI) | 5 |
| Free Chlorine Concentration | < 0.1 ppm |
Note: Maximum temperature for continuous operation above pH 10 is 95°F (35°C). Refer to FilmTec™ Cleaning Guidelines for specific cleaning instructions.
General Information
To ensure the longevity and performance of the DOW FilmTec™ LC LE PRO-4040 Reverse Osmosis Membranes, please follow these operational guidelines:
-
Keep elements moist at all times after initial wetting.
-
For successful operation of Reverse Osmosis (RO) and Nanofiltration (NF) membrane systems, refer to FilmTec™ Reverse Osmosis / Nanofiltration Elements Operation Excellence and Limiting Conditions Tech Fact.
-
To prevent biological growth during system shutdowns, immerse membrane elements in a preservative solution.
-
Maximum pressure drop across an entire pressure vessel (housing) is 50 psi (3.4 bar).
-
Avoid static permeate-side backpressure and discard permeate obtained from the first hour of operation.
Important Information
Proper start-up of the Reverse Osmosis Membranes is crucial for optimal performance. Follow the recommended procedures to prevent damage from overfeeding or hydraulic shock. The FilmTec™ Reverse Osmosis Membranes Technical Manual provides detailed guidance.
-
System Start-Up: Ensure all system checks are completed before initiating start-up, including membrane pretreatment and instrument calibration.
Regulatory Note
This product may be subject to drinking water application restrictions in some countries. Please verify application status before use and sale.
