Ultra Low Pressure Reverse Osmosis ULP Series Membrane Elements
Product Details:
| Place of Origin: | China |
| Brand Name: | China brand |
| Certification: | CE |
| Model Number: | Ultra low pressure ULP series |
| Document: | _RO-membranes.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc（This product can be produced with your brand on bulk order） |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Payment Terms: | ,T/T |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| The Type Of Membrane: | Ultra Low Pressure Reverse Osmosis Membrane Elements | Product Model: | ULP Series |
|---|---|---|---|
| The Brand: | China Brand | Average Water Production GPD (m3/d): | 10500(39.8) |
| Stable Desalination Rate%: | 99.0,99.3 | Minimum Desalination Rate (%): | 98.5,99.0 |
| Product Features: | It Can Obtain Higher Water Flux Under Extremely Low Operating Pressure Conditions While Maintaining A Higher Desalination Rate | ||
| Highlight: | ULP Reverse Osmosis Membrane Elements,Reverse Osmosis Membrane Elements,Ultra low pressure reverse osmosis |
||
Product Description

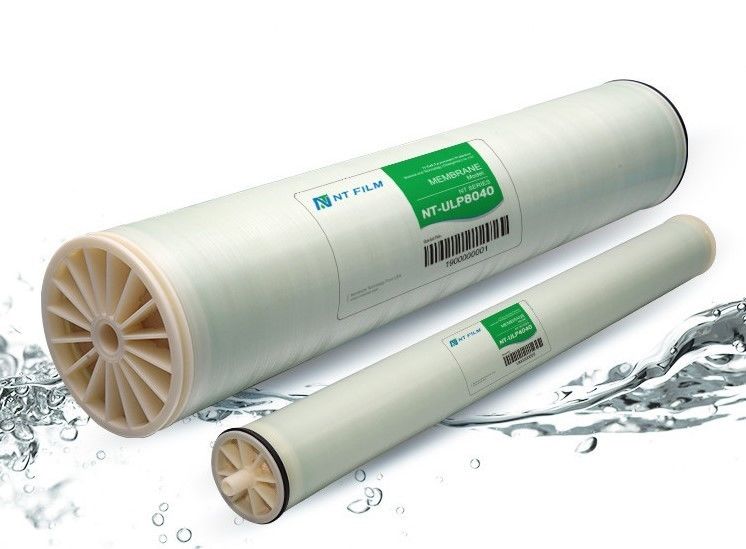

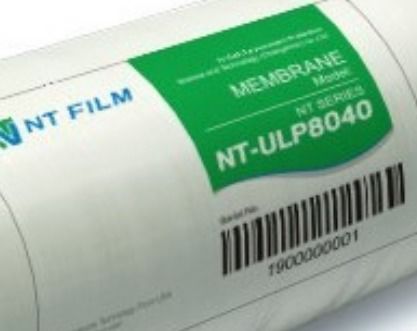

Ultra low pressure reverse osmosis ULP series membrane elements
Product Details
(1) Product positioning
ULP series membrane elements are suitable for desalination treatment with municipal tap water and groundwater as water sources at low salinity (TDS <1000 mg/L). They are mainly used in many fields such as large-scale residential water supply, pure water preparation, and industrial pure water preparation for food, beverages, etc.
(2) Product features
It can obtain higher water flux under extremely low operating pressure conditions while maintaining a higher desalination rate. Its operating pressure is about 30-50% lower than that of conventional brackish water membranes, and its operating energy consumption is reduced by more than 20%.
(3) Product performance
| model | Average water production GPD (m3/d) |
Stable desalination rate% | Minimum desalination rate (%) | Effective membrane area ft2 (m2) | Water inlet grid thickness (mil) |
| LP-8040-HF | 13000(49.3) | 99.0 | 98.5 | 400 (37.2) | 31 |
| ULP-8040-HR | 10500(39.8) | 99.3 | 99.0 | 400 (37.2) | 31 |
| ULP-4040 | 2800(10.6) | 99.0 | 98.5 | 78 (7.2) | 31 |
(a) Standard test conditions: 1500 ppm NaCl, 150 psi (1.03 MPa), 25°C, pH = 7-8, recovery rate 15%.
(b) The water production of a single membrane element may vary within the range of ±15%.
(c) Handling and cleaning limits
| Maximum operating pressure | 300psi(2.07MPa) | Allowable free chlorine concentration | 0.1ppm |
| Maximum water inlet temperature | 45℃ | Water inlet range during continuous operation | 3~10 |
| Maximum water flow | 17.0m3/h (8040), 3.6m3/h (4040) | Water inlet range during chemical cleaning | 1~12 |
| Maximum water inlet | 5 | Maximum allowable pressure drop of a single membrane element | 15 psi (0.1 MPa) |
