Anti Pollution Reverse Osmosis FR Series Membrane Elements
Product Details:
| Place of Origin: | China |
| Brand Name: | China brand |
| Certification: | CE |
| Model Number: | Anti-pollution reverse osmosis FR series |
| Document: | _RO-membranes.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc（This product can be produced with your brand on bulk order） |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Payment Terms: | ,T/T |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| The Type Of Membrane: | Anti-pollution | The Series Of This Product: | FR Series |
|---|---|---|---|
| Brand: | China Brand | Model: | FR-8040/FR-4040 |
| Standard Water Production GPD (m3/d): | 10500 (39.8)/2400(9.0) | Stable Desalination Rate (%): | 99.5 |
| Minimum Desalination Rate (%): | 99.3 | ||
| Highlight: | FR reverse osmosis membrane elements,anti-pollution reverse osmosis membrane elements |
||
Product Description

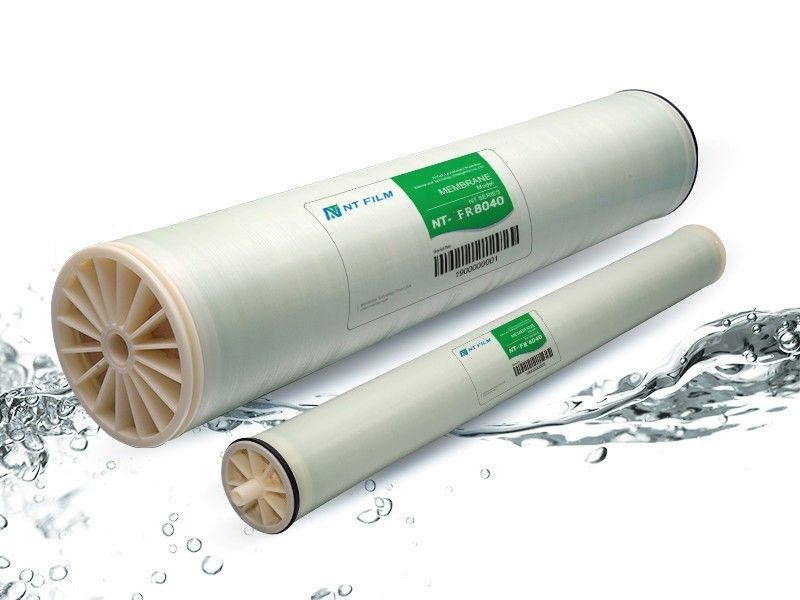

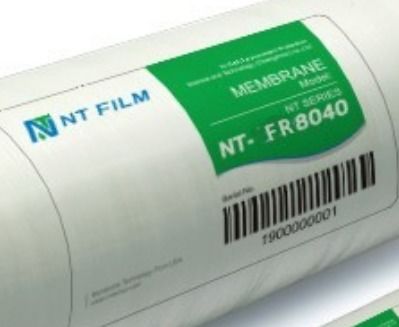

Anti-pollution reverse osmosis FR series membrane elements
Product Details
(1) Product positioning
FR series membrane elements are suitable for desalination of water with medium salinity (TDS < 10000 mg/L) and can be widely used in various scales of water reuse, especially for the treatment of industrial wastewater containing a small amount of organic pollutants and slightly polluted water sources.
(2) Product features
A special membrane-making process is used to improve the hydrophilicity, charge and roughness of the membrane surface, thereby reducing the growth and adsorption of pollutants and microorganisms on the membrane surface; at the same time, the low-pressure difference 34mil wide water inlet flow channel design can effectively reduce the accumulation of pollutants on the grid, further enhancing the anti-pollution and cleanability of the membrane element.
(3) Product performance
| model | Average water production GPD (m3/d) |
Stable desalination rate (%) |
Minimum desalination rate (%) |
Effective membrane area ft2 (m2) |
Inlet grid thickness (mil) |
| FR-8040 | 10500 (39.8) | 99.5 | 99.3 | 400 (37.2) | 34 |
| FR-4040 | 2400 (9.0) | 99.5 | 99.3 | 85 (7.9) | 34 |
(a) Standard test conditions: 2000 ppm NaCl, 225 psi (1.55 MPa), 25°C, pH = 7-8, recovery rate 15%.
(b) The water production of a single membrane element may vary within the range of ±15%.
(c) Handling and cleaning limits
| Maximum operating pressure | 600 psi (4.14MPa) | Allowable free chlorine concentration | ˂ 0.1 ppm |
| Maximum water inlet temperature | 45℃ | Inlet water pH range during continuous operation | 3~10 |
| Maximum water flow | 17.0m3/h (8040), 3.6m3/h (4040) | pH range of influent water during chemical cleaning | 1~12 |
| Maximum water inlet SDI15 | 5 | Maximum allowable pressure drop of a single membrane element | 15 psi (0.1 MPa) |
