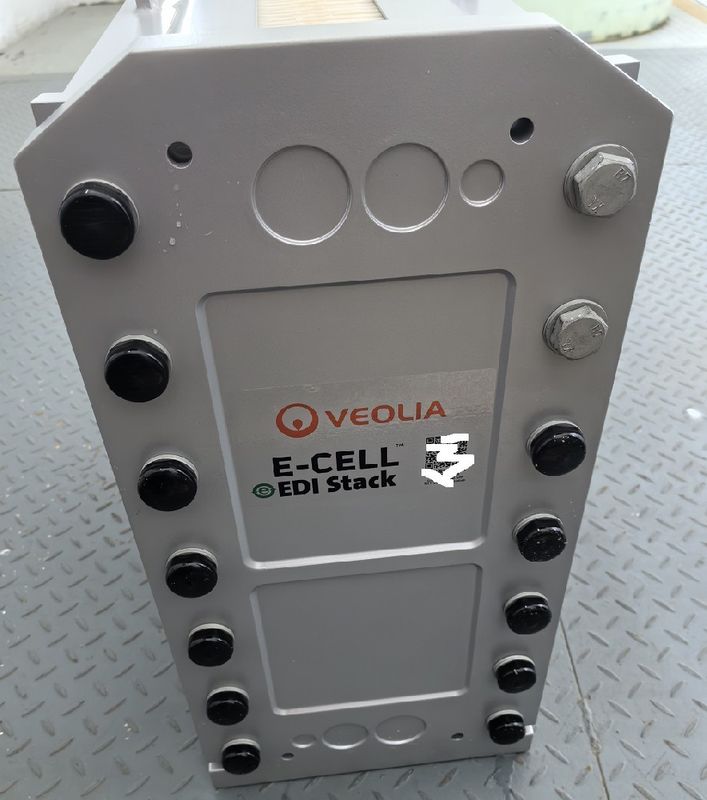

Veolia EDI Stacks MK-3 Ultra-Reliable For Continuous High Purity Water
Product Details:
| Place of Origin: | China |
| Brand Name: | VEOLIA |
| Certification: | CE |
| Model Number: | Veolia EDI Modules E-Cell MK-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| This Stack Shipping Weight(kg): | 92 | This Stack Dimensions (cm As Width X Height X Depth): | 30 X 61 X 54 |
|---|---|---|---|
| Stack Total Exchangeable Anions (ppm As CaCO3 ): | < 25 | Stack Conductivity (μS/cm): | < 43 |
| Stack Silica (SiO2) Of This Stack: | As Low As 5 Ppb | This Stack PH: | 4-11 |
| Temperature (°C): | 4.4-40 | Hardness (ppm As CaCO3 ): | < 1.0 |
| Maximum Water Production (m3 /hr): | 4.5 | Minimum Water Production (m3 /hr): | 1.7 |
| Application Of This Model: | Continuous High-Purity Water | ||
| Highlight: | High Purity Water EDI Stacks,Continuous High Purity Water EDI Stacks |
||
Product Description
Veolia EDI Stacks MK-3: Ultra-Reliable For Continuous High-Purity Water
The Veolia EDI Stacks MK-3 redefine electrodeionization (EDI) technology, delivering unmatched operational efficiency, zero chemical dependency, and industrial-grade durability for industries requiring uninterrupted ultra-pure water. Designed to replace traditional ion exchange systems, the MK-3 stacks combine innovation with sustainability, slashing operational costs while ensuring compliance with the strictest purity standards.
Core Advantages:
⚡ Chemical-Free Operation: Eliminates hazardous acid/alkali regeneration, reducing environmental risks and operational complexity.
⚡ High-Efficiency Performance: Advanced ion-selective membranes and optimized electrical field design achieve >99.9% ion removal, producing water with resistivity up to 18.2 MΩ·cm.
⚡ Robust & Long-Lasting: Corrosion-resistant materials and reinforced stack architecture withstand high conductivity feedwater (up to 50 µS/cm) and temperatures up to 45°C, ensuring 10+ years of reliable service.
⚡ Smart Anti-Scaling Technology: Auto-polarity reversal and scale-inhibiting spacers prevent fouling, minimizing downtime and maintenance.
⚡ Modular Scalability: Flexible configuration supports flow rates from 1 m³/h to 100 m³/h, ideal for both small labs and large industrial plants.
Key Specifications:
- Output Quality: 15–18.2 MΩ·cm resistivity (depending on pretreated feedwater).
- Operating Pressure: ≤4 bar (58 psi).
- Recovery Rate: Up to 95%, reducing wastewater generation.
- Certifications: Compliant with FDA, cGMP, ISO 14001, and IEC 61010 standards.
Applications:
✅ Pharmaceuticals: USP/EP-grade water for injection (WFI) and bioprocessing.
✅ Microelectronics: Ultra-pure water for semiconductor fabrication and PCB manufacturing.
✅ Power Generation: High-purity feedwater for boilers, turbines, and nuclear reactors.
✅ Chemical Production: Solvent preparation and catalyst systems requiring contaminant-free water.
Why Choose Veolia EDI Stacks MK-3?
For industries prioritizing sustainability, cost control, and regulatory compliance, the MK-3 stacks are a game-changer. By eliminating chemical handling, reducing energy consumption by 30%, and guaranteeing consistent purity, Veolia empowers you to meet stringent quality demands while advancing ESG goals.
Transform your water purification strategy with Veolia’s MK-3 – where innovation flows pure.
Please see below for detailed parameters
Parameter data
The following figure shows GE, Suez and Veolia from left to right (all the same product: Veolia EDI Module)
Typical Applications of the E-Cell MK-3 Stack
The ultrapure water produced by the E-Cell MK-3 Stack reliably meets the stringent requirements of today's most demanding applications, including:
* Ultrapure water for rinsing semiconductor chips, solar panels, and other microelectronics components.
* Demineralized boiler feed water for high-pressure boilers utilized in power plants and other heavy industrial facilities.
To simplify the design process and further enhance confidence in your EDI application, E-Cell performance projections and guarantees are conveniently accessible through the Winflows* software or by directly contacting we.
Quality Assurance for the E-Cell MK-3 Stack
The E-Cell MK-3 Stack is backed by comprehensive quality assurance measures, ensuring its reliability and safety in diverse applications. Here are the key quality assurances associated with this product:
* It carries the CE, RoHS, CSA, and EAC markings, signifying compliance with international safety and environmental standards.
* The stack is manufactured in a facility that adheres to ISO 9001 and ISO 14001, two globally recognized standards for quality management and environmental responsibility.
* It is certified with UKCA, demonstrating conformity with the essential health and safety requirements set by the United Kingdom.
* The E-Cell MK-3 Stacks have been awarded Halal certification by the Islamic Food and Nutrition Council of America (IFANCA®), indicating their compliance with the dietary regulations of the Muslim community.
These quality assurances provide customers with the confidence that the E-Cell MK-3 Stack meets rigorous standards in terms of safety, reliability, and environmental sustainability.
Notes:
1. Actual performance may vary based on site conditions. Refer to Winflows Prediction Software to verify expected product water quality and the resistivity, sodium and silica performance guarantees provided at design conditions. Contact us for boron or other guarantees.
2. Inlet pressure is determined by downstream pressure requirements for product and concentrate streams, choice of countercurrent or cocurrent operation, and stack pressure drop.
3. At nominal flow and 25°C. Refer to Winflows Prediction Software to verify design conditions.
4. Refer to Winflows Prediction Software and the E-Cell Stack Operating Manual to verify feedwater specifications at design conditions.
5. TEA (ppm as CaCO3) - Total Exchangeable Anions, this represents the concentration of all anions in the feedwater, including contributions from OH-, CO2 and SiO2. Winflows must be used to confirm that the feedwater TEA is acceptable at the given application operating conditions. Tabulated values are given at minimum flow and maximum temperature.
6. The 1.0 ppm feedwater hardness limit as CaCO3 is for standard countercurrent operation only. Under co-current operation, the allowable feed water hardness is reduced to 0.1 ppm as CaCO3.
7. At rates above nominal flow, the allowable silica limit is reduced. When feed water hardness exceeds 0.5 ppm as CaCO3, the allowable silica limit is reduced to 0.5 ppm.
8. When a silica guarantee requirement exists or a resistivity guarantee requirement is above 10 MOhm-cm, the boron feed level is limited to 0.3 ppm as B, as higher boron levels may affect performance. In the absence of these requirements, the limit is 1.0 ppm boron.
9. Reverse Osmosis (RO) or Equivalent Feed Water: RO provides feed water to the EDI that is essentially free of particulate matter, colloidal materials, and high molecular weight organic matter that could foul the ion exchange media. Because the EDI stack contains packed beds of ion exchange media that cannot be backwashed/fluidized to remove particulate matter, the quality of the RO permeate needs to be specified. Systems with an open system between the RO system (or other source) and the E-Cell (e.g., storage tank, decarbonator) must have a filter installed immediately before the E-Cell to protect the E-Cell from contamination by particulate matter. Generally, a 5µm absolute filter or 1µm nominal filter is acceptable.
APHA - Color standard/scale named after the American Public Health Association and defined by ASTM.
For more models, please click: https://www.fgwater.com/Veolia-Electrodeionization-EDI-Stack-Module/389.html
E-Cell EDI Technology Performance Examples
E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.
For application cases, please click:https://www.fgwater.com/Industries/
