PVDF Dow UF Membranes SFP 2880xp / SFD 2880xp For Improving System Recovery Rate
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE |
| Model Number: | SFP 2880XP and SFD 2880XP |
| Document: | SFP-2860XP, SFD-2860XP, SFP...XP.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Module Diameter: | 8 Inch | Module Membrane Area: | 77 M² |
|---|---|---|---|
| Material Of This Module: | PVDF | Module Flow Range Per Module: | 2.0 – 8.5 M³/hr |
| Nominal Pore Diameter Of This Product: | 0.03 µm | Operating Pressure Of This Module: | 1-5 Bar |
| Max. Operating TMP Of This Module: | 2.1 Bar | Max Operating Air Scour Flow Of This Module: | 12 Nm3/hr |
| NaOCl (max.)of This Module: | 2,000 Mg/L | Certifications: | ISO 9001, NSF, CE |
| Function: | Improve The System Recovery Rate Effectively | Advantages: | High Permeability, High Mechanical Strength |
| Highlight: | SFD 2880xp Dow UF Membranes,SFP 2880xp Dow UF Membranes,PVDF Dow UF Membranes |
||
Product Description
PVDF Dow UF Membranes SFP 2880xp / SFD 2880xp For Improving The System Recovery Rate
1. Not easy to scale: membrane components made of H-PVDF material.
2. Excellent filtration performance and high flux.
3. Durable double-skin fiber scaling provides good durability and damage resistance.
4. Very small pore size.
5. High removal rate for bacteria and viruses.
6. Both full-flow and cross-flow filtration.
7. External pressure structure provides low blocking rate, high pollution load, large flux and easy cleaning.
8. Simple, vertical and modular design makes the system more affordable and compact.
Product Specifications

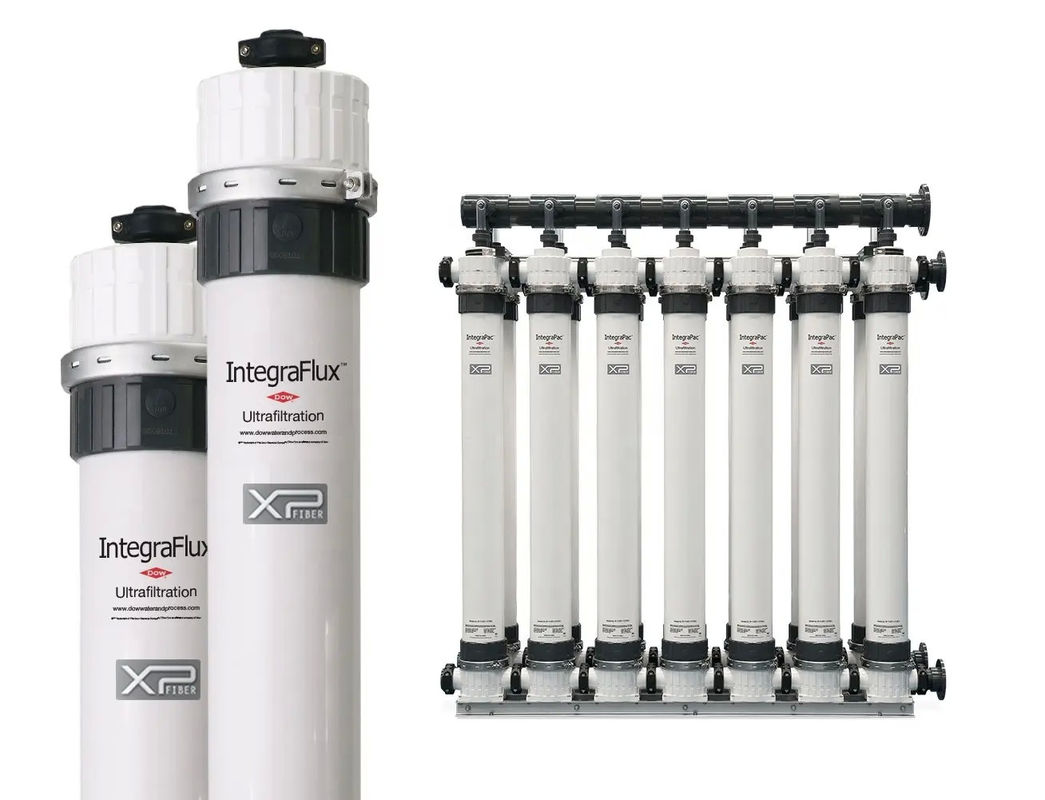

Figure 1: SFP and SFD 2880XP (8-inch diameter)
Operating Parameters
The difference between 28XX and 26XX
MODULE INSTALLATION
For application cases, please click:https://www.fgwater.com/Industries/
