High Permeability Dow UF Membranes SFP 2880xp / SFD 2880xp For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE |
| Model Number: | SFP 2880XP and SFD 2880XP |
| Document: | SFP-2860XP, SFD-2860XP, SFP...XP.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Model Diameter: | 8 Inch | Model Membrane Area: | 77 M² |
|---|---|---|---|
| Model Membrane Material: | PVDF | Model Flow Range Per Module: | 2.0 – 8.5 M³/hr |
| Nominal Pore Diameter Of This Model: | 0.03 µm | Product Operating Pressure: | 1-5 Bar |
| Max. Operating TMP Of This Model: | 2.1 Bar | Max Operating Air Scour Flow Of This Model: | 12 Nm3/hr |
| NaOCl (max.)of This Model: | 2,000 Mg/L | Main Certifications: | ISO 9001, NSF, CE |
| Application: | Industrial | Advantages: | High Permeability, High Mechanical Strength |
| Highlight: | SFP 2880xp Dow UF Membranes,High Permeability Dow UF Membranes,Industrial Dow UF Membranes |
||
Product Description
High Permeability Dow UF Membranes SFP 2880xp / SFD 2880xp For Industrial
IntegraFluxTM ultrafiltration membrane achieves industry-leading permeability performance, which can achieve up to 70% improvement in system operation and water production efficiency.
The IntegraFlux membrane module with innovative XP membrane fiber technology has ultra-high permeability performance and can achieve industry-leading water production efficiency.
The IntegraFlux membrane module with ultra-high membrane area (77m2) and compact device design (IP) can achieve industry-leading water production efficiency per unit area.
The IntegraFlux membrane module with XP membrane fiber technology can effectively improve the system recovery rate, reduce wastewater discharge, and reduce energy consumption to improve the operating efficiency of the entire system.
Product Specifications

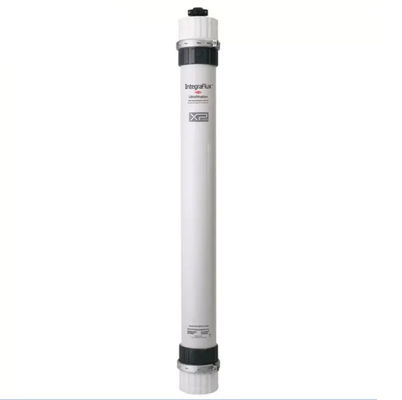

Figure 1: SFP and SFD 2880XP (8-inch diameter)
Operating Parameters
The difference between 28XX and 26XX
MODULE INSTALLATION
For application cases, please click:https://www.fgwater.com/Industries/
