Dead end Filtration Ultrafiltration UF Membrane Module UF3OA225
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhaojin Motian |
| Certification: | CE |
| Model Number: | UF₃OA225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Model: | UF₃OA225(L) | Material: | PVDF(Polyvinylidene Fluoride) |
|---|---|---|---|
| Membrane Surface Area: | 55m²(592ft²) /75m²(807.3ft²) | Pore Size: | 0.03µm |
| Module Maximum Water Inlet Pressure: | 0.2MPa | Module Molecular Weight Cutoff: | 100,000Dal |
| Module Fiber Inner/outer Diameter: | 0.7/1.2mm | Module Maximum Transmembrane Pressure Difference: | 0.15MPa |
| Module Operating Temperature Range: | 5-45°C | Product Feature: | Dead-end Filtration |
| Highlight: | Dead-end Filtration UF Membrane Module,UF3OA225 UF Membrane Module,Dead-end Filtration Ultrafiltration Membrane Module |
||
Product Description

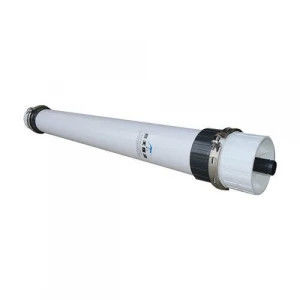

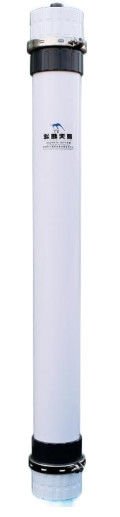

Dead-end Filtration Ultrafiltration (UF) Membrane Module UF₃OA225
Pressurized Outside to In / Dead-end Filtration Ultrafiltration (UF) Membrane Module
PVDF hollow fibre membranes prepared by Membrane Sky's proprietary hydrophilic modification process are characterised by high flux, high hydrophilicity, resistance to pharmaceutical cleaning and contamination resistance. Wise Water series of external pressure membrane modules have excellent product performance, can effectively remove suspended solids, colloids and microorganisms in water, and are widely used in groundwater and surface water purification, wastewater treatment and water reuse, and seawater desalination pre-treatment and other fields.
· Simple preprocessing
Excellent runner design broadens the influent water conditions.
· Long cleaning cycle
Strong pollution resistance, long decay period, good drug resistance, easy to clean and restore.
· Long service life
Membrane filament strength is high, continuous filament, permanent hydrophilic, slow flux decay.
· Safe and reliable water production
Mean aperture structure, large water production flux, wide range of adaptation to raw water quality.
· Low operating cost
Super hydrophilic modification, fast infiltration, less agent demand, thorough cleaning.
| Dimensions and Weight | Unit | Value |
| Diameter | mm (in) | 225(8.86) |
| Length | mm (ft) | 1860(6.10) |
| Weight | kg (lbs) | 55(121.3) |
| Material Specifications | |
| Description | Material |
| Casing | uPVC |
| Cap | uPVC |
| Potting | Epoxy resin |
| O-ring | EPDM |
About Us
FG Water Technologies (www.fgwater.com) is now an organic part of Wuxi Fenigal Science and Technology Co. Ltd., which is a high-tech entity integrating water treatment quipment design, manufacturing, trading and shipment served for main industrial sectors.
HAFE-FG Water Technologies has focused on the research of water treatment technology, equipment development and manufacturing, testing and international shipment etc. We work with many leading large-scale or small-medium original equipment manufacturers in China High-tech Development Zones, and engaged ourselves in R&D, manufacturing, and quality testing.
Our main products include a variety of water purification and different treatment equipment, such as seawater reverse osmosis (SWRO) system, brackish water rever osmosis (BWRO), ultrafiltration (UF)system, Electrodeionization/EDI equipment, media pressure filters and ion exchanger softeners. So far, our company has become a major water treatment equipment supplier for food and beverage industry, pharmaceutical industry, chemical industry, electric power industry, urban water supply industry, municipal and industrial wastewater treatment and more industries, as well as being an exporter to more than 20 countries and regions in Asia, Europe, the Americas, Africa, etc.
OUR CLIENTS
INDUSTRIES SERVED
PRODUCTION SYSTEM
Our production system consist of a list of industry-specialized partnership factories accross China. Some of them singularly cover an area of over 10,000 square meters, including 5,000 square meters of workshop and warehouse and 1,500 square meters of office buildings. All of our technical staff has more than 10 years of experience in the design of water treatment systems, so we are able to provide the perfect solution for all kinds of water purification and sewage treatment applications.
Since the establishment, the Company has always regarded quality as the life of our business. We choose the best components only for the production of various water treatment systems. Our systems are easy to use and maintain, and they stays highly reliable even under toughest conditions.
Our FACTORY
Want to Know more details about this product
