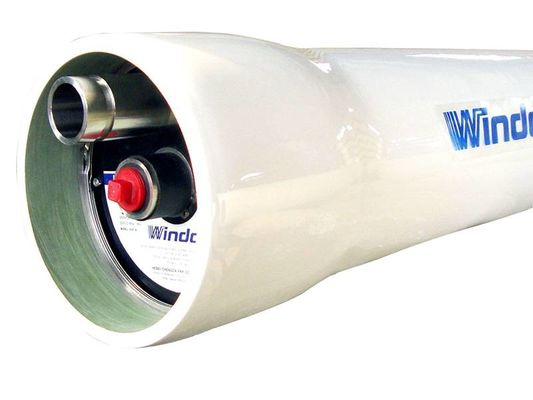

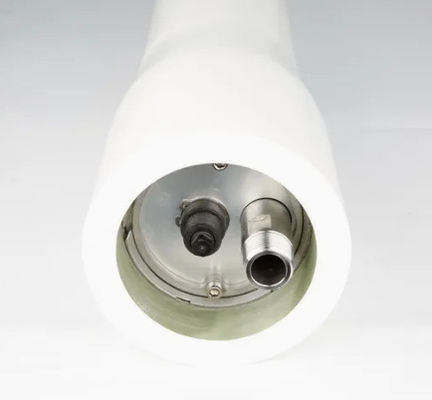

WF8001–End Port
 |
8" 300–1200 PSI FRP Membrane Housing Applicable To Multiple Standard Membrane Element
Product Details:
| Place of Origin: | China |
| Brand Name: | Winder |
| Certification: | CE |
| Model Number: | 8" FRP Membrane Housing |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Name: | FRP Membrane Housing, FRP Pressure Vessel. | Membrane Housing Material: | Fiberglass And Epoxy |
|---|---|---|---|
| Product Connection Type: | End Port, Side Port, Multi-port Optional | Application: | Metallurgy & Petrochemical& Beverage& Chemical |
| Burst Test: | 6 Times Of Its Design Pressure | Hydraulic Test: | 100% Quality Assurance Test With 1.2 Times Stage Elevation |
| Barcol Hardness Test: | Repeated Once Every 1.5 Meters | ||
| Highlight: | 8” FRP Membrane Housing,Multiple Standard Membrane Element Housing,1200 PSI FRP Membrane Housing |
||
Product Description

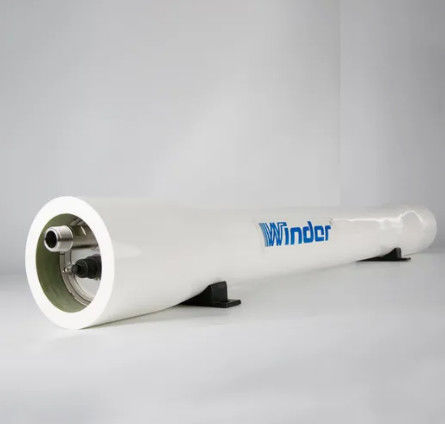

8" 300–1200 PSI FRP Membrane Housing Are Applicable To Multiple Standard Membrane Element
8" FRP membrane housing adopt upscale baking polyurethane coated is non-corrosive & anti-rust and assures beautiful and attractive appearance. Applicable in a widely range of working pressure from 150 PSI to 1200 PSI and capable of built-in membrane elements 1–8 section.
FRP membrane housing are applicable to multiple standard membrane element, E.g. Filmtec, Hydranautics, Osmonics, Koch, Toray, CSM, Vontron and BDX, etc. And non-standard products could be tailor-made to meet the satisfaction of your special projects.
There are three different connection types, one is end entry design and the other is side entry design for you to choose. Besides, the size and quantity of inlet/outlet can be selected.
Feature
- Burst test: 6 times of its design pressure.
- Cycle test: 100000 times.
- Hydraulic test: 100% quality assurance test with 1.2 times stage elevation.
- Barcol hardness test: repeated once every 1.5 meters.
- Test every membrane housing, not sampling.
- Standard and non-standard are all available.
Specification
-
NameFRP membrane housing, FRP pressure vessel.
-
MaterialFiberglass and epoxy.
-
Connection type
End port, side port, multi-port optional.
WF8002–Side Port
-
Working pressure300–1000 PSI.
-
Operating temperature-10 °C–49 °C.
-
Operating pH range3–11.
-
Cleaning pH range2–12 (≤ 30 min).
-
ProcessWinded.
-
ColorWhite, original, blue, yellow, fruit green or customized
-
PackageUse wooden box package or rigid cardboard package.

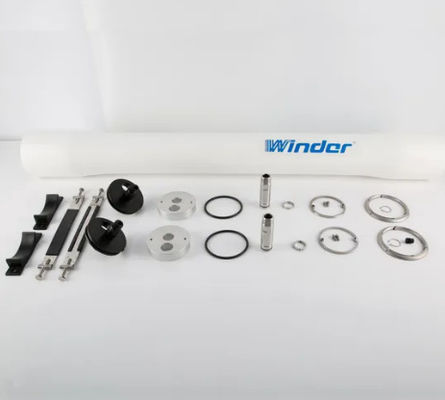

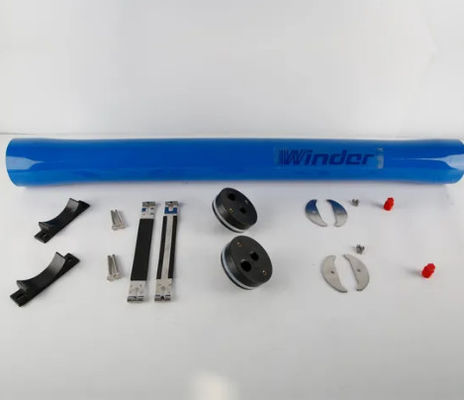

Components
| Model No. | Design pressure (PSI) |
Operating temperature | Connection | Element length |
|---|---|---|---|---|
| End Entry | ||||
| W80E150 | 150 | -10 °C–49 °C | End port | 40" × (1–8) |
| W80E300 | 300 | -10 °C–49 °C | End port | 40" × (1–8) |
| W80E450 | 850 | -10 °C–49 °C | End port | 40" × (1–8) |
| W80E600 | 600 | -10 °C–49 °C | End port | 40" × (1–8) |
| W80E1000 | 1000 | -10 °C–49 °C | End port | 40" × (1–8) |
| W80E1200 | 1200 | -10 °C–49 °C | End port | 40" × (1–8) |
| Side Entry | ||||
| W80S150 | 150 | -10 °C–49 °C | Side port | 40" × (1–8) |
| W80S300 | 300 | -10 °C–49 °C | Side port | 40" × (1–8) |
| W80S450 | 850 | -10 °C–49 °C | Side port | 40" × (1–8) |
| W80S600 | 600 | -10 °C–49 °C | Side port | 40" × (1–8) |
| W80S1000 | 1000 | -10 °C–49 °C | Side port | 40" × (1–8) |
| W80S1200 | 1200 | -10 °C–49 °C | Side port | 40" × (1–8) |
