WF4001–End Port
 |
4" Fiberglass And Epoxy Membrane Housing – Smooth Inner Surface Colorful Appearance
Product Details:
| Place of Origin: | China |
| Brand Name: | Winder |
| Certification: | CE |
| Model Number: | 4" FRP Membrane Housing |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Product Material: | Fiberglass And Epoxy | Product Working Pressure: | 300–1000 PSI |
|---|---|---|---|
| Product Membrane Housing Diameter: | 4" | Product Operating Temperature: | -10 °C–49 °C |
| Process: | Winded | Product Operating PH Range: | 3–11 |
| Product Cleaning PH Range: | 2–12 (≤ 30 Min) | Color: | White, Original, Blue, Yellow, Fruit Green Or Customized |
| Package: | Use Wooden Box Package Or Rigid Cardboard Package. | ||
| Highlight: | Colorful Appearance Membrane Housing,4” Membrane Housing,Fiberglass Membrane Housing |
||
Product Description

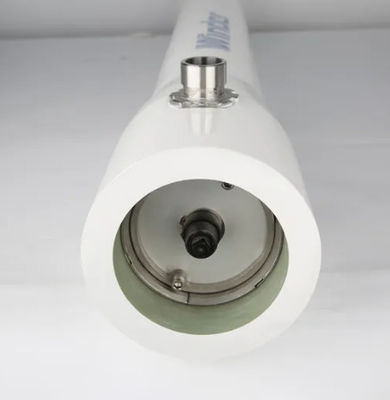

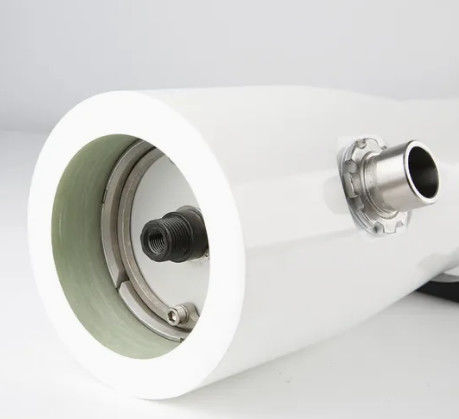

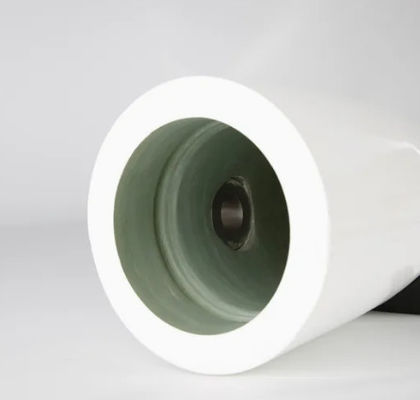

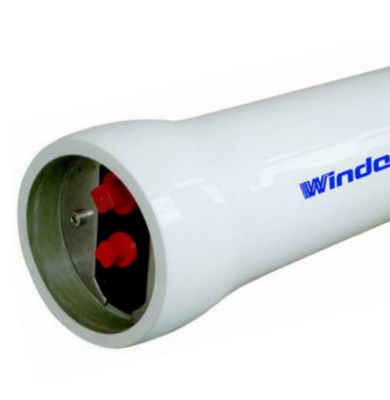

4" FRP Membrane Housing – Smooth Inner Surface, Colorful Appearance
4" FRP membrane housing is used for accommodating reverse osmosis membrane elements and generates a high pressure environment for reverse osmosis operation. It adopts special processing technology to make the inner surface of FRP membrane housing more smooth. What's more, polyurethane coating ensures the brightness of FRP membrane housing.
FRP membrane housing are applicable to multiple standard membrane element, E.g. Filmtec, Hydranautics, Osmonics, Koch, Toray, CSM, Vontron and BDX, etc. And non-standard products could be tailor-made to meet the satisfaction of your special projects.
More importantly, to ensure that the product has a longer service life and higher safety, all finished products can stand more than 10 0000 times of fatigue test and pressure test.
Feature
- Burst test: 6 times of its design pressure.
- Cycle test: 100000 times.
- Hydraulic test: 100% quality assurance test with 1.2 times stage elevation.
- Barcol hardness test: repeated once every 1.5 meters.
- Test every membrane housing, not sampling.
- Standard and non-standard are all available.
Specification
-
NameFRP membrane housing, FRP pressure vessel.
-
MaterialFiberglass and epoxy.
-
Connection type
End port, side port, multi-port optional.
WF4002–Side Port
-
Working pressure300–1000 PSI.
-
Operating temperature-10 °C–49 °C.
-
Operating pH range3–11.
-
Cleaning pH range2–12 (≤ 30 min).
-
ProcessWinded.
-
ColorWhite, original, blue, yellow, fruit green or customized
-
PackageUse wooden box package or rigid cardboard package.

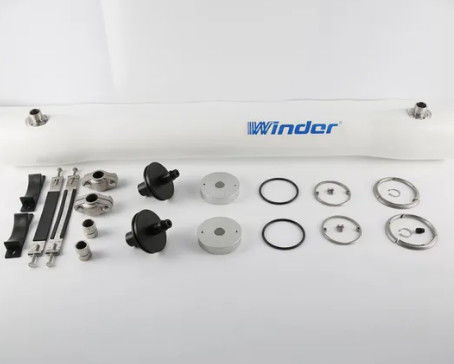

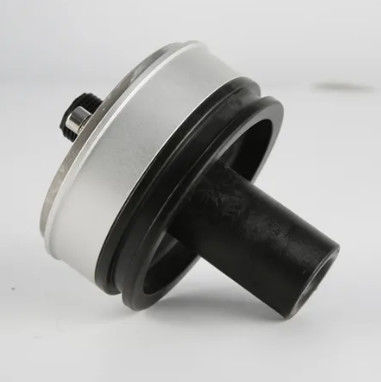

Components
