Product Details:

Place of Origin: China
Brand Name: Winder
Certification: CE
Model Number: 2.5" FRP Membrane Housing

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 5- 8 work days
Supply Ability: 60000 Units per Month
Get Best Price Contact Now

Detail Information

Material: Fiberglass And Epoxy Working Pressure: 300–1000 PSI
Membrane Housing Diameter: 2.5" Operating Temperature: -10 °C–49 °C
Connection Type: End Port Operating PH Range: 3–11
Cleaning PH Range: 2–12 (≤ 30 Min) Burst Test: 6 Times Of Its Design Pressure.
Cycle Test: 100000 Times
Highlight:

300–1000 PSI FRP Membrane Housing

,

2.5” FRP Membrane Housing

,

End Port FRP Membrane Housing

Product Description

2.5" FRP Membrane Housing – Maximum Pressure: End Port, 300–1000 PSI

 2.5" FRP membrane housing also called FRP pressure vessel, is a preferred choice for commercial and industrial water purification in membrane process. It is a cylindrical housing that made of fiberglass and epoxy, applicable in a widely range of working pressure, from 300 psi to 1000 psi. and capable of loading the membrane elements of 14", 21" and 40". Designed with SS304 crescent shaped lock plate that ensures the head installation is more simple and safe.

FRP membrane housing are applicable to multiple standard membrane element, E.g. Filmtec, Hydranautics, Osmonics, Koch, Toray, CSM, Vontron and BDX, etc.

Non-standard products could be tailor-made to meet the satisfaction of your special projects.

2.5" FRP Membrane Housing – Maximum Pressure End Port 300–1000 PSI 0

Feature

  • Burst test: 6 times of its design pressure.
  • Cycle test: 100000 times.
  • Hydraulic test: 100% quality assurance test with 1.2 times stage elevation.
  • Barcol hardness test: repeated once every 1.5 meters.
  • Test every membrane housing, not sampling.
  • Standard and non-standard are all available.

Specification

  • Name
    FRP membrane housing, FRP pressure vessel.
  • Material
    Fiberglass and epoxy.
  • Working pressure
    300–1000 PSI.
  • Operating temperature
    -10 °C–49 °C.
  • Connection type
    End port.
  • Operating pH range
    3–11.
  • Cleaning pH range
    2–12 (≤ 30 min).
  • Process
    Winded.
  • Color
    White, original, blue, yellow, fruit green or customized.
  • Package
    Use wooden box package or rigid cardboard package.



Drawing



Winder-W25E300

2.5" FRP Membrane Housing – Maximum Pressure End Port 300–1000 PSI 1

Winder-W25E1000

2.5" FRP Membrane Housing – Maximum Pressure End Port 300–1000 PSI 2

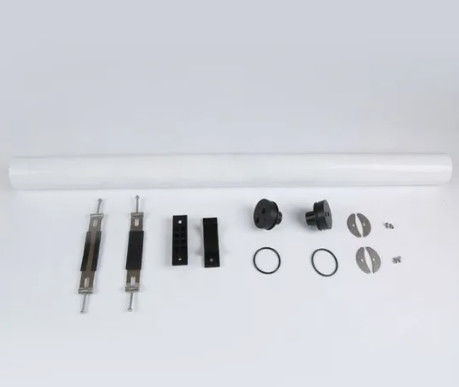

Components

2.5" FRP Membrane Housing – Maximum Pressure End Port 300–1000 PSI 3

2.5" FRP Membrane Housing – Maximum Pressure End Port 300–1000 PSI 4





Table 1: 2.5" Membrane Housing Specification
Model No. Design pressure
(PSI)
Operating temperature Connection Element length
W2514E300 300 -10 °C–49 °C End port 14" × 1
W2521E300 300 -10 °C–49 °C End port 21" × 1
W2540E300 300 -10 °C–49 °C End port 40" × 1
W2514E1000 1000 -10 °C–49 °C End port 14" × 1
W2521E1000 1000 -10 °C–49 °C End port 21" × 1
W2540E1000 1000 -10 °C–49 °C End port 40" × 1
