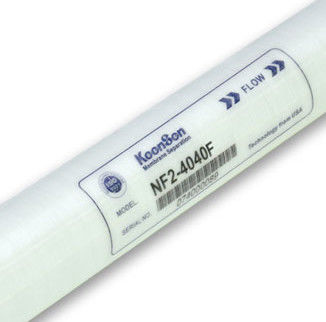

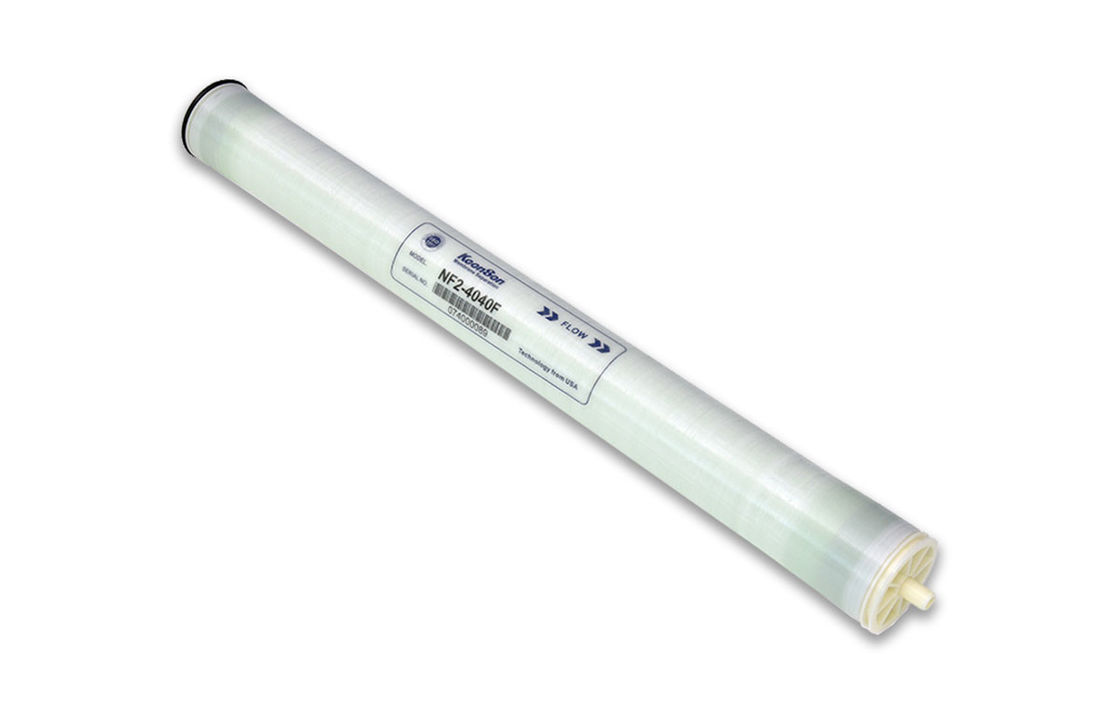

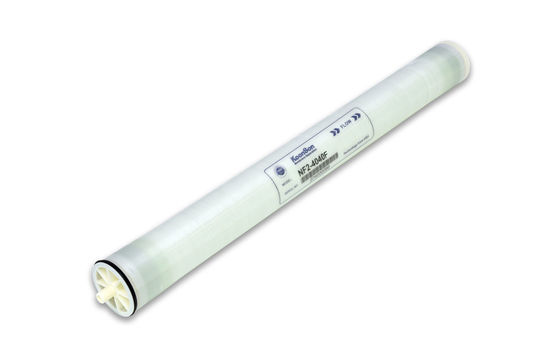

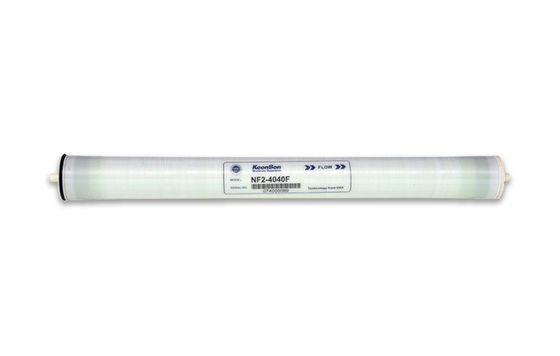

Material Separation Nanofiltration Membrane Element NF2-4040F Good Restoration After Cleaning
Product Details:
| Place of Origin: | China |
| Brand Name: | Keensen |
| Certification: | ISO9001,NSF |
| Model Number: | NF2-4040F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Main Feature: | Low Working Pressure And Good Restoration After Cleaning | Max.Working Pressure Conditions: | 600 Psi(4.14MPa) |
|---|---|---|---|
| Max. FeedWater Temperature Conditions: | 45 ℃ | Max. Feed Water Flow Conditions: | 3.6m3/h |
| Max. FeedWaterSDI15 Conditions: | 5.0 | Free Chlorine Concentration Of FeedWater Conditions: | 0.1mg/L |
| PHRange Of FeedWaterDuring Continuous Operation Conditions: | 2-11 | PHRange Of FeedWaterDuring Chemical Cleaning Conditions: | 1-13 |
| Max. Pressure Drop Of Single Membrane Element Conditions: | 15psi(0.1Mpa) | ||
| Highlight: | Good Restoration Nanofiltration Membrane Element,Cleaning Nanofiltration Membrane Element,Material Separation Nanofiltration Membrane Element |
||
Product Description
Material Separation Nanofiltration Membrane Element NF2-4040F Good Restoration After Cleaning
1. Drinking water treatment
In the field of drinking water treatment, nanofiltration membranes can remove organic matter, inorganic ions, heavy metals and microorganisms in water to improve water quality. For example, heavy metal ions such as lead, mercury and copper contained in water are harmful to human health, and nanofiltration membranes can effectively remove these heavy metal ions. In addition, nanofiltration membranes can also remove organic pollutants in water, such as pesticides, antibiotics, endocrine disruptors, etc., to ensure the safety of people's drinking water.
2. Industrial wastewater treatment In the field of industrial wastewater treatment, nanofiltration membranes can be used as a deep treatment method to purify wastewater, recover valuable resources and reduce pollution to the environment. For example, in electroplating wastewater, nanofiltration membranes can remove heavy metal ions and other harmful substances; in chemical wastewater, nanofiltration membranes can remove impurities such as organic matter and inorganic salts.
3. Separation and purification of pharmaceutical and biological products
In the field of separation and purification of pharmaceutical and biological products, nanofiltration membranes can be used to separate and purify biological products such as proteins, enzymes, and cell cultures. Through the separation effect of nanofiltration membranes, these biological products can be separated from impurities to improve the purity and yield of the product.
4. Food and beverage processing In the field of food and beverage processing, nanofiltration membranes can be used to separate different components in materials such as juice, dairy products, and tea beverages. For example, in juice processing, nanofiltration membranes can separate beneficial ingredients such as fructose and vitamin C in juice from impurities such as pulp and peel; in tea beverage processing, nanofiltration membranes can separate beneficial ingredients such as tea polyphenols and amino acids in tea from impurities such as tea dregs.
It is applicable for the removal or concentration of dye, removal of heavy metal and the concentration and desalination of whey protein. It will intercept divalent ions and higher ions preferentially, the interception of monovalent ions will be affected by the liquid concentration. This membrane model was widely applied to the desalination and decoloration treatment on the raw water, such as surface water, landfill leachate, dyeing wastewater, coking plant waste water, etc.
| Model | Active Membrane Area ft2(m2) | Permeate Flow GPD(T/D) | Rejection Rate (%) 2000ppm MgSO4 |
| NF2-4040F | 78(7.2) | 2200(8.3) | 97 |
| Concentration of Solution (MgSO4) | Temperature(℃) | pH Value > | Operating Pressure psi(MPa) | Recovery Rate(%) |
| 2000ppm | 25 | 7.5-8 | 70(0.48) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. Feed Water Flow | 3.6m3/h |
| Max. FeedWaterSDI15 | 5.0 |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pHRange of FeedWaterDuring Continuous Operation | 2-11 |
| pHRange of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
|
|
Manufacturer, excellent strength
The membrane production process and automated production line introduced from the United States, with an annual production capacity of 3 million square meters of reverse osmosis membranes and nanofiltration membranes. The team has strong and unique R&D and innovation capabilities, and strong technical support can provide customers with customized industry solutions to meet customers' deep and multi-faceted needs.
Quality assurance, superior performance
The entire reverse osmosis membrane and nanofiltration membrane product production process is strictly carried out in accordance with ISO standards. All products are strictly tested with advanced testing equipment to ensure product performance and factory quality.
National qualifications, look for Qinsen Hi-Tech
It has more than 30 international and domestic invention patents, and has fully passed the ISO9001 quality system and national health safety product certification of national authoritative institutions, and the NSF certification of the National Health Foundation of the United States.
