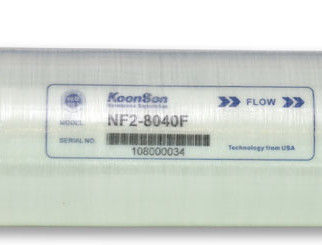

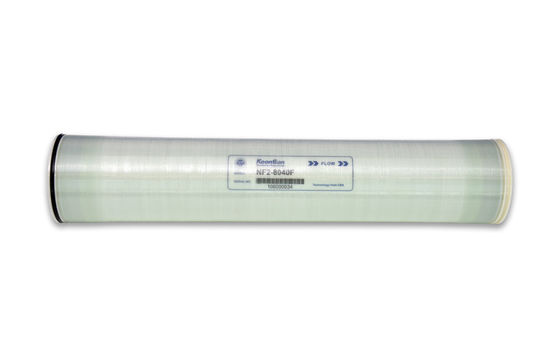

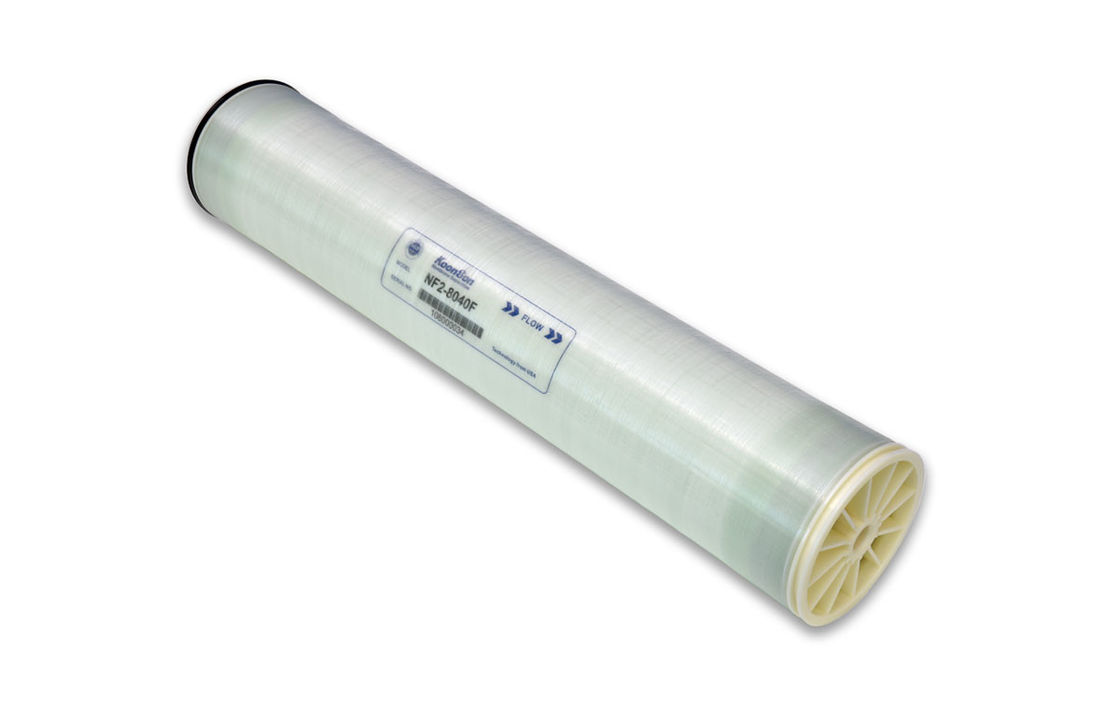

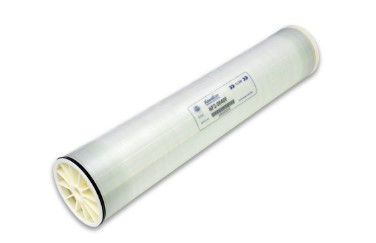

High Flux Material Separation Nanofiltration Membrane Element NF2-8040F
Product Details:
| Place of Origin: | China |
| Brand Name: | Keensen |
| Certification: | ISO9001,NSF |
| Model Number: | NF2-8040F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Model Series: | Industrial Series | Certification Of This Mebrane: | ISO9001,NSF |
|---|---|---|---|
| The Brand Of This Product: | Keensen | Product Active Membrane Area Ft2(m2): | 420(39.0) |
| Product Permeate Flow GPD(T/D): | 12000(45.4) | Product Rejection Rate (%) 2000ppm MgSO4: | 97 |
| Product Concentration Of Solution (MgSO4): | 2000ppm | Product Temperature（℃）: | 25 |
| Product Feature: | High Flux | ||
| Highlight: | NF2-8040F Nanofiltration Membrane Element,Material Separation Nanofiltration Membrane Element,High Flux Nanofiltration Membrane Element |
||
Product Description
High Flux Material Separation Nanofiltration Membrane Element NF2-8040F
1. High precision
The pore size of nanofiltration membrane is between 1 nanometer and 1000 nanometers, which can achieve efficient separation and concentration of high molecular compounds such as microorganisms, viruses, and proteins. Therefore, nanofiltration membranes are widely used in biotechnology, pharmaceutical chemicals, petrochemicals and other fields.
2. Simple operation
Nanofiltration membranes are easy to operate. You only need to inject the solution to be treated into the membrane shell and let the solute pass naturally through differential pressure or centrifugation to achieve efficient separation and concentration. Compared with traditional precipitation or ultrafiltration methods, nanofiltration membranes are more convenient to operate, and can also avoid steps such as repeated treatment of solutions.
It is applicable for the removal or concentration of dye, removal of heavy metal and the concentration and desalination of whey protein. It will intercept divalent ions and higher ions preferentially, the interception of monovalent ions will be affected by the liquid concentration. This membrane model was widely applied to the desalination and decoloration treatment on the raw water, such as surface water, landfill leachate, dyeing wastewater, coking plant waste water, etc.
| Model | Active Membrane Area ft2(m2) | Permeate Flow GPD(T/D) | Rejection Rate (%) 2000ppm MgSO4 |
| NF2-8040F | 420(39.0) | 12000(45.4) | 97 |
| Concentration of Solution (MgSO4) | Temperature(℃) | pH Value > | Operating Pressure psi(MPa) | Recovery Rate(%) |
| 2000ppm | 25 | 7.5-8 | 70(0.48) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. Feed Water Flow | 17.0m3/h |
| Max. FeedWaterSDI15 | 5.0 |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pHRange of FeedWaterDuring Continuous Operation | 2-11 |
| pHRange of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
|
|
Manufacturer, excellent strength
The membrane production process and automated production line introduced from the United States, with an annual production capacity of 3 million square meters of reverse osmosis membranes and nanofiltration membranes. The team has strong and unique R&D and innovation capabilities, and strong technical support can provide customers with customized industry solutions to meet customers' deep and multi-faceted needs.
Quality assurance, superior performance
The entire reverse osmosis membrane and nanofiltration membrane product production process is strictly carried out in accordance with ISO standards. All products are strictly tested with advanced testing equipment to ensure product performance and factory quality.
National qualifications, look for Qinsen Hi-Tech
It has more than 30 international and domestic invention patents, and has fully passed the ISO9001 quality system and national health safety product certification of national authoritative institutions, and the NSF certification of the National Health Foundation of the United States.
