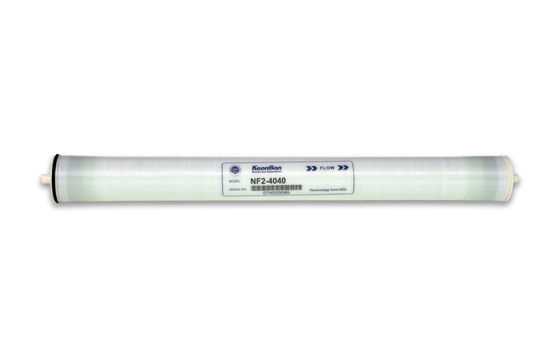

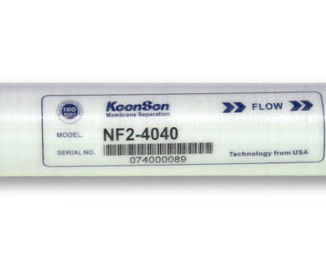

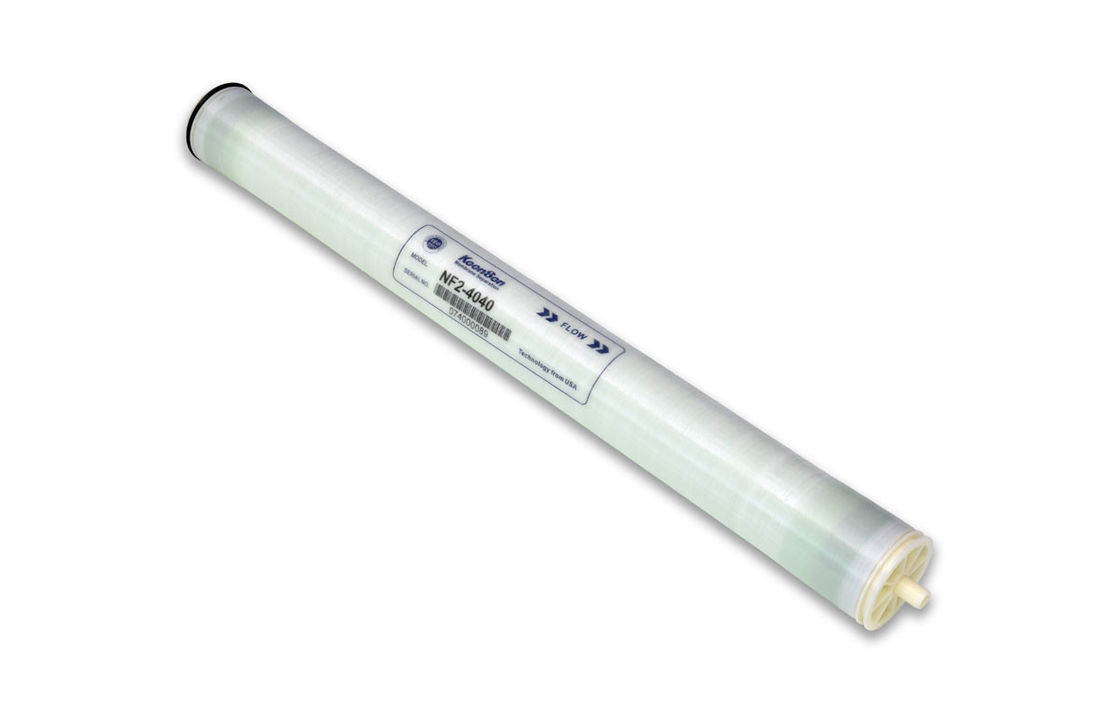

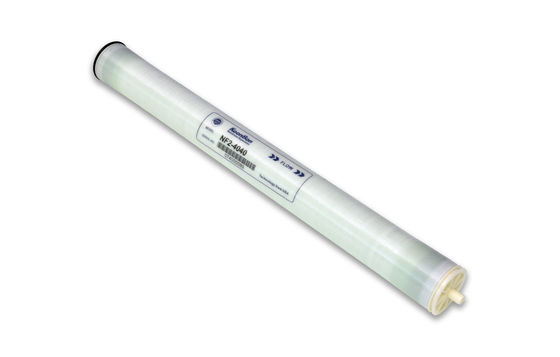

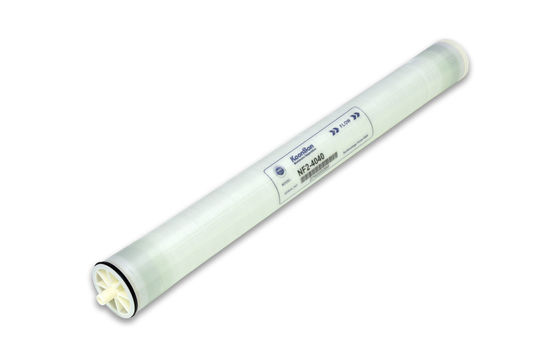

Low Working Pressure High Flux Nanofiltration(NF) Membrane Element-NF2-4040
Product Details:
| Place of Origin: | China |
| Brand Name: | Keensen |
| Certification: | ISO9001,NSF |
| Model Number: | NF2-4040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Features: | Low Working Pressure | Origin Of This Model: | China |
|---|---|---|---|
| Certification Of This Model: | ISO9001,NSF | Brand Of This Membrane: | Keensen |
| Model Specification: | NF2-8040 | Active Membrane Area Specification Ft2(m2): | 85(7.9) |
| Permeate Flow GPD Specification(m3/d): | 2600(9.8) | Stable Rejection Rate Specification (%): | 30-50 |
| Solution Type Of This Model: | NaCl | ||
| Highlight: | NF2-4040 Nanofiltration Membrane Element,Low Working Pressure Nanofiltration Membrane Element,High Flux Nanofiltration Membrane Element |
||
Product Description
Low Working Pressure High Flux Nanofiltration(NF) Membrane Element-NF2-4040
1. Pore size control: The pore size of the nanofiltration membrane is about 1-2 nanometers, which enables it to selectively allow certain solvent molecules and small molecular solutes to pass through, while retaining larger molecules and ions.
2. Wide application: Nanofiltration membranes are widely used in water treatment, food processing, pharmaceuticals, chemical industry and other fields. For example, it can be used to remove organic matter and chromaticity from surface water, remove hardness from groundwater, partially remove soluble salts, concentrate juices, and separate useful substances in medicines.
3. Low operating pressure: The operating pressure of the nanofiltration membrane is low, usually around several atmospheres, which makes it more economical and efficient in industrial applications.
4. Strong material selectivity: The nanofiltration membrane has different retention properties for monovalent and divalent ions and small molecular organic matter, which makes it more flexible in different industrial applications.
5. Environmental protection and energy saving: The concentration and purification process of the nanofiltration membrane is carried out at room temperature, without phase change and chemical reaction, and is particularly suitable for the treatment of heat-sensitive substances. In addition, the equipment has a compact structure, small footprint, low energy consumption, easy operation, can realize automated operation, good stability and easy maintenance.
It is applicable to the desalination of direct drinking water, spring water, boiler water, also desalination and decolorization of wastewater with high salt concentration.
| Model | Active Membrane Area ft2(m2) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate (%) |
Solution Type |
| NF2-4040 | 85(7.9) | 2600(9.8) | 30-50 | NaCl |
| 2200(8.3) | >97 | MgSO4 |
| Concentration of Solution | Temperature(℃) | pH Value | Operating Pressure psi(MPa) | Recovery Rate(%) |
| 500mg/L NaCl | 25 | 7.5-8 | 70(0.48) | 15 |
| 2000mg/L MgSO4 | 25 | 7.5-8 | 70(0.48) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. FeedWaterSDI15 | 5.0 |
| Max. Feed Water Flow | 3.6m3/h |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pH Range of FeedWaterDuring Continuous Operation | 3-10 |
| pH Range of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
|
|
Manufacturer, excellent strength
The membrane production process and automated production line introduced from the United States, with an annual production capacity of 3 million square meters of reverse osmosis membranes and nanofiltration membranes. The team has strong and unique R&D and innovation capabilities, and strong technical support can provide customers with customized industry solutions to meet customers' deep and multi-faceted needs.
Quality assurance, superior performance
The entire reverse osmosis membrane and nanofiltration membrane product production process is strictly carried out in accordance with ISO standards. All products are strictly tested with advanced testing equipment to ensure product performance and factory quality.
National qualifications, look for Qinsen Hi-Tech
It has more than 30 international and domestic invention patents, and has fully passed the ISO9001 quality system and national health safety product certification of national authoritative institutions, and the NSF certification of the National Health Foundation of the United States.
