Large Flux Brackish Water Reverse Osmosis BWRO Membranes Element-BW-8040
Product Details:
| Place of Origin: | China |
| Brand Name: | Keensen |
| Certification: | CE |
| Model Number: | BW-8040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Product Categories: | Industrial Membrane Element | Main Feature Of This Membrane: | High Rejection Rate, Large Flux And Excellent Anti-fouling Property. |
|---|---|---|---|
| Applicable Occasions Of This Model: | It Can Be Widely Used In The Medicine, Chemical Industry, Beverage, Electricity And Other Various Industries Etc.. | Product Membrane Area Ft2(m2): | 400(37.2) |
| Concentrate Channel Spacer (mil) Of This Membrane Element: | 28 | Permeate Flow GPD(m3/d) Of This Membrane Element: | 10500(39.7) |
| Stable Rejection Rate (%) Of This Membrane Element: | 99.60 | Minimum Rejection Rate (%) Of This Membrane Element: | 99.50 |
| Highlight: | BWRO Membranes Element,Large Flux BWRO Membranes Element,BW-8040 BWRO Membranes Element |
||
Product Description

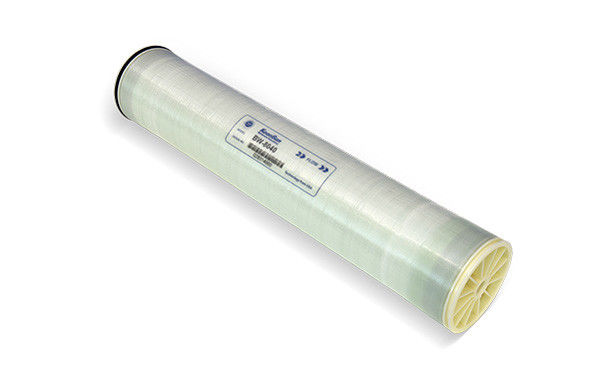

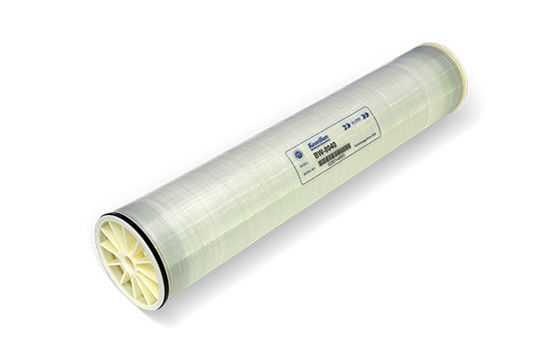

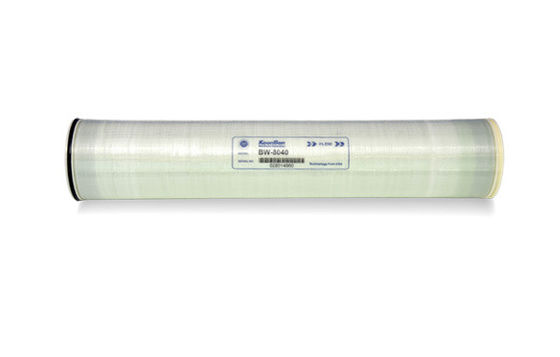

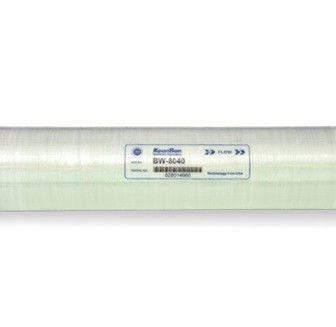

Large Flux Brackish Water Reverse Osmosis(BWRO) Membranes Element-BW-8040
1. Strong anti-fouling property: Using patented coating technology and "short membrane bag, multi-flow channel" design, BW reverse osmosis membrane can effectively reduce membrane pollution and improve anti-pollution performance. In addition, its water inlet channel is wider, the flow is more uniform, and it is not easy to be contaminated. Once contaminated, it has extremely high cleaning efficiency.
2. Low operating pressure: BW reverse osmosis membrane can reduce operating pressure and save energy under the same water production volume requirements. Its unique component structure and post-processing process enable it to achieve effective cleaning results in a wider pH range and extend its service life.
It is applicable to the desalination of surface water, groundwater and water treatment with salt concentration between 2000 and 8000ppm. It can be widely used in the medicine, chemical industry, beverage, electricity and other various industries etc..
| Model | Active Membrane Area ft2(m2) |
Concentrate Channel Spacer (mil) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate (%) |
Minimum Rejection Rate (%) |
| BW-8040 | 400(37.2) | 28 | 10500(39.7) | 99.60 | 99.50 |
| Concentration of Solution (NaCl) | Temperature(℃) | pH Value | Operating Pressure psi(MPa) | Recovery Rate(%) |
| 2000mg/L | 25 | 7.5-8 | 225(1.55) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. FeedWaterSDI15 | 5.0 |
| Max. Feed Water Flow | 17m3/h |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pH Range of FeedWaterDuring Continuous Operation | 3-10 |
| pH Range of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
|
|
Manufacturer, excellent strength
The membrane production process and automated production line introduced from the United States, with an annual production capacity of 3 million square meters of reverse osmosis membranes and nanofiltration membranes. The team has strong and unique R&D and innovation capabilities, and strong technical support can provide customers with customized industry solutions to meet customers' deep and multi-faceted needs.
Quality assurance, superior performance
The entire reverse osmosis membrane and nanofiltration membrane product production process is strictly carried out in accordance with ISO standards. All products are strictly tested with advanced testing equipment to ensure product performance and factory quality.
National qualifications, look for Qinsen Hi-Tech
It has more than 30 international and domestic invention patents, and has fully passed the ISO9001 quality system and national health safety product certification of national authoritative institutions, and the NSF certification of the National Health Foundation of the United States.
