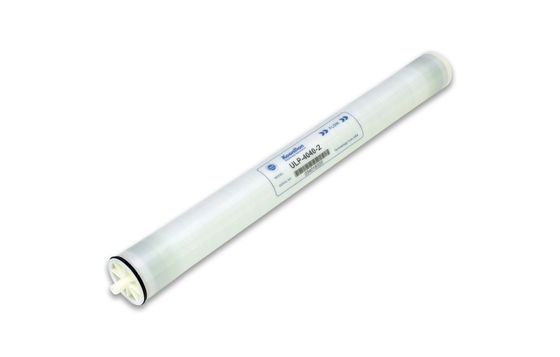

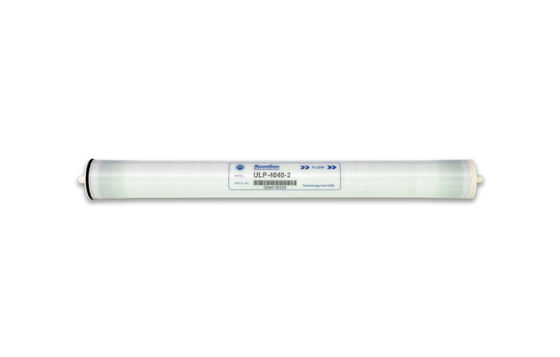

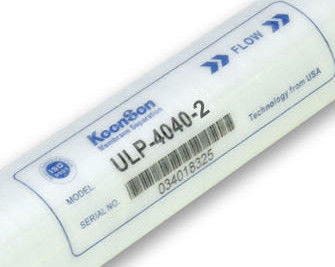

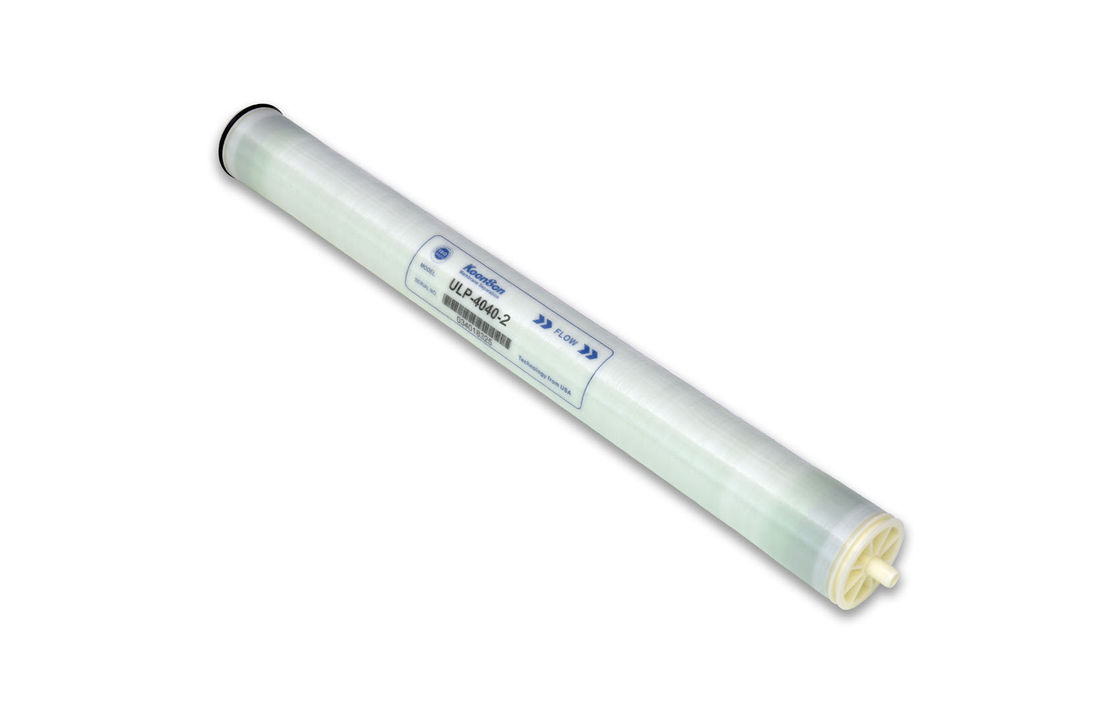

Industrial High Rejection Rate Reverse Osmosis Membranes ULP-4040-2
Product Details:
| Place of Origin: | China |
| Brand Name: | Keensen |
| Certification: | CE |
| Model Number: | ULP-4040-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Model Of This Element: | ULP-4040-2 | Membrane Area Of This Element: | 7.9m2 |
|---|---|---|---|
| Concentrate Channel Spacer Of This Element: | 28 | Permeate Flow GPD(m3/d) Of This Element: | 2200(8.3) |
| Stable Rejection Rate (%) Of Thie Element: | 99.50 | Minimum Rejection Rate (%) Of This Element: | 99.30 |
| Concentration Of Solution (NaCl) Of This Element: | 1500mg/L | Standard Test Conditions For Temperature: | 25℃ |
| Application Of Thie Element: | Residential Dual Water Supplying System,Industrial | Advantages Of This Model: | High Rejection Rate |
| Highlight: | Industrial Reverse Osmosis Membranes,ULP-4040-2 Reverse Osmosis Membranes,High Rejection Rate Reverse Osmosis Membranes |
||
Product Description
High Rejection Rate Reverse Osmosis Membranes ULP-4040-2 For Industrial
(1) It should have a high desalination rate at high flow rate.
(2) It should have high mechanical strength and service life.
(3) It should be able to function at a lower operating pressure.
(4) It should be able to withstand the influence of chemical or biochemical effects.
(5) It should be less affected by factors such as pH value and temperature.
(6) The raw materials for membrane production should be easy to obtain, the processing should be simple, and the cost should be low.
It is applicable to the desalination of municipal water, groundwater with salt concentration less than 1500ppm. It can be widely used in residential dual water supplying system, pure water preparation plant, industry, food production and other fields etc.
| Model | Active Membrane Area ft2(m2) |
Concentrate Channel Spacer (mil) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate (%) |
Minimum Rejection Rate (%) |
| ULP-4040-2 | 85(7.9) | 28 | 2200(8.3) | 99.50 | 99.30 |
| Concentration of Solution (NaCl) | Temperature(℃) | pH Value | Operating Pressure psi(MPa) | Recovery Rate(%) |
| 1500mg/L | 25 | 7.5-8 | 150(1.03) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. FeedWaterSDI15 | 5.0 |
| Max. Feed Water Flow | 3.6m3/h |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pH Range of FeedWaterDuring Continuous Operation | 3-10 |
| pH Range of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
|
|
Manufacturer, excellent strength
The membrane production process and automated production line introduced from the United States, with an annual production capacity of 3 million square meters of reverse osmosis membranes and nanofiltration membranes. The team has strong and unique R&D and innovation capabilities, and strong technical support can provide customers with customized industry solutions to meet customers' deep and multi-faceted needs.
Quality assurance, superior performance
The entire reverse osmosis membrane and nanofiltration membrane product production process is strictly carried out in accordance with ISO standards. All products are strictly tested with advanced testing equipment to ensure product performance and factory quality.
National qualifications, look for Qinsen Hi-Tech
It has more than 30 international and domestic invention patents, and has fully passed the ISO9001 quality system and national health safety product certification of national authoritative institutions, and the NSF certification of the National Health Foundation of the United States.
