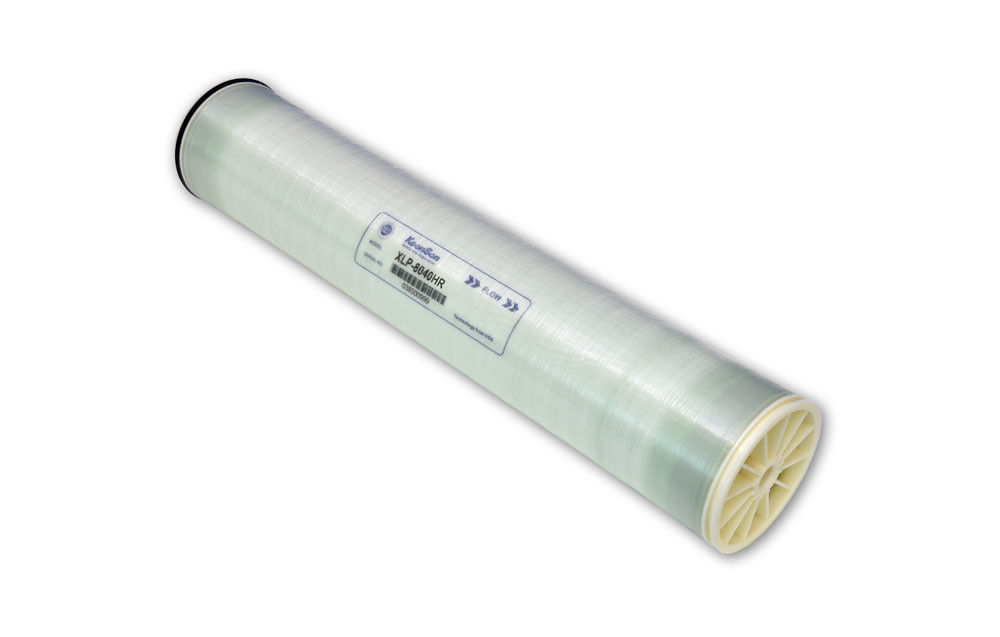

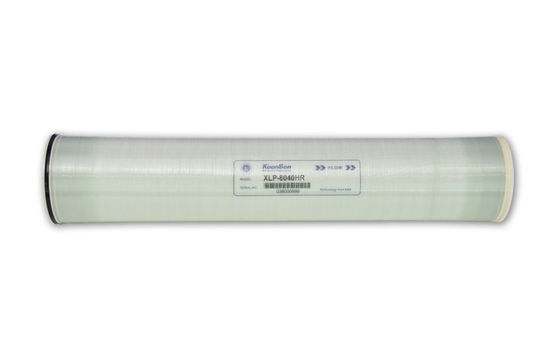

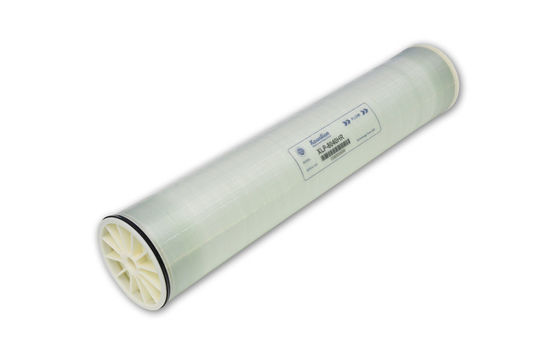

8-Inch Reverse Osmosis Membranes Element XLP-8040HR For Pure Water Preparation
Product Details:
| Place of Origin: | China |
| Brand Name: | Keensen |
| Certification: | CE |
| Model Number: | XLP-8040HR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Product Model: | XLP-8040HR | Active Membrane Area Of Product: | 37.2m2 |
|---|---|---|---|
| Permeate Flow GPD(T/D) Of Product: | 9000(34.1) | Stable Reject Of Modelion Rate Of Product: | 99.3% |
| Solution Concentration Of The Productof Solution Of Model: | 500ppm | Temperature Of Product: | 25℃ |
| PH Value Of Product: | 7.5-8 | Max. Pressure Drop Of Single Membrane Element: | 15psi(0.1Mpa) |
| Advantage Of Product: | Extreme Low Working Pressure | Usage: | Pure Water Preparation |
| Highlight: | XLP-8040HR Reverse Osmosis Membranes,8-Inch Reverse Osmosis Membranes,Pure Water Preparation Reverse Osmosis Membranes |
||
Product Description
8-Inch Reverse Osmosis Membranes Element XLP-8040HR For Pure Water Preparation
1. The industrial reverse osmosis membrane has a small pore size and can effectively deeply filter impurities such as colloidal substances, microorganisms, and dissolved salts contained in wastewater. The purification effect is obvious, the energy consumption is low, the environmental protection is low, and the operation process is simple.
2. Relying solely on pressure as a driving force, it should have high desalination efficiency at high flow rates.
3. Has high mechanical strength and service life.
4. It has the characteristics of high flux and high water production, and can also tolerate the influence of chemical or biochemical processes.
5. It is less affected by factors such as pH value and temperature, and is very suitable for a wide range of raw water quality. It is suitable for the treatment of brackish water, seawater, and sewage, as well as for the treatment of low salinity freshwater.
It is applicable to the desalination of municipal water, groundwater with salt concentration less than 1000ppm. It can be widely used in pure water preparation and related industries.
| Model | Active Membrane Area ft2(m2) | Permeate Flow GPD(T/D) | Stable Rejection Rate (%) |
| XLP-8040HR | 400(37.2) | 9000(34.1) | 99.3 |
| Concentration of Solution (NaCl) | Temperature(℃) | pH Value > | Operating Pressure psi(MPa) | Recovery Rate(%) |
| 500ppm | 25 | 7.5-8 | 100(0.69) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. Feed Water Flow | 17.0m3/h |
| Max. FeedWaterSDI15 | 5.0 |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pHRange of FeedWaterDuring Continuous Operation | 2-11 |
| pHRange of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
Manufacturer, excellent strength
The membrane production process and automated production line introduced from the United States, with an annual production capacity of 3 million square meters of reverse osmosis membranes and nanofiltration membranes. The team has strong and unique R&D and innovation capabilities, and strong technical support can provide customers with customized industry solutions to meet customers' deep and multi-faceted needs.
Quality assurance, superior performance
The entire reverse osmosis membrane and nanofiltration membrane product production process is strictly carried out in accordance with ISO standards. All products are strictly tested with advanced testing equipment to ensure product performance and factory quality.
National qualifications, look for Qinsen Hi-Tech
It has more than 30 international and domestic invention patents, and has fully passed the ISO9001 quality system and national health safety product certification of national authoritative institutions, and the NSF certification of the National Health Foundation of the United States.
