Industrial Series Extreme Low Working Pressure Reverse Osmosis Membranes Element XLP-8040
Product Details:
| Place of Origin: | China |
| Brand Name: | Keensen |
| Certification: | CE |
| Model Number: | XLP-8040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Membrane Area: | 40.9m2 | Concentrate Channel Spacer (mil): | 28 |
|---|---|---|---|
| Permeate Flow GPD(m3/d): | 11000(41.6) | Stable Rejection Rate (%): | 99.20 |
| Minimum Rejection Rate (%): | 99.00 | Concentration Of Solution (NaCl): | 500mg/L |
| Temperature（℃）: | 25 | Max.Working Pressure: | 600 Psi(4.14MPa) |
| Max. FeedWater Temperature: | 45 ℃ | Operating Pressure: | 0.69MPa |
| Advantage: | Extreme Low Working Pressure | ||
| Highlight: | Industrial Series Reverse Osmosis Membranes,XLP-8040 Reverse Osmosis Membranes,Low Pressure ro membrane |
||
Product Description

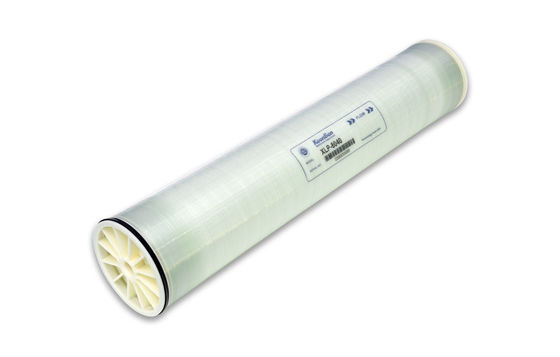

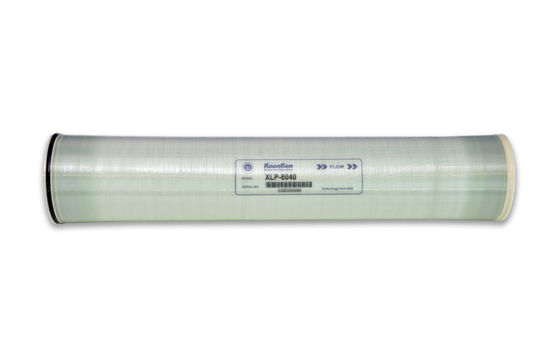

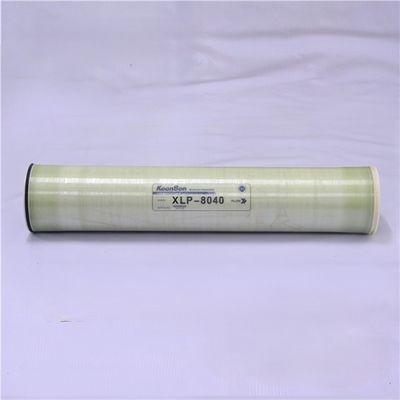

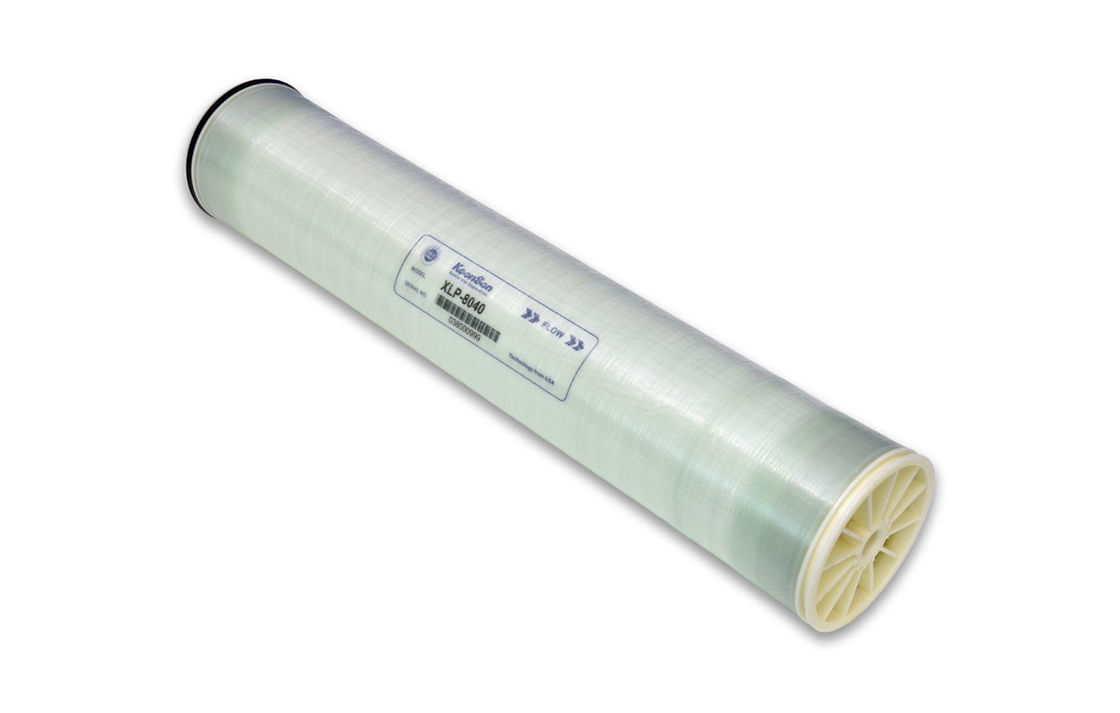

Industrial Series Extreme Low Working Pressure Reverse Osmosis Membranes Element XLP-8040
The XLP series products are ultra-low pressure aromatic polyamide composite reverse osmosis membrane elements developed by Qinsen Hi-Tech for high water flux requirements. They can meet the water output and desalination rate requirements of the membrane system under extremely low operating pressure conditions. Their operating pressure is about 1/2 of that of conventional low-pressure brackish water membranes, which can reduce the investment costs of membrane system pipelines, pumps and other equipment and system operating costs, and improve economic benefits.
Mainly used for desalination of surface water, groundwater, municipal water, etc. with a salt content of less than 1000mg/L. Its application areas include pure water, packaged drinking water, and the second-stage water supply of a two-stage membrane system. It has the characteristics of low energy consumption, high water output, extremely low operating pressure, and good desalination performance.
This desalination treatment system is highly effective in removing impurities and salt from municipal tap water and groundwater with a salt content of less than 1000ppm. It is an ideal solution for producing high-quality pure water for various industries, including pharmaceutical, food and beverage, and electronics. With its advanced technology and efficient operation, this system ensures reliable and consistent water quality, making it a versatile choice for a wide range of applications.
| Model | Active Membrane Area ft2(m2) |
Concentrate Channel Spacer (mil) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate (%) |
Minimum Rejection Rate (%) |
| XLP-8040 | 440(40.9) | 28 | 11000(41.6) | 99.20 | 99.00 |
| Concentration of Solution (NaCl) | Temperature(℃) | pH Value | Operating Pressure psi(MPa) | Recovery Rate(%) |
| 500mg/L | 25 | 7.5-8 | 100(0.69) | 15 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
| Max. FeedWater Temperature | 45 ℃ |
| Max. FeedWaterSDI15 | 5.0 |
| Max. Feed Water Flow | 17m3/h |
| Free Chlorine Concentration of FeedWater | 0.1mg/L |
| pH Range of FeedWaterDuring Continuous Operation | 3-10 |
| pH Range of FeedWaterDuring Chemical Cleaning | 1-13 |
| Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
