SFP-2660 SFD-2660 Ultrafiltration Membrane For Wastewater Treatment Flow Range1.3 – 4.0 M3/Hr 5.9 – 17.3 Gpm
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE |
| Model Number: | SFP-2660 & SFD-2660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Membrane Material: | PVDF(Polyvinylidene Fluoride) | Flow Range: | 1.3 – 4.0 M3/hr |
|---|---|---|---|
| Temperature: | 1-40ºC | Membrane Area: | 33m² |
| Max. Inlet Module Pressure (@ 20ºC): | 6.25 Bar | Max. Operating TMP: | 2.1 Bar |
| Flow Configuration: | Outside In, Dead End Flow | ||
| Highlight: | wastewater treatment DOW Ultrafiltration Membranes,wastewater treatment Ultrafiltration Membrane System,ultrafiltration membrane for wastewater treatment |
||
Product Description
DOW UF Membranes SFP-2660 & SFD-2660 Flow Range1.3 – 4.0 M3/hr (5.9 – 17.3 Gpm)
SFP-2660 membrane modules are suitable for systems with a capacity of 50m3/hr (220gpm) and below. The larger diameter membrane modules (8 inches) have the largest effective membrane area among Dow products, which can achieve a more economical membrane system design. Compared with longer membrane modules, shorter membrane modules (60 inches) provide higher separation efficiency and can adapt to a wider range of influent water quality.
DuPont Dow ultrafiltration membrane modules can be widely used in various fields of water treatment, such as surface water, seawater, industrial wastewater and secondary biochemical effluent, etc.
Application areas of DuPont SFP-2660 ultrafiltration membrane in the United States:
1. Preparation process of pure water and ultrapure water for reverse osmosis pretreatment and terminal treatment of ultrapure water.
2. Used to separate bacteria, heat sources, colloids, suspended solids in industrial water Floating objects and macromolecular organic matter.
3. Purification of drinking water and mineral water;
3. Concentration, purification and clarification of fermentation, enzyme preparation industry and pharmaceutical industry;
4. Concentration and separation of fruit juice;
5. Separation, concentration and clarification of soybeans, dairy products, sugar industry, liquor, tea juice, vinegar, etc.;
6. Purification and recycling of industrial wastewater and domestic sewage;
7. Used for separation, concentration and purification of biological products, pharmaceutical products and food industry;
8. It can also be used for end-of-line treatment devices in blood treatment, wastewater treatment and ultrapure water preparation.
Product Specifications

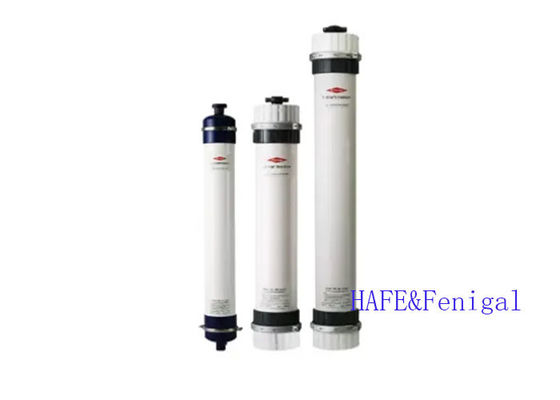

Figure 1: SFP and SFD 2660 (6-inch diameter)
Figure 2
Operating Parameters
Proper start-up of a UF system is essential to prepare the membranes for operating service and to prevent membrane damage. Following the proper start-up sequence also helps ensure that system operating parameters conform to design specifications so that system water quality and productivity goals can be achieved. Before initiating system start-up procedures, membrane pretreatment, installation of the membrane modules, instrument calibration and other system checks should be completed.
