77 M² 0.03 Μm PVDF DOW UF Membranes Module SFP 2880XP / SFD 2880XP
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE |
| Model Number: | SFP 2880XP and SFD 2880XP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Diameter: | 8 Inch | Membrane Area: | 77 M² |
|---|---|---|---|
| Membrane Material: | PVDF | Flow Range Per Module: | 2.0 – 8.5 M³/hr |
| Nominal Pore Diameter: | 0.03 µm | Volume: | 39liters |
| Operating Pressure: | 1-5 Bar | Operating PH: | 2-11 |
| Certifications: | ISO 9001, NSF, CE | ||
| Highlight: | DOW Ultrafiltration Membranes,Ultrafiltration Membrane System,Ultrafiltration Membranes For Water Treatment |
||
Product Description
77 M² 0.03 Μm PVDF DOW UF Membranes Module SFP 2880XP / SFD 2880XP

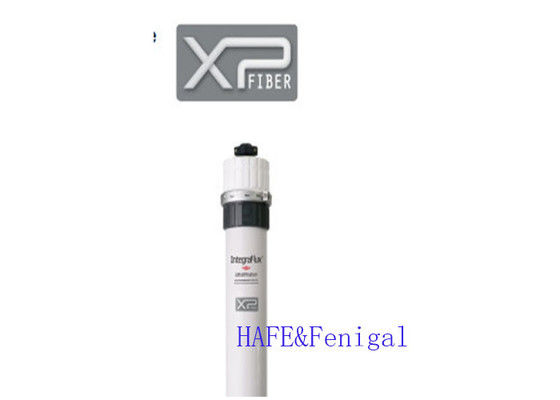

IntegraFlux™ Ultrafiltration (UF) modules with XP fiber are made from high permeability, high mechanical strength, hollow fiber PVDF membranes. The modules provide excellent performance, industry leading membrane area with low energy and chemical consumption. IntegraFlux™ modules have the following general properties and characteristics:
-
Exceptional Filtration Precision: Achieve superior filtration efficiency with these modules, effectively eliminating suspended solids, colloids, bacteria, and contaminants to ensure pristine water quality.
-
Chemical Resilience: Engineered to withstand a variety of chemicals encountered in water treatment, guaranteeing long-lasting performance and reliability.
-
Durable Design: Constructed with state-of-the-art materials, the SFP 2880XP and SFD 2880XP modules are built to last, delivering consistent results even in challenging operational conditions.
-
Energy-Efficient Operation: Operate efficiently at low pressures, reducing energy consumption and offering sustainable cost savings over the long term.
-
Versatile Applications: Tailored for diverse industrial needs including water purification and wastewater treatment, these modules offer a versatile and dependable solution for water filtration requirements.
Product Specifications

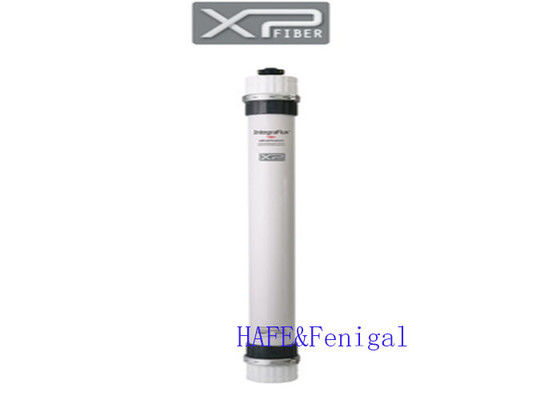

Figure 1: SFP and SFD 2860XP (8-inch diameter)
Operating Parameters
The difference between 28XX and 26XX
MODULE INSTALLATION
For application cases, please click:https://www.fgwater.com/Industries/
