DOW UF Membranes Technology Module SFP 2880XP / SFD 2880XP 2.0 – 8.5 M³/Hr 8-Inch
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE |
| Model Number: | SFP 2880XP and SFD 2880XP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Diameter: | 8 Inch | Membrane Area: | 77 M² |
|---|---|---|---|
| Membrane Material: | PVDF | Flow Range Per Module: | 2.0 – 8.5 M³/hr |
| Nominal Pore Diameter: | 0.03 µm | Operating Pressure: | 1-5 Bar |
| Max. Operating TMP: | 2.1 Bar | Max Operating Air Scour Flow: | 12 Nm3/hr |
| NaOCl (max.): | 2,000 Mg/L | Certifications: | ISO 9001, NSF, CE |
| Highlight: | DOW ultrafiltration membrane technology,Ultrafiltration Membrane System,Ultrafiltration Membranes For Water Treatment |
||
Product Description
DOW UF Membranes Module SFP 2880XP / SFD 2880XP 2.0 – 8.5 M³/hr 8-inch

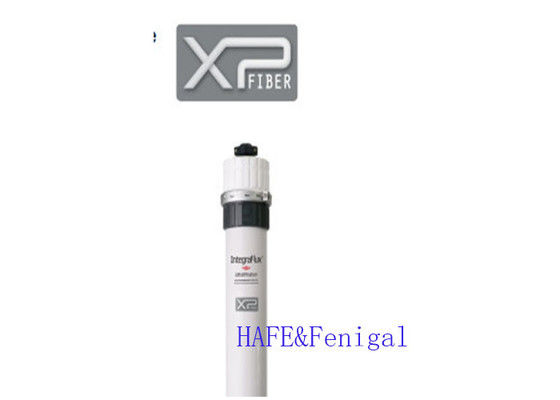

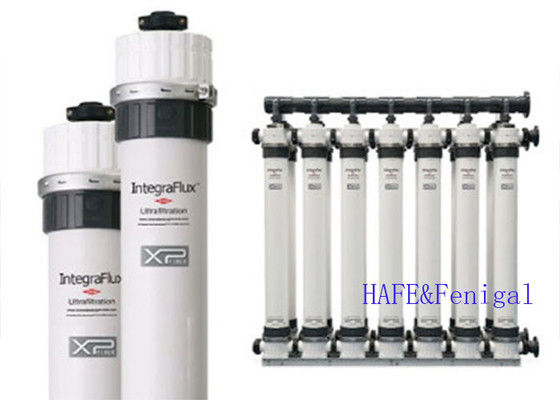

IntegraFlux™ Ultrafiltration (UF) modules with XP fiber are made from high permeability, high mechanical strength, hollow fiber PVDF membranes. The modules provide excellent performance, industry leading membrane area with low energy and chemical consumption.
Product Specifications
Figure 1: SFP and SFD 2860XP (8-inch diameter)
Operating Parameters
The difference between 28XX and 26XX
MODULE INSTALLATION
For application cases, please click:https://www.fgwater.com/Industries/
