Industrial OEM 190000GPD RO Water Treatment Equipment SS316L
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/NSF etc. |
| Model Number: | TX/BX -32k~190K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 50 set per month |
|
Detail Information |
|||
| Technology: | Commercial Water Reverse Osmosis | Design: | Skid Mount |
|---|---|---|---|
| Permeate Flow/TPD: | 120-720 | Recovery Rate: | 65~75% |
| Feed TDS/ppm: | <2,000 | Water Temp.: | 5~35˚C |
| PH: | 4~9 | TSS/mg/L: | <5 |
| Silt Density Index: | <3 | Free Chlorine Mg/L: | 0 |
| Dissolved Iron Mg/L: | <0.1 | Warranty: | 1 Year |
| Material: | SS304/SS316L,carbon Steel | Voltage: | 380V,415V,220V,can Be Customized |
| Application: | Water Purification,Filtration,pharmceutical,drinking Water,food | Size: | Depends,1750*550*1650mm |
| Type: | Reverse Osmosis System | Function: | Water Purifying, Desalination |
| Desalination Rate: | 99%,99.7% | Control: | Electronic,Manual/PLC |
| Ro Membrane: | Vontron, Hydranautics Or DOW,4040 | Pump: | CNP / Grundfos,CNP |
| High Light: | SS316L RO Water Treatment Equipment,190000GPD RO Water Treatment Equipment,OEM 190000GPD Reverse Osmosis Water Treatment System |
||
Product Description

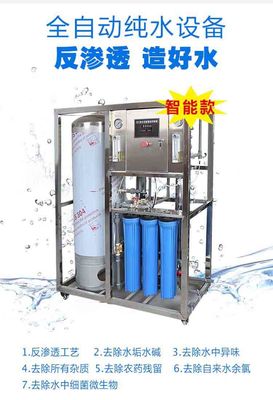

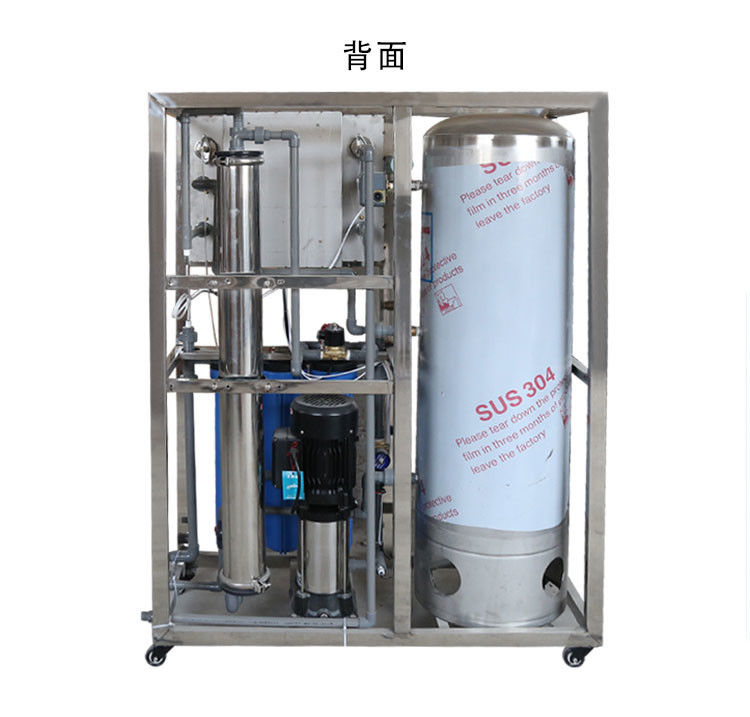

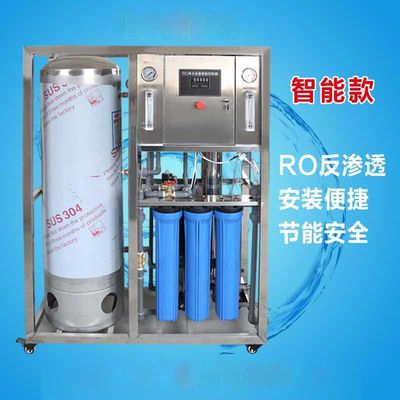

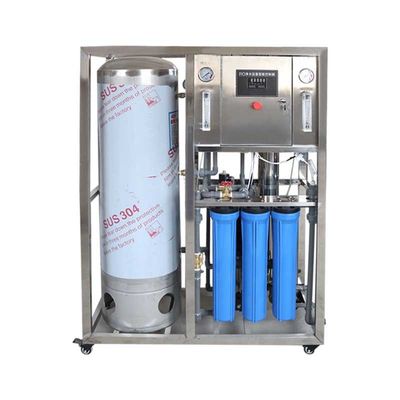

Industrial OEM 190000GPD RO Water Treatment Equipment SS316L
OEM 190000GPD Reverse Osmosis Water Treatment System
TX/BX industrial water reverse osmosis system treatment purification 32,000~190,000GPD
TX/BX – Series Reverse Osmosis Systems are designed as a cost–effective solution to the growing demand of tap and
well water for applications in food and beverage, pharmaceutical, healthcare, microelectronics, power, chemicals and agriculture.
With models ranging from 22 to 132 gallons per minute (32,000 to 190,000 gallons per day), the smart, clean utilitarian industrial design of the TX/BX – Series allows for convenient installation, user–friendly operation and ease of maintenance. These skid–mounted, package systems are pre–plumbed and pre–wired on a powder–coated steel frame complete with a pre–programmed computer controller, TDS probes and panel–mounted pressure gauges and flow instrumentation, allowing for straight forward system monitoring and control. The TX/BX – Series Systems utilize energy–efficient ultra low energy membranes with 10% greater membrane surface area than standard 8–inch
reverse osmosis elements, thus producing more pure water.
Standard Features
|
|
Options and Upgrades
|
|
* Standard on Models TX/BX – 2280, TX/BX – 3280, TX/BX – 4280, TX/BX – 5280.
** Standard on Models TX/BX – 3480, TX/BX – 4480, TX/BX – 5480, TX/BX – 6480.
*** Option available for Models TX/BX – 2280, TX/BX – 3280, TX/BX – 4280, TX/BX – 5280. Standard on larger models.
| Product Specifications | ||||||||||
| Models | TX/BX – 2280 | TX/BX – 3280 | TX/BX – 4280 | TX/BX – 5280 | TX/BX – 3480 | TX/BX – 4480 | TX/BX – 5480 | TX/BX – 6480 | ||
| Design | ||||||||||
| Configuration | Single Pass | Single Pass | Single Pass | Single Pass | Single Pass | Single Pass | Single Pass | Single Pass | ||
| Feedwater Source† | TDS | TDS | TDS | TDS | TDS | TDS | TDS | TDS | ||
| <2,000 ppm | <2,000 ppm | <2,000 ppm | <2,000 ppm | <2,000 ppm | <2,000 ppm | <2,000 ppm | <2,000 ppm | |||
| Standard Recovery % | 61 | 70 | 75 | 75 | 75 | 75 | 75 | 75 | ||
| Recovery with Concentrate | 80 | 80 | 80 | N/A | N/A | N/A | N/A | N/A | ||
| Recycle gpm % | ||||||||||
| Rejection and Flow Rates ††† | ||||||||||
| Nominal Salt Rejection % | 99 | 99 | 99 | 99 | 99 | 99 | 99 | 99 | ||
| Permeate Flow Rate | 22.00 / | 33.00 / | 44.00 / | 55.00 / | 66.00 / | 88.00 / | 110.00 / | 132.00 / | ||
| (gpm / lpm) | 83 | 125 | 167 | 208 | 250 | 333 | 416 | 500 | ||
| Minimum Concentrate | 14 / 53 | 14 / 53 | 14.6 / 55 | 18.3 / 69 | 22 / 83 | 29 / 111 | 36.6 / 139 | 44 / 167 | ||
| Flow Rate (gpm / lpm) | ||||||||||
| Connections | ||||||||||
| Feed Connection (in) | 2 FNPT | 2 FNPT | 2 FNPT | 2 FNPT | 3 FNPT | 3 FNPT | 3 FNPT | 3 FNPT | ||
| Permeate Connection (in) | 1 1/2 FNPT | 1 1/2 FNPT | 2 FNPT | 2 FNPT | 2 1/2 FNPT | 2 1/2 FNPT | 3 FNPT | 3 FNPT | ||
| Concentrate Connection (in) | 1 1/4 FNPT | 1 1/4 FNPT | 1 1/4 FNPT | 1 1/4 FNPT | 1 1/2 FNPT | 1 1/2 FNPT | 2 FNPT | 2 FNPT | ||
| Clean–in–Place Port (in) | 1 1/2 FNPT | 1 1/2 FNPT | 1 1/2 FNPT | 1 1/2 FNPT | 2 FNPT | 2 FNPT | 2 FNPT | 2 FNPT | ||
| Chemical Feed Port (in) | 1/2 NPT | 1/2 NPT | 1/2 NPT | 1/2 NPT | 1/2 NPT | 1/2 NPT | 1/2 NPT | 1/2 NPT | ||
| Membranes | ||||||||||
| Membrane(s) Per Vessel | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 | ||
| Membrane Quantity | 4 | 6 | 8 | 10 | 12 | 16 | 20 | 24 | ||
| Membrane Size | 8040 | 8040 | 8040 | 8040 | 8040 | 8040 | 8040 | 8040 | ||
| Vessels | ||||||||||
| Vessel Array | 1:01 | 1:01:01 | 1:1:1:1 | 2:1:1:1 | 2:01 | 2:01:01 | 3:01:01 | 3:02:01 | ||
| Vessel Quantity | 2 | 3 | 4 | 5 | 3 | 4 | 5 | 6 | ||
| Pumps | ||||||||||
| Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | |||
| Pump Type | Multi–Stage | Multi–Stage | Multi–Stage | Multi–Stage | Multi–Stage | Multi–Stage | Multi–Stage | Multi–Stage | ||
| Centrifugal Pump | Centrifugal Pump | Centrifugal Pump | Centrifugal Pump | Centrifugal Pump | Centrifugal Pump | Centrifugal Pump | Centrifugal Pump | |||
| Motor HP / KW | 10 / 7.5 | 10 / 7.5 | 10 / 7.5 | 10 / 7.5 | 15 / 11 | 15 / 11 | 20 / 11 | 20 / 11 | ||
| System Electrical | ||||||||||
| Standard Voltage | 208V – 230V, | 208V – 230V, | 208V – 230V, | 208V – 230V, | 208V – 230V, | 208V – 230V, | 208V – 230V, | 208V – 230V, | ||
| + Amp Draw | 60Hz, 3PH, | 60Hz, 3PH, | 60Hz, 3PH, | 60Hz, 3PH, | 60Hz, 3PH, | 60Hz, 3PH, | 60Hz, 3PH, | 60Hz, 3PH, | ||
| 28A – 27A** | 28A – 27A** | 28A – 27A** | 28A – 27A** | 40.5A – 37A** | 40.5A – 37A** | 49A** | 49A** | |||
| Systems Dimensions | ||||||||||
| Approximate Dimensions* L x W x H (in / cm) | 112 x 35 x 74 / | 112 x 35 x 74 / | 112 x 35 x 74 / | 112 x 35 x 74 / | 194 x 41 x 78 / | 194 x 41 x 78 / | 194 x 41 x 78 / | 194 x 41 x 84 / | ||
| 284 x 89 x 188 | 284 x 89 x 188 | 284 x 89 x 188 | 284 x 89 x 188 | 493 x 104 x 198 | 493 x 104 x 198 | 493 x 104 x 198 | 493 x 104 x 213 | |||
| Approximate Weight | 1,285 / 583 | 1,435 / 651 | 1,585 / 719 | 1,735 / 787 | 2,005 / 910 | 2,275 / 1,032 | 2,645 / 1,200 | 2,910 / 1,320 | ||
| (lbs / kg) | ||||||||||
Test Parameters: 550 TDS Filtered (5 – Micron), Dechlorinated, Municipal Feedwater, 65 psi / 4.50 bar Feed Pressure, 100 psi / 6.9 bar Operating Pressure
77ªF / 25ªC, Recovery as stated, 7.0 pH. Data taken after 60 minutes of operation.
* Does not include operating space requirements.
** Varies with motor manufacturer.
Operating Limits
| Design Temperature (°F / °C) | 77 / 25 | Maximum SDI Rating (SDI) | < 3 |
| Maximum Feed Temperature (°F / °C) | 85 / 29 | Maximum Free Chlorine (ppm) | 0 |
| Minimum Feed Temperature (°F / °C) | 40 / 4 | Maximum Hardness (gpg) | 0 |
| Maximum Ambient Temperature (°F / °C) | 120 / 49 | Maximum pH (Continuous) | 11 |
| Minimum Ambient Temperature (°F / °C) | 40 / 4 | Minimum pH (Continuous) | 2 |
| Maximum Feed Pressure (psi / bar) | 85 / 6 | Maximum pH (Cleaning 30 Minutes) | 13 |
| Minimum Feed Pressure (psi / bar) | 45 / 3 | Minimum pH (Cleaning 30 Minutes) | 1 |
| Maximum Piping Pressure (psi / bar) | 200 / 18.7 | Maximum Turbidity (NTU) | < 1 |
Low temperatures and feedwater quality, such as high TDS levels will significantly affect the systems production capabilities and performance. Computer projections must be run for individual applications which do not meet or exceed minimum and maximum operating limits for such conditions.
System pressure is variable due to water conditions. Permeate flow will increase at a higher temperature and will decrease at a lower temperature.
Product flow and maximum recovery rates are based on feedwater conditions as stated above. Do not exceed recommended permeate flow.
