Product Details:

Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE/NSF etc.
Model Number: CDS-9

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wood Crate/Carton or Naked wrapped by film
Delivery Time: 15~30 days
Payment Terms: T/T, Western Union, Paypal etc.
Supply Ability: 200 set per month
Get Best Price Contact Now

Detail Information

Technology: Chemical Disinfection Design: Skid Mount
Water Temp.: 5~35˚C Application: Chemical Dosing
Water Flowrate: 500~10000 L/H Voltage: 380V,415V,220V,can Be Customized
Control: Electronic,Manual/PLC
High Light:

10000L/H Auto Chemical Dosing System

,

380V Auto Chemical Dosing System

,

10000L/H powdered activated carbon dosing system

Product Description

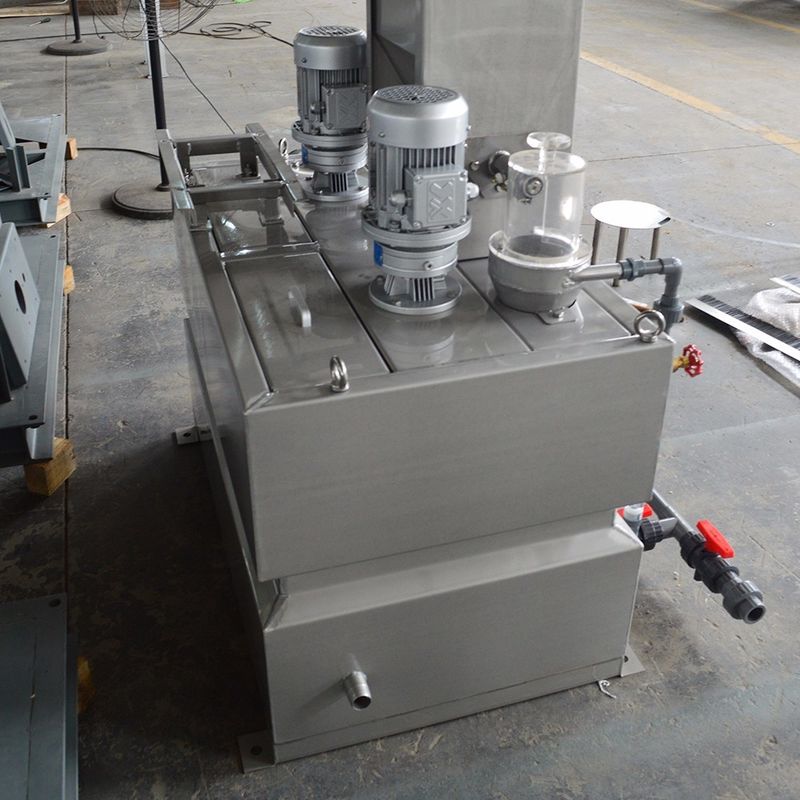

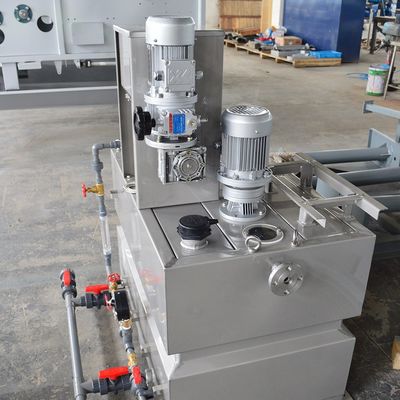

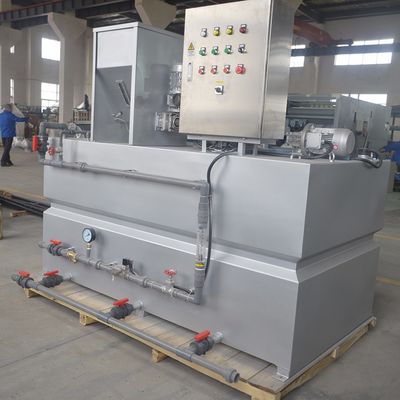

Skid Mount Auto Chemical Dosing System , Powdered Activated Carbon Dosing System

Automatic Industrial Sewage Treatment PAM/PAC Chemical Dosing Equipment 500-4000Lt/hr



Product Introduction
The function of polymer dosing system is to make the flocculants of powder or liquid dissolve or dilute into flocculants solution.

Feature:

1, Dosing, dissolving and feeding function are integrated, full automatic operation. Well designed dosing and heating device can reduce polymer caking;
2, Polymer and water inletting are adjustable, All concentration of the liquid can be reached according to your needs. The machine will remind to add polymer when the polymer reaches low level;
3, Optional: Vacuum feeding machine, Online dilution system; Tank material: SS304 or SS316L, Polypropylene, FRP, etc.

About Model Selection
Motor Brand
Nord , SEW
Application
PAM Polymer Preparation Unit
Material
Stainless Steel 304
Operation
Automatic
Dosing capacity
500-4000Lt/hr

Technical Parameters
Model
TH500
TH1000
TH1500
TH2000
TH2500
TH3000
TH4000
Preparation of ability(L/h)
Maturing time(1h)
500
1000
1500
2000
2500
3000
4000
Power (KW)
1.7
2.45
2.45
2.45
3.5
3.9
3.9
PAM powder feed quantity(kg/h)
1~5
2~10
3~15
3.5~20
Water inflow(m³/h)
0.3~1.5
0.6~3
0.9~4
1.2~6
1.6~8
2.0~10
2.4~12
External dimension
(mm)
L
1370
2000
2130
2200
2400
2400
2720
B
680
1000
1070
1200
1200
1300
1400
H
1500
1710
1710
1900
2140
2180
2250
Equipment Net Weight(kg)
250
400
490
550
650
700
770



Polymer Dosing System developed by MYEP is well known for the high quality and efficiency, its great features include:

1. Easy to operate, labor saving
Precast mixing tank, homogeneous slaking tank and solution storage tank are in one equipment, easy to learn and easy to operate, saving labor.
2. Polymer concentration is adjustable
Water and polymer can get into the tank at the same time, as the flowing rate of the feeding pump can be controlled, so any concentration (within a certain range) can be prepared according to the actual requirements.
3.Well designed machine frame
Precious conveying, delicate pre-soaking device and the constant temperature heating method can reduce agglomeration phenomenon caused by improper operation and prevent the line from clogging, so as to ensure the stable concentration.
4. Trustworthy operation
The unique structure and proper rotating speed of the mixer not only can ensure the homogenization solution, but also will not destroy the polymer molecular chain.
5. Better performance, better environment
First class spare parts to ensure excellent performance, low noise and low vibration.
