Air Source Ozone Generator with 2 g/h to 200 g/h Ozone Production Using Corona Discharge Technology and Stainless Steel Structure
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | ISO 14001， CE ，ISO 9001 |
| Model Number: | Ozonator |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T,Western Union,Paypal etc. |
| Supply Ability: | 200 set per month |
|
Detail Information |
|||
| Ozone Output: | 3 G/h / 5 G/h | Weight: | 3KG~68KG |
|---|---|---|---|
| Consumption: | 100W/140W | Cooling Method: | Air Cooling Or Air Cooling + Water Cooling |
| Dimension: | 230×180×420 Mm~~~600×500×1430 Mm | Gas Source: | Air Source / Dry Clean Air / External Oxygen |
| Ozone Concentration: | 15-25 Mg/L | Model: | QJ-8001K-2A--QJ-8015K-200A |
| Ozone Production: | 2 G/h~200 G/h | Power Rating: | 60 W~~2300 W |
Product Description
High Efficiency Ozone Generation System for Sterilization, Deodorization and Environmental Purification
The Air Source Ozone Generator is an integrated ozone generation system designed for air purification, water treatment, sterilization, deodorization, and environmental disinfection applications.
Using advanced corona discharge ozone generation technology, this equipment converts oxygen from air into ozone efficiently, providing a reliable solution for removing microorganisms, controlling odors, and improving environmental hygiene.
With an integrated structure combining ozone generation, control system, and air source components, the ozone generator features stable operation, easy installation, and flexible application.
The product range covers ozone outputs from 2g/h to 200g/h, making it suitable for various applications including indoor air purification, drinking water treatment, food processing sanitation, aquaculture, medical environments, and industrial purification projects.
High-voltage corona discharge technology generates ozone with stable concentration and high efficiency.
- High ozone production efficiency
- Stable ozone output
- Low energy consumption
- Long service life
- Reliable continuous operation
Uses surrounding air as the oxygen source for simple operation and reduced costs.
- No additional oxygen supply system required
- Simple installation and operation
- Reduced operating cost
- Compact and practical design
Multiple ozone production capacities from 2g/h to 200g/h to meet various application requirements.
- Small air purification applications
- Commercial disinfection projects
- Food processing environments
- Water treatment systems
Air cooling for low/medium output models and air+water cooling for higher output requirements.
- Simple structure and easy maintenance
- Better heat dissipation performance
- Stable long-term operation
- Suitable for continuous ozone production
Ozone concentration can be adjusted according to different application requirements.
Stainless steel cabinet design for corrosion resistance and professional appearance.
- Corrosion resistance
- Strong durability
- Suitable for humid environments
- Easy cleaning and maintenance
- Hospitals, clinics, laboratories
- Hotels, offices, public facilities
- Indoor air sterilization
- Odor removal and mold control
- Drinking water purification
- Swimming pool water treatment
- Industrial and wastewater treatment
- Aquaculture water purification
- Food processing workshops
- Packaging areas and storage rooms
- Production equipment cleaning
- Cold storage disinfection
- Medical facilities and clean rooms
- Pharmaceutical workshops
- Laboratories and sterile environments
- Fish farming and aquaculture systems
- Poultry houses and livestock facilities
- Agricultural product storage
| Product Model | Ozone Production | Ozone Concentration | Power Rating | Weight | Dimension | Cooling Method | Gas Source |
|---|---|---|---|---|---|---|---|
| QJ-8001K-2A | 2 g/h | 15-25 mg/L | 60 W | 3 kg | 230×180×420 mm | Air Cooling | Air Source |

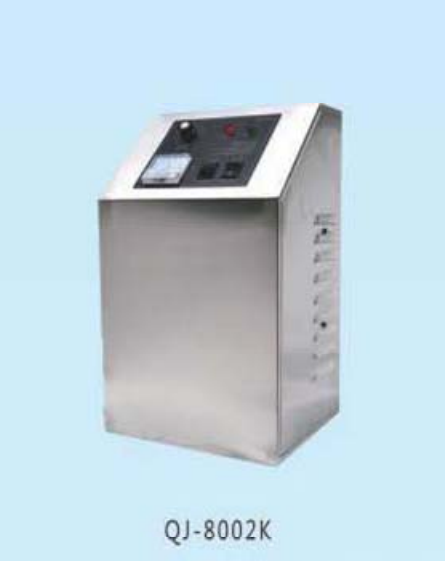

| QJ-8002K-3A | 3 g/h | 15-25 mg/L | 100 W | 4.5 kg | 320×250×520 mm | Air Cooling | Air Source |
| QJ-8002K-5A | 5 g/h | 15-25 mg/L | 140 W | 5 kg | 320×250×520 mm | Air Cooling | Air Source |
| QJ-8005K-10A | 10 g/h | 15-25 mg/L | 180 W | 5.5 kg | 320×260×580 mm | Air Cooling | Air Source |
| QJ-8006K-15A | 15 g/h | 15-25 mg/L | 300 W | 8.5 kg | 400×300×710 mm | Air Cooling | Air Source |

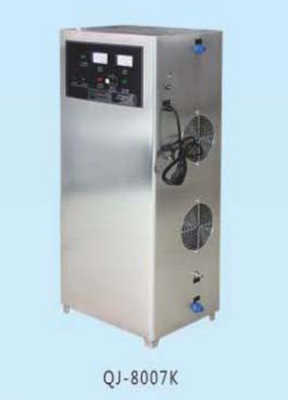

| QJ-8007K-20A | 20 g/h | 15-25 mg/L | 320 W | 10.9 kg | 400×300×830 mm | Air Cooling | Dry Clean Air / External Oxygen |

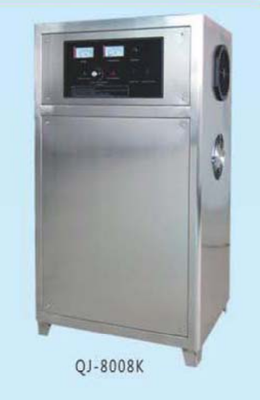

| QJ-8008K-30A | 30 g/h | 15-25 mg/L | 350 W | 17.5 kg | 400×300×830 mm | Air Cooling + Water Cooling | Dry Clean Air / External Oxygen |
| QJ-8009K-40A | 40 g/h | 15-25 mg/L | 480 W | 17.7 kg | 550×400×850 mm | Air Cooling + Water Cooling | Dry Clean Air / External Oxygen |
| QJ-8010K-50A | 50 g/h | 15-25 mg/L | 530 W | 20.3 kg | 550×400×1000 mm | Air Cooling + Water Cooling | Dry Clean Air / External Oxygen |
| QJ-8011K-60A | 60 g/h | 15-25 mg/L | 680 W | 34 kg | 550×400×1130 mm | Air Cooling + Water Cooling | Dry Clean Air / External Oxygen |
| QJ-8012K-80A | 80 g/h | 15-25 mg/L | 1020 W | 35 kg | 550×400×1240 mm | Air Cooling + Water Cooling | Dry Clean Air / External Oxygen |
| QJ-8013K-100A | 100 g/h | 15-25 mg/L | 1140 W | 50 kg | 500×400×1330 mm | Air Cooling + Water Cooling | Dry Clean Air / External Oxygen |
| QJ-8014K-150A | 150 g/h | 15-25 mg/L | 2000 W | 67 kg | 600×500×1430 mm | Air Cooling + Water Cooling | Dry Clean Air / External Oxygen |
| QJ-8015K-200A | 200 g/h | 15-25 mg/L | 2300 W | 68 kg | 600×500×1430 mm | Air Cooling + Water Cooling | Dry Clean Air / External Oxygen |
The Air Source Ozone Generator uses high-voltage corona discharge technology to convert oxygen molecules in air into ozone.
The generated ozone enters the treatment area through air or water systems, where it reacts with microorganisms and organic compounds through oxidation to achieve:
- Sterilization
- Purification
- Deodorization
- Environmental improvement
Ozone is a strong oxidizing gas. During ozone operation:
- Avoid direct exposure to high ozone concentration environments
- Ensure proper ventilation after ozone treatment
- Follow local safety requirements during installation and operation
The standard product range provides ozone output from 2g/h to 200g/h. Customized solutions are available according to customer requirements.
Standard models use ambient air as the gas source. For higher ozone concentration requirements, dry clean air or external oxygen sources can be selected.
Yes. The ozone generator is widely used for drinking water treatment, wastewater treatment, swimming pools, aquaculture systems, and industrial water purification.
Yes. It can be used in hotels, restaurants, hospitals, laboratories, food factories, farms, and other commercial environments.
Yes. FG Water Technologies provides OEM service and customized ozone solutions according to different applications.
Each Air Source Ozone Generator is strictly inspected before shipment to ensure stable performance and reliable operation. We provide comprehensive technical support, including product selection guidance, installation assistance, system integration support, operation training, and maintenance recommendations.
FG Water Technologies specializes in ozone generation, air purification, water treatment, and disinfection solutions, offering stable product supply, professional technical service, and complete export support for customers worldwide.
