Product Details:

Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE/ISO etc.
Model Number: DAF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized
Delivery Time: 15~30 days
Payment Terms: T/T, Western Union, Paypal etc.
Supply Ability: 200 set per month
Get Best Price Contact Now

Detail Information

Material: Mild Steel, SUS304, FRP Size: 3.2m*2.4m*2.2m~12.5m*4.4m*2.5m
Operation: Automatic Running Core Components: Gearbox, Pressure Vessel, Pump, Gear, Motor, PLC
Weight: 1500kg-10000kg Capacity: 1-500m3/h
High Light:

500m3/h Industrial Water Clarifier

,

DAF Industrial Water Clarifier

,

500m3/h DAF clarifier

Product Description

150m3/H Industrial Water Clarifier , DAF Clarifier Oil Water Separator

150m3/H DAF Dissovled Air Floatation Clarifier for wastewater treatment oil water separator



Dissolved Air Flotation is liquid/solid or liquid/liquid separation process to remove tiny suspended solids that density close to the water, colloid ,oil and grease etc. Jorsun DAF is an innovation combined with traditional dissolved air flotation concept and modern technology.

A large numbers of fine and uniform bubble (5 ~ 80μm),bubbles, water, floc (oil) three-phase mixture, as a carrier, bubbles mixed with floc particles suspended in the water. Connect, adhesion ,form floc with bubbles and float to the liquid surface, scraping scum to achieve separation of impurities, water purification.



Working Principle
Based on different water source and different water quality, The feed water to the DAF float tank is often (but not always) dosed with Flocculant and coagulant (such as PAC and PAM) to coagulate the colloidal particles and a flocculant to conglomerate the particles into bigger clusters .

A portion of the clarified effluent water leaving the DAF tank is pumped into a small pressure vessel (called the air drum) into which compressed air is also introduced. This results in saturating the pressurized effluent water with air. The air-saturated water stream is recycled to the front of the float tank and flows through a pressure reduction valve just as it enters the front of the float tank,which results in the air being released in the form of tiny bubbles. Bubbles form atnucleation sites on the surface of the suspended particles, adhering to the particles. As more bubbles form, the lift from the bubbles eventually overcomes the force of gravity. This causes the suspended matter to float to the surface where it forms a froth layer which is then removed by a skimmer. The froth-free water exits the float tank as the clarified effluent from the DAF unit.

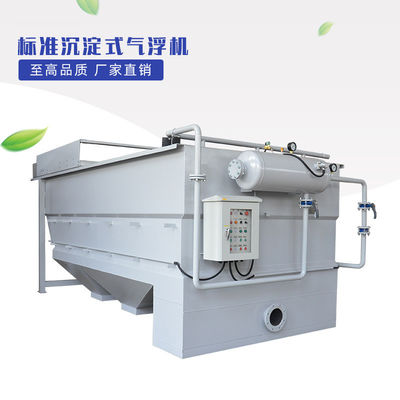

Based on water quality, we can add sedimentation device at the bottom of the DAF machine, it can make the particles (such as sludge, sand) that easy to sedimentation setting into the bottom of tank.



Equipment Specifications

Model Qmax.
(m3/h)
Piping Connections() Physical Dimensions(m) Weight
(Kg)
Operating
Weight(kg)
Power(kw) Air
compressor kw
Skimmer
Inlet Effluent Sludge Vent L/L1 W/W1 H/H1 Reflux pump
W
DAF-002 2 DN50 DN50 DN100 DN100 3.4/2.5 3.4/1.16 2.2/1.7 1300 4000 0.75 0.55 0.2
DAF-003 3 DN50 DN50 DN100 DN100 3.7/2.8 2.4/1.16 2.2/1.7 1500 5000 0.75 0.55 0.2
DAF-005 5 DN80 DN80 DN100 DN80 4/3 2.4/1.16 2.2/1.7 1600 7000 1.1 0.55 0.2
DAF-010 10 DN100 DN100 DN100 DN100 4.65/3.8 2.7/1.36 2.4/1.9 2000 12000 1.5 0.55 0.2
DAF-015 15 DN125 DN100 DN150 DN100 5.6/4.5 2.9/1.66 2.5/2 2200 18000 2.2 0.75 0.2
DAF-020 20 DN150 DN150 DN150 DN100 5.9/4.8 3.2/1.96 2.5/2 3000 22000 3 0.75 0.2
DAF-030 30 DN150 DN150 DN150 DN100 6.8/5.5 3.2/2.16 2.7/2.2 3800 32000 3 0.75 0.4
DAF-040 40 DN200 DN150 DN150 DN100 8/6.7 3.6/2.6 2.7/2.2 5000 45000 5.5 0.75 0.4
DAF-050 50 DN200 DN150 DN150 DN100 8.4/7 3.6/2.6 2.7/2.2 5500 55000 7.5 0.75 0.4
DAF-060 60 DN250 DN200 DN150 DN100 9.9/8.4 3.8/2.8 2.9/2.4 6000 66000 7.5 1.5 0.4
DAF-070 70 DN250 DN200 DN150 DN100 10.4/9 3.8/2.8 2.9/2.4 6500 75000 11 1.5 0.4
DAF-080 80 DN250 DN250 DN150 DN100 10.8/9.4 4/3 2.9/2.4 7500 100000 11 1.5 0.4
DAF-100 100 DN300 DN250 DN150 DN100 12.1/10.6 4.2/3.2 2.9/2.4 9000 110000 15 1.5 0.4
DAF-120 120 DN300 DN250 DN150 DN100 12.5/11.4 4.4/3.4 2.9/2.4 10000 130000 15 1.5 0.4




150m3/H Industrial Water Clarifier , DAF Clarifier Oil Water Separator 0

150m3/H Industrial Water Clarifier , DAF Clarifier Oil Water Separator 1

Applications Industry

The aim is to separate the fine suspended solids in water, algae and micro-floc. Separate or recycle waste oil or grease in : oil exploration and refining, biodiesel, machining , food production and catering and so on . High concentration organic wastewater treatment: paper, printing and dyeing, textile, leather, pharmaceutical, fermentation wastewater and so on . Biochemical effluent liquid separation: the anaerobic effluent solid-liquid separation, aerobic (activated sludge process, contact oxidation, filter) biochemical water solid-liquid separation, the secondary settling tank Effluent treatment and so on . Farm and slaughter house wastewater treatment: cattle, pigs, chickens farm, slaughter house wastewater. Manufacturing waste: electroplating, painting, etc. Purification: river, landscape, recycle water and so on.



150m3/H Industrial Water Clarifier , DAF Clarifier Oil Water Separator 2
