Sludge Scraper Lamella Industrial Water Clarifier
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/ISO etc. |
| Model Number: | LC2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 200 set per month |
|
Detail Information |
|||
| Technology: | Sedimentation Tank Theory | Membrane: | Carbon Sheet Steel/PP Plate |
|---|---|---|---|
| Design: | Skid Mount/containerized | Water Temp.: | 5~35˚C |
| Water Flow Rate: | Up To 1,000 M3/day | Voltage: | 380V,415V,220V,can Be Customized |
| Application: | Surface-ground Water/sewage Water Clarification | Control: | Electronic,Manual/PLC |
| Highlight: | 120m3/h Industrial Water Clarifier,OEM Industrial Water Clarifier,Sludge Scraper lamella clarifier |
||
Product Description

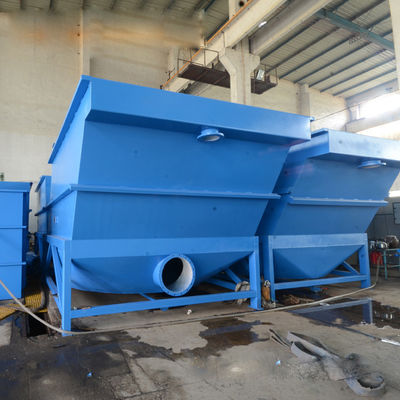

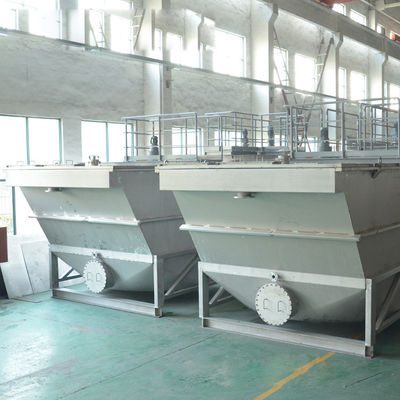

Sludge Scraper Lamella Clarifier for industrial sewage or waste water clarification 120m3/h
Lamella clarifier is a high efficient solid-liquid separation device equipped with a series of inclined plates with smaller footprint comparing with traditional sedimentation tank.

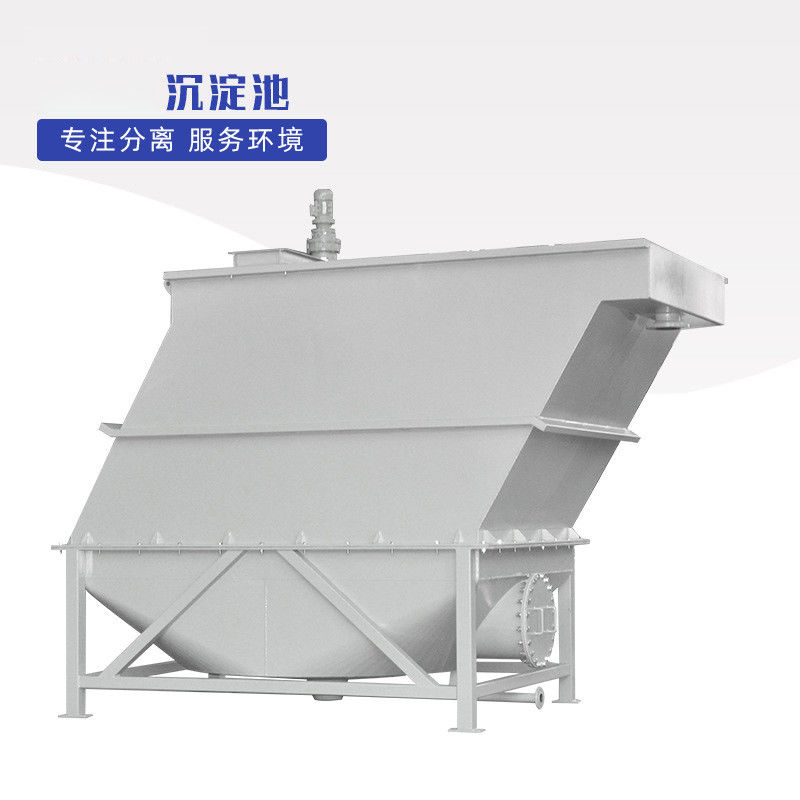

LC2 is a mechanical lamella clarifier with bottom sludge scraper, which can effectively reduce the equipment height and discharge sludge smoothly.
Characteristics and advantages:
1. Higher efficiency, smaller footprint: inclined plates extended to 1.5m, separation efficiency improved (higher 1.5 ~ 2.0 times) comparing with radial flow clarifier and vertical clarifier and save 80% of area.
2. Excellent hydraulic conditions: no hydraulic dead corner and vortex, better settling performance.
3. Inclined plates Chokeless :plates are of angle 60 degrees, spacing between 80 ~ 100 mm, adopting the back-washing device.
4. Strong and durable: Inclined plates are breakless, collapseless. Adopting 6mm hard PVC board or 8 mm high quality PP board as special separation plate, module embedded installation, high strength, easy disassembling and maintenance.
5. Sludge discharge smoothly : no dead angle, sludge pump is recommended .
LC2 Lamella Clarifier of flat bottom (with scraper) Specification
| Model | Capacity | Dimension(m) | Sludge scraper | Nozzle list (DN) GB/JIS/ANSL | |||||
| (m3/h) | L | W | H1/H2 | kw | Inlet | Outlet | Sludge outlet | Backwash | |
| LC2-005 | ~5 | 2.6 | 1.6 | 3.4/2.5 | 0.25 | 80 | 50 | 50 | 50 |
| LC2-010 | ~10 | 3.4 | 1.8 | 3.8/3.0 | 0.25 | 100 | 80 | 50 | 50 |
| LC2-020 | ~20 | 3.4 | 2.2 | 3.8/3.0 | 0.25 | 150 | 150 | 50 | 50 |
| LC2-030 | ~30 | 4.2 | 2.2 | 3.8/3.0 | 0.25 | 150 | 150 | 50 | 50 |
| LC2-040 | ~40 | 4.0 | 2.8 | 3.8/3.0 | 0.25 | 200 | 200 | 50 | 50 |
| LC2-040 | ~40 | 5.3 | 2.2 | 3.8/3.0 | 0.25*2 | 200 | 150 | 50*2 | 50 |
| LC2-050 | ~50 | 4.7 | 2.8 | 3.8/3.0 | 0.25 | 200 | 200 | 50 | 50 |
| LC2-050 | ~50 | 6.3 | 2.2 | 3.8/2.0 | 0.25*2 | 200 | 200 | 50*2 | 50 |
| LC2-060 | ~60 | 4.8 | 3.0 | 3.8/3.0 | 0.25 | 250 | 200 | 50 | 50 |
| LC2-060 | ~60 | 7.2 | 2.2 | 3.8/3.0 | 0.25*2 | 250 | 200 | 50*2 | 50 |
| LC2-070 | ~70 | 5.1 | 3.2 | 3.8/3.0 | 0.25 | 250 | 200 | 80 | 50 |
| LC2-080 | ~80 | 5.1 | 3.4 | 4.0/3.2 | 0.25 | 250 | 250 | 80 | 50 |
| LC2-090 | ~90 | 6.3 | 3.0 | 4.0/3.2 | 0.25*2 | 250 | 250 | 80*2 | 50 |
| LC2-100 | ~100 | 7.1 | 3.0 | 4.0/3.2 | 0.25*2 | 250 | 250 | 80*2 | 50 |
| LC2-110 | ~110 | 7.8 | 3.0 | 4.0/3.2 | 0.25*2 | 300 | 250 | 80*2 | 50 |
| LC2-120 | ~120 | 8.3 | 3.0 | 4.0/3.2 | 0.25*2 | 300 | 300 | 80*2 | 50 |
Application Industry
Electronic wastewater
Chemical phosphorus removal
Electroplating wastewater
Paper and pulp wastewater
Wastewater before filter or back-washing wastewater treatment
Advanced treatment of the WWTP
River purification
