DOW Filmtec 1600GPD Seawater Reverse Osmosis Membrane

DOW Filmtec 1600GPD Seawater Reverse Osmosis Membrane

Product Details:

Place of Origin: China
Brand Name: DOW
Certification: CE/NSF etc.
Model Number: LCLE etc.

Payment & Shipping Terms:

Minimum Order Quantity: 1 bag
Price: Negotiable
Packaging Details: Standard Export PP Bag
Delivery Time: 15~30 days
Payment Terms: T/T, Western Union
Supply Ability: 10,000 bags per month
Get Best Price Contact Now

Detail Information

Permeate Flow Rate: 1,600 Gpd (6,057 L/day) Or 6.1 M³/day) Maximum Feed Flow Rate: 16 Gpm (3.6 M³/hr)
Applied Pressure(psi): 800 Psi (55 Bar) Maximum Operating Pressure(psi): 1,200 Psi (83 Bar)
Maximum Feed Silt Density Index(SDI):: 5 SDI Free Chlorine Tolerance(ppm): < 0.1 Ppm
High Light:

1600GPD seawater reverse osmosis membrane

,

800psi seawater reverse osmosis membrane

,

filmtec membrane lcle 4040

Product Description

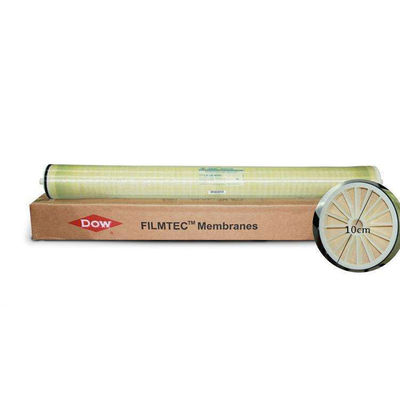

DOW Filmtec 1600GPD Seawater Reverse Osmosis Membrane

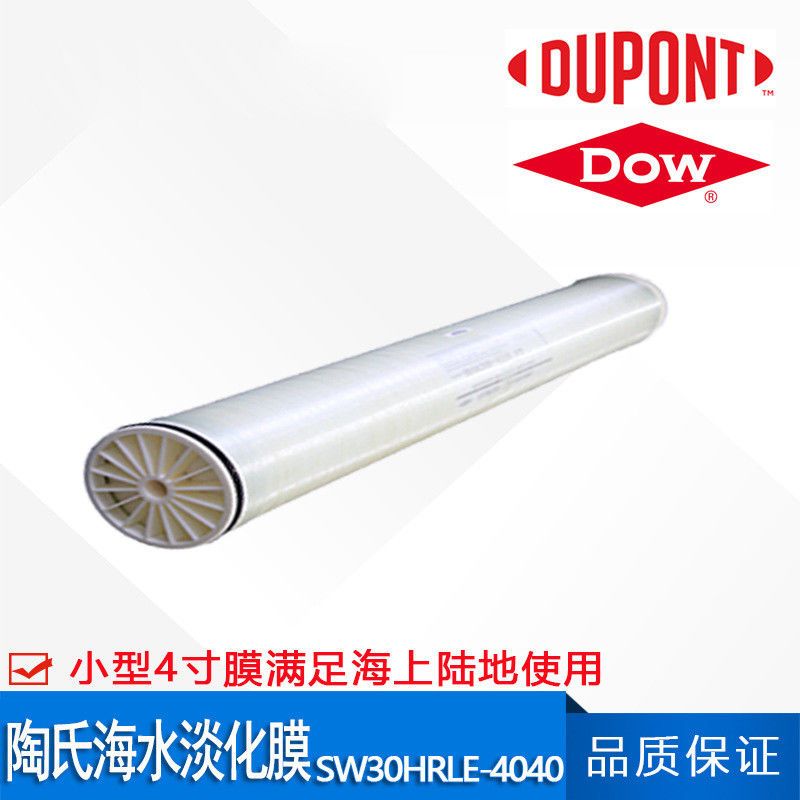

DOW Filmtec SW30HRLE-4040 RO sea water reverse osmosis Membrane 1600 GPD

DOW Filmtec SW30HRLE-4040 Seawater Reverse Osmosis Membrane, a 4.0" x 40" RO membrane element that can provide RO quality water of up to 1,600 gallons per day at a 8% recovery rate. It can operate at feed pressures ranging from 800 psi to 1,200 psi with 99.75% salt rejection. This Seawater RO element is ideal for use in medium-sized desalination systems that produce less than approximately 10 gpm (2300 L/h) of permeate. SW30HRLE-4040 reverse osmosis element is a 4-inch diameter version of SW30HRLE-400, the industry’s leading seawater element which offers an unprecedented combination of high salt rejection and productivity to enable the lowest total cost of purifying high salinity water. This reliable performance is the result of improved membrane combined with automated, precision element fabrication.


Key Features and Benefits:
1,600 gallons per day.

  • 1,200 psi max operating pressure.
  • SW30 elements provide longer life due to high cleanability.
  • High Salt rejection for high quality permeate.
  • High flux reduces energy used and pressure required.
  • Good rejection provides good water quality.
  • Delivers the highest sodium chloride and boron rejection to help meet World Health Organization (WHO) and other drinking water standards.
  • Delivers high performance over the operating lifetime without the use of oxidative post-treatments like many competitive products.
  • Dow Filmtec performance and quality
SPECIFICATIONS
Product Part number Active area ft2 (m2) Maximum operating pressure psig (bar) Permeate flow rate gpd (m3/d) Stabilized boron rejection % Minimum salt rejection % Stabilized saltrejection %
SW30HRLE-400 NA 400 (37) 1,200 (83) 7,500 (28) 92 99.65 99.8

Specifications

Model/SKU: DWC86
Manufacturer ID [Part#]: Dupont Dow SW30HRLE-4040 [Part 255048]
Dimensions(Diameter x Length, inches): 4.0 x 40 inches(actual 3.9 x 40)
Stabilized Salt Rejection, Range(min-max%): 99.60% - 99.75%
Permeate Flow Rate(Gallons per Day, gpd): 1,600 gpd (6,057 L/day) or 6.1 m³/day) *
Maximum Feed Flow Rate [gpm (m³/hr)]: 16 gpm (3.6 m³/hr)
Maximum Operating Temperature(°F): 113°F (45°C)
Applied Pressure(psi): 800 psi (55 bar)
Maximum Operating Pressure(psi): 1,200 psi (83 bar)
Maximum Pressure Drop(psi): 15 psi (1.0 bar)
pH Range, Continuous Operation: 2 - 11 **
pH Range, Short-Term Cleaning: 1 - 13
Maximum Feed Silt Density Index(SDI): 5 SDI
Free Chlorine Tolerance(ppm): < 0.1 ppm ***
Membrane Style: Drop-in Element
Membrane Material: Polyamide Thin-Film Composite
Feed Spacer: 28 mil
Active Area(sq.ft., ft²): 85.0 ft² (7.9 m²)
Outer Wrap: Hard fiberglass outer shell
