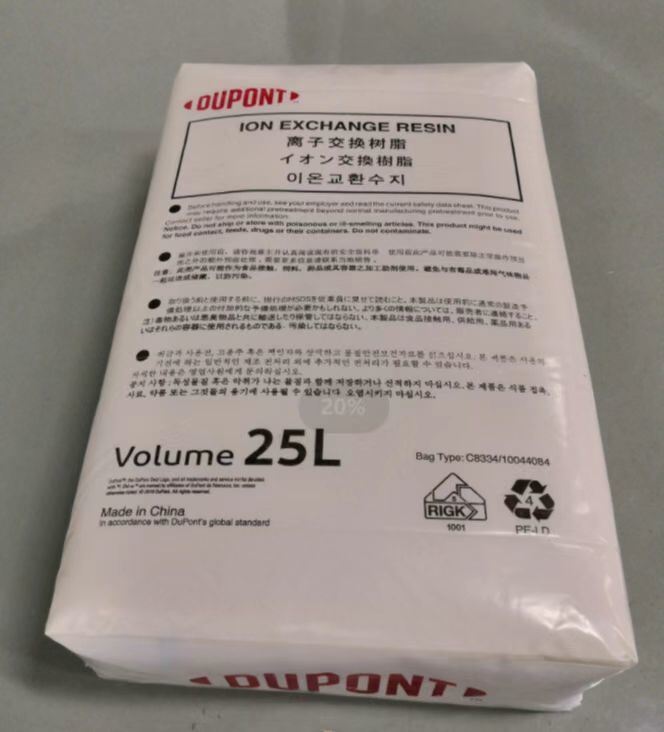

DuPont™ AmberLite™ IRA402 Cl Strong Base Anion Exchange Resin – Industrial Demineralization
Product Details:
| Place of Origin: | China |
| Brand Name: | Dupont |
| Certification: | ISO9001 |
| Model Number: | DuPont™AmberLite™ IRA402 Cl |
| Document: | IER-AmberLite-IRA402-Cl-PDS...en.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Whole Uncracked Beads: | ≥ 90% | Swelling: | ≤ 20% |
|---|---|---|---|
| Particle Density: | 1.07 G/mL | Temperature Range: | 5 – 100°C (Cl⁻ Form) |
| Total Exchange Capacity: | ≥ 1.20 Eq/L (Cl⁻ Form) | Water Retention Capacity: | 49.0 - 59.0% (Cl⁻ Form) |
Product Description
DuPont™ AmberLite™ IRA402 Cl is a Gaussian, gel-type, strong base anion exchange resin (Type I) with a long-established track record of reliable performance in industrial demineralization applications. This industry-staple resin provides an excellent balance of properties including high capacity, physical strength, silica selectivity, and long service life. It is particularly well-suited for co-current flow regenerated systems treating water with high percentages of silica, delivering efficient removal of strong and weak acids with minimal silica leakage.
- Industrial demineralization
- Treatment of water with high percentage of silica
- Removal of strong and weak acids
- Achieving lowest silica leakage in treated water
- Co-current regenerated systems
- Co-current (co-flow) regenerated systems
- Separate bed demineralization trains
For additional information on recommended minimum bed depth, operating conditions, and regeneration conditions for separate beds, refer to DuPont Tech Fact (Form No. 45-D01131-en).
| Property | Specification |
|---|---|
| Copolymer | Styrene-divinylbenzene |
| Matrix | Gel |
| Type | Strong base anion, Type I |
| Functional Group | Trimethylammonium |
| Physical Form | Amber translucent spherical beads |
| Property | Specification |
|---|---|
| Ionic Form (as shipped) | Cl⁻ |
| Total Exchange Capacity | ≥ 1.20 eq/L (Cl⁻ form) |
| Water Retention Capacity | 49.0 - 59.0% (Cl⁻ form) |
| Parameter | Specification |
|---|---|
| Uniformity Coefficient | ≤ 1.80 |
| < 300 μm | ≤ 1.0% |
| > 1180 μm | ≤ 5.0% |
For additional particle size information, refer to Document No. 45-D00954-en.
- Whole Uncracked Beads: ≥ 90%
- Swelling (Cl⁻ → OH⁻): ≤ 20%
- Particle Density: 1.07 g/mL
- Shipping Weight: 670 g/L
- Temperature Range:
- OH⁻ form: 5 - 60°C (41 - 140°F) †
- Cl⁻ form: 5 - 100°C (41 - 212°F)
- pH Range:
- Service Cycle: 1 - 14
- Stable: 0 - 14
† Operating at elevated temperatures (e.g., >60-70°C) may impact resin life. Consult DuPont technical representatives for details.
- Backwash Expansion: Estimated bed expansion as a function of backwash flow rate and temperature is shown in Figure 1.
- Pressure Drop: Estimated pressure drop as a function of service flow rate and temperature is shown in Figure 2 (valid for clean water and well-classified beds at service run start).
(Note: Refer to original document for graphical data.)
Users should review safety data sheets (SDS) and ensure compliance with local regulations.
