PP Melt-Blown Sediment Filter Cartridge 5 Micron 10 Inch Standard Size Food Grade Polypropylene RO Pre-Filtration
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Fenigal/OEM |
| Certification: | FDA, NSF 42, ISO 9001:2015 |
| Model Number: | PP-SF10-5M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 0.5-1.5 / Piece |
| Packaging Details: | Individual PE sealed bag, 25 pcs/export carton, palletized with shrink wrap |
| Delivery Time: | 3-5 working days for stock, 10-15 days for production |
| Payment Terms: | T/T, L/C, Western Union, PayPal |
| Supply Ability: | 100000 Pieces per Month |
|
Detail Information |
|||
| Filter Type: | Melt-Blown Sediment Cartridge | Filter Media: | 100% Polypropylene (PP) |
|---|---|---|---|
| Filtration Rating: | 5 Micron Absolute | Cartridge Length: | 10 Inch (254mm) |
| Outer Diameter: | 63mm (2.5 Inch) | Max Flow Rate: | 20 L/min (5.3 GPM) |
| Max Temperature: | 60°C (140°F) | End Configuration: | Double Open End (DOE) |
| Highlight: | PP melt-blown sediment filter cartridge,5 micron RO pre-filtration,10 inch food grade polypropylene filter |
||
Product Description

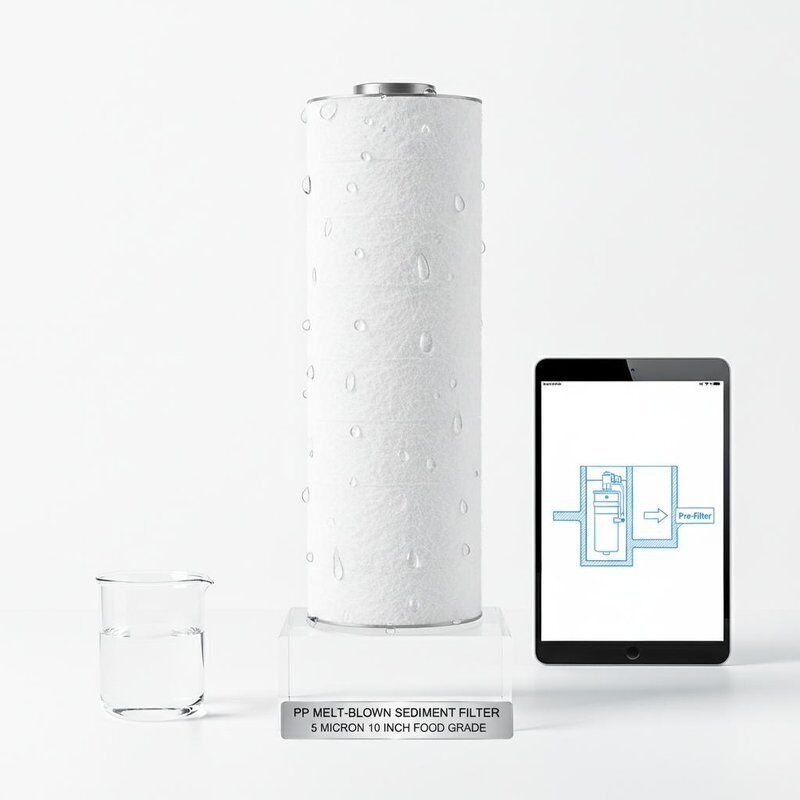

PP Melt-Blown Sediment Filter Cartridge 5 Micron
Our 5 micron melt-blown polypropylene sediment filter cartridge in 10 inch standard size is manufactured from 100% food grade polypropylene using advanced melt-blown technology. The gradient density structure provides progressive depth filtration with high dirt holding capacity, effectively removing sand, rust, silt, and suspended particles from water.
Key Features
- 5 micron absolute filtration rating for fine particle removal
- 10 inch standard size compatible with common filter housings
- 100% food grade polypropylene without binders or adhesives
- Gradient density depth filtration for longer service life
- High dirt holding capacity reducing replacement frequency
- Resistant to bacteria and chemical growth
- Wide chemical compatibility for diverse water sources
- NSF certified material for potable water safety
Technical Specifications
| Parameter | Specification |
|---|---|
| Filter Media | 100% Polypropylene (PP) Melt-Blown |
| Filtration Rating | 5 Micron (Absolute) |
| Cartridge Length | 10 inch (254mm) |
| Outer Diameter | 63mm (2.5") |
| Inner Diameter | 28mm (1.1") |
| Maximum Flow Rate | 20 L/min (5.3 GPM) |
| Maximum Operating Pressure | 4 bar (58 psi) |
| Maximum Operating Temperature | 60°C (140°F) |
| End Cap Configuration | Double Open End (DOE) |
| Material Certification | FDA, NSF 42 Compliant |
Applications
- RO system pre-filtration protection
- Whole house point-of-entry water filtration
- Commercial beverage and food processing
- Industrial cooling tower make-up water
- Car wash water recycling systems
- Swimming pool and spa filtration
- Agricultural drip irrigation pre-treatment
Packaged individually in sealed PE bag, 25 pieces per export carton. Custom micron ratings (1, 5, 10, 20, 50 micron) and sizes available. OEM private labeling with custom branding offered.
