Hydranautics Water Treatment Consumables , 4040 8040 Brackish Water Ro Membranes
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/NSF etc. |
| Model Number: | ESPA etc. |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 bag |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export PP Bag |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10,000 bags per month |
|
Detail Information |
|||
| Maximum Applied Pressure: | 600 Psig (4.16 MPa) | Maximum Operating Temperature: | 113°F (45°C) |
|---|---|---|---|
| Maximum Feedwater Turbidity: | 1.0 NTU | Maximum Feedwater SDI: | 5.0 |
| Maximum Feed Flow: | 16 GPM (3.6 M³/h) | Maximum Pressure Drop: | 10 Psi |
| High Light: | 8040 Water Treatment Consumables,4040 brackish water ro membranes,8040 brackish water ro membranes |
||
Product Description

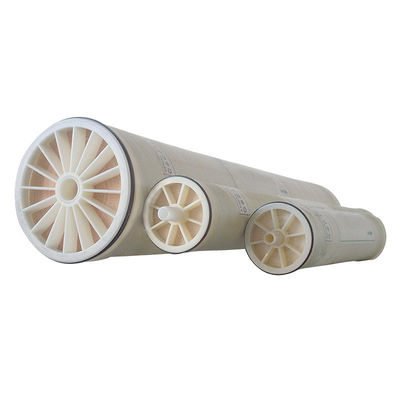

Hydranautics Water Treatment Consumables , 4040 8040 Brackish Water Ro Membranes

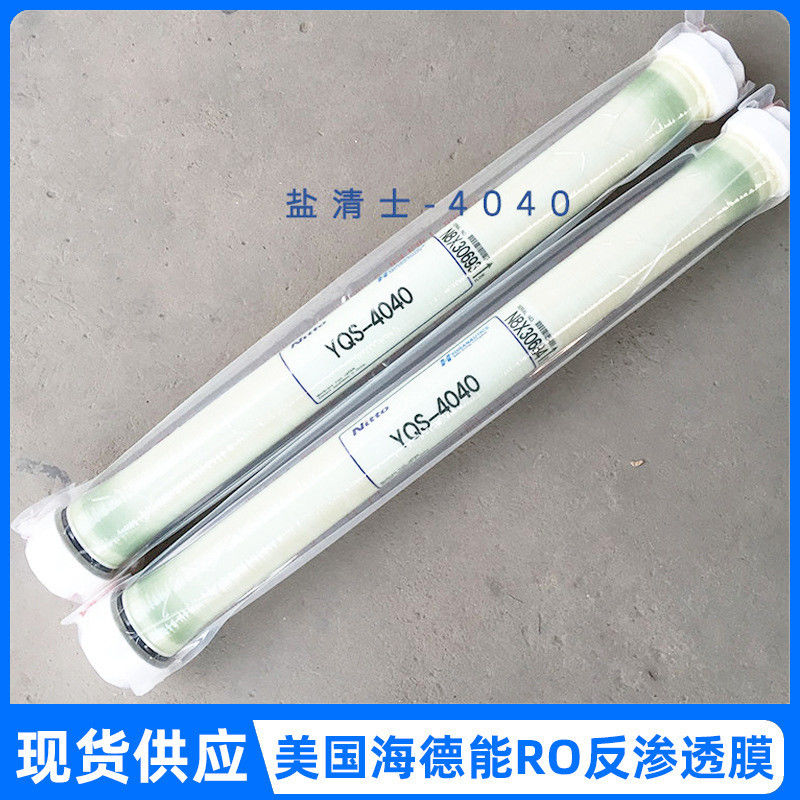

Hydranautics brackish/tap water RO membrane 4040 8040 ESPA1/CPA3/PROC/YQS4
CPA (Composite Polyamide) elements set the standard for RO membrane elements – over 600 million gallons per day of pure water are produced by CPA elements for global municipalities and industries. 4” and 8” configurations available.
CPA5-LD has minimized biofouling, minimized colloidal fouling and enhanced cleanability. When high performance counts, CPA membranes from Hydranautics set the standard for RO membrane elements. CPA membranes provide the highest salt rejection rates available - every element on every order for every customer.
CPA5-LD-4040 SPECIFICATIONS:
- Permeate Flow: 2,100 gpd (7.95 m³/d)
- Salt Rejection: 99.7% (99.5% minimum)
- Configuration: Low Fouling Spiral Wound
- Membrane Polymer: Composite Polyamide
- Membrane Active Area: 80ft2 (7.43m2)
- Feed Spacer: 34mil (0.864mm) with biostatic agent
The stated performance is initial (data taken after 30 minutes of operation), based on the following conditions:
- 1500 PPM NaCl solution
- 225 psi (1.55 MPa) Applied Pressure
- 77°F (25°C) Operating Temperature
- 15% Permeate Recovery
- 6.5 - 7.0 pH Range

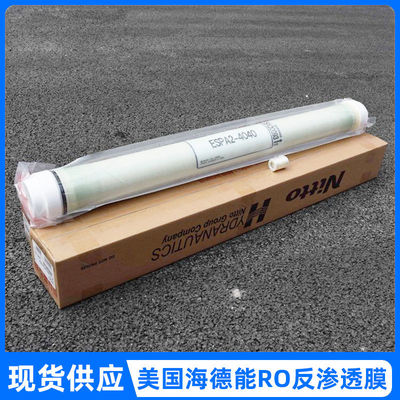

ESPA1 MEMBRANE SPECIFICATIONS:
- Permeate Flow: 12,000 gpd (45.4m3/d)
- Salt Rejection: 99.3% (99.0% minimum)
- Type Configuration: Spiral Wound
- Membrane Polymer: Composite Polyamide
- Membrane Active Area: 400ft2(37.1m2)
The stated performance is initial (data taken after 30 minutes of operation), based on the following conditions:
- 1500 PPM NaCl solution
- 150 psi (1.05 MPa) Applied Pressure
- 77ºF (25ºC) Operating Temperature
- 15% Permeate Recovery
- 6.5 - 7.0 pH Range
| Technical parameter for Vontron ULP21-4040 RO membrane: | ||||
| Performance | Stable property desalinization rate % | 99 | ||
| Lowest desalinization rate % | 98.5 | |||
| Volume GPD (m--3/d) | 2400(9.1) | |||
| Effective membrane area ft2(m2) | 85(7.9) | |||
| Test condition | Test pressure | 150pai(1.03Mpa) | ||
| Test fluid temperature | 25°C | |||
| Test fluid density (NaCl) | 1500ppm | |||
| Test fluid pH | 7.5 | |||
| Single RO membrane element recovery rate | 15% | |||
|
Extreme operating conditions |
The maximum operating pressure | 600psi(2.07Mpa) | ||
| The maximum water supply temperature | 45°C | |||
| The maximum water supply SDI | 5 | |||
| free chlorine concentration in water supply | 0.1ppm | |||
| Water supply pH scope when continuous running | 3~10 | |||
| Water supply pH scope when chemical cleaning | 2~12 | |||
| The maximum pressure drop of single RO membrane element | 15psi(0.1Mpa) | |||
