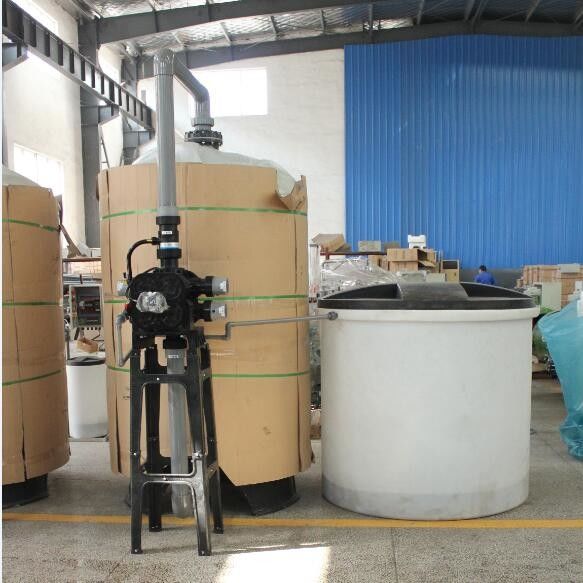

30TPH Industrial Water Treatment Softener With Salt Tank
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/NSF etc. |
| Model Number: | MFS-Soft |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 200 set per month |
|
Detail Information |
|||
| Technology: | Pressurized Filtration | Material: | FRP |
|---|---|---|---|
| Design: | Skid Mount/containerized | Water Temp.: | 5~35˚C |
| Water Flow Rate: | Up To 30m3/h.vessel | Voltage: | 380V,415V,220V,can Be Customized |
| Application: | Surface, Underground Water, Sewage Water Treatment | Size: | Dia.50cm~220cm |
| High Light: | 30TPH Industrial Water Softener,415V water treatment softener,30TPH water treatment softener |
||
Product Description
30TPH Industrial Water Treatment Softener With Salt Tank
Automatic or Manual Industrial Water Treatment Softener with Salt Tank 30T/H
Water Softeners
The Water Softeners are available in different sizes and materials, manually operated or fully Automatic, & ready to install. The Water Softening Plants are available as standard models or custom built versions for specific needs.
Water Softener - Applications
Water Softening Plants for Boiler feed water
Water Softening Systems for Cooling water make-up
Water Softening Plants for Food and beverages
Water Softening Plants for Hotels and restaurants
Water Softeners for Air conditioning plants
Water Softeners for Laundries
|
Hardness of raw water |
Less than 8mmol/L | Power supply | 220V/50HZ |
| Hardness of effluent | Less than 0.03mmol/L | Control mode | flow rate type, time type |
| Inlet water pressure | 0.2 to 0.4Mpa | Resin | 001×7 strong acidic cation-exchange |
| Free chlorine | Less than 0.3mg/L | Working ambient temperature | 5-50Centigrade |
| Suspended solid | Less than 0.5mg/L | System water temperature | 5-45Centigrade |
| Iron content | Less than 0.3mg/L | Relative humidity | Less than 95%(25Centigrade) |
working principle
WATER SOFTENING PROCESS :-
Softening is the ion exchange process, it is done through resin, the most common and probably the easiest method of removing hardness (that is calcium and magnesium) from water and suitable for utility purpose. As the name implies ion exchange is a process in which undesirable ions are exchanged for more desirable ions. The softening process consists of passing raw water containing hardness through a bed of cation resin in sodium form. The hardness ions Ca & Mg are taken up by resin and in exchange, the sodium ions are relinquished from the resin. This is called the service cycle, where the hard water is being softened.
CHEMICAL REACTION DURING SOFTENING PROCESS :-
Ca (HCO3)2 + Na2 R = RCa + NaHCO3
CaSO4 + Na2 R = RCa + Na2SO4MgCl2 + Na2
R = RMg + NaCl
REGENERATION PROCESS :-
Raw water will continue to get softened till the resin gets exhausted. Bringing back the resin to it original form is called regeneration. Softener resin is regenerated by sodium chloride- Nacl (Common salt) solution. The common salt solution is kept in the regeneration tank. During the regeneration process, salt solution is injected by the ejector tube into softener. The Nacl (salt solution) replaces ca, Mg (Hardness) from the resin, the regeneration is done every day or every few days or every week depending upon the usage and design of the water softener plant.
CHEMICAL REACTION DURING REGENERATION PROCESS :
RCa + NaCl = RNa + CaCl2
RMg + NaCl = RNa + MgCl2

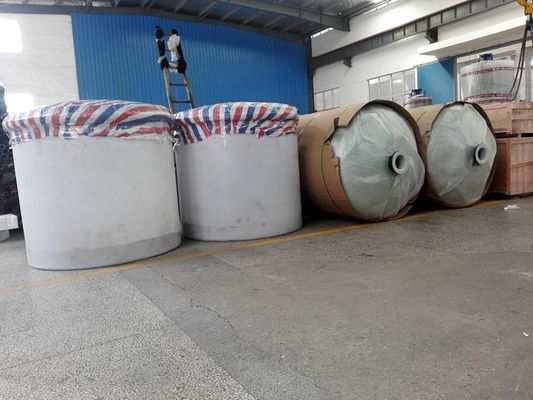

Packaging & Shipping
Package: wooden cases into container
Delivery: 7-10 working days after deposit received in advance
Shipping methods: FOB Shanghai or by air
