50m3/H Water Treatment Spare Parts , Runxin Automatic Multiport Valve
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/NSF etc. |
| Model Number: | F65,F71,~F96 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 10,000 set per month |
|
Detail Information |
|||
| Type: | Multimeter Filter Valves | Material: | Plastic Etc. |
|---|---|---|---|
| Design: | Compact | Water Temp.: | 5~35˚C |
| Voltage: | 120V, 220V | Flow: | 2m3/h~50m3/h |
| Configuration: | Automatic Or Manual | ||
| Highlight: | 50m3/H runxin automatic multiport valve,runxin automatic multiport valve,50m3/H Water Treatment Spare Parts |
||
Product Description

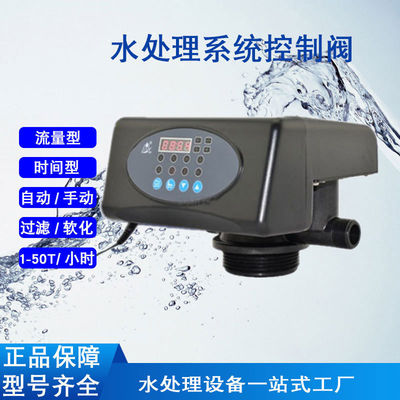

Runxin multiport automatic control valves 2m3/h~50m3/h for softener, media filters

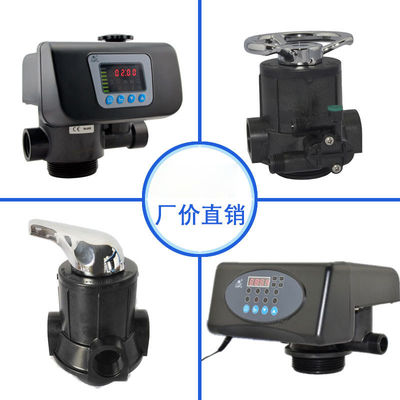

RUNXIN offers a comprehensive line of high-quality replacement multiport valves. We are an industry leading filter valve producer and can meet all of your filtration needs. Our selection of filter backwash valves is divided into manual an automatic types. All valves come with a high quality valve body, moving disk, valve set, and valve core. Our filter valves can be used in a variety of fields such as seawater desalinization, wastewater treatment, agricultural irrigation, paper production, metal processing, and swimming pool filtration. Thanks to a wide selection of product models and great customer service, RUNXIN is the source for your filter valve needs.
53502(F71B1) 53602B(F71B3)

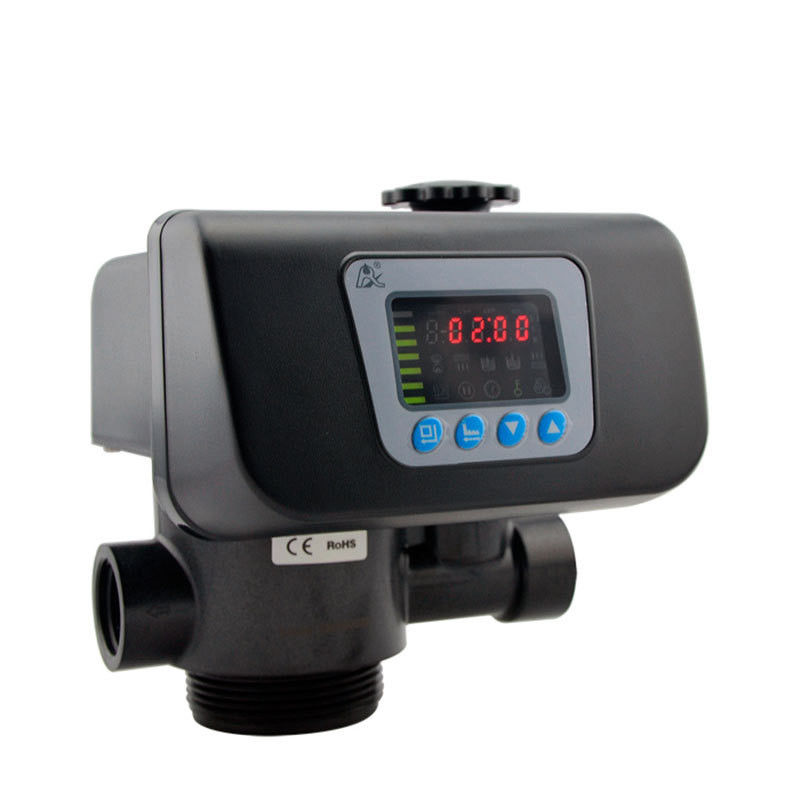

F71Q Automatic Multiport Filter Valves
Featuring a flow rate of 2m³/h, the F71Q automatic multiport filter valve adopts a planar and corrosion resistant gasket for opening and closing. The different functions such as service, backwash and fast rinsing can be realized through parameters modifications. The F71Q1 is a timer clock type while the F71Q3 is a meter type.
Parameters
| Model | F71Q1(55502)/ F71Q3(55602) |
| Mount type | Top mount |
| Inlet/outlet | 3/4" M |
| Drain | 3/4" M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 2m³/h |
| Filter tank | 6"--10" |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20 FTU |
| Power adapter | Input AC100~240V/50~60HZ OutputDC12V/1.5A |
| Application | Activated carbon filter, sand filter |
| Filter media | Quartz sand, activated carbon |

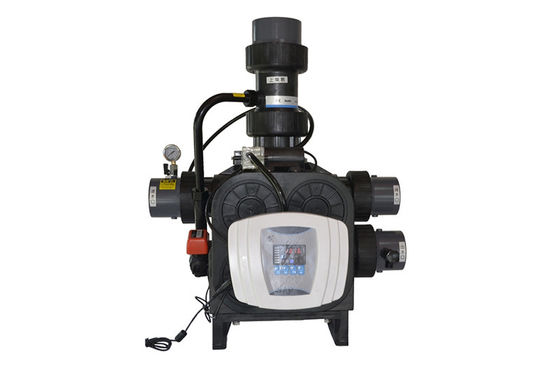

F96B1/B3 Automatic Filter Valves
Operating with a flow rate of 50m³/h, the F96B1/B3 automatic multiport filter valve comes with 4 ports in a T-configuration in the valve body. The automatic multiport filter valve adopts a planar and corrosion resistant gasket for opening and closing. Unfiltered water is brought in from the pump port, which is sent to different passages for treatment. The different flow passages are easily controlled through pushing or pulling the hydraulically balanced piston in the valve. This means the valve can be used as a service, backwash, and fast rinse valve. The F96B1 is a timer clock type while the F96B3 is meter type.
Parameters
| Model | F96B1/B3(53550/53650) |
| Regeneration | Time clock type / meter type |
| Mount type | Side mount |
| Inlet/outlet | DN80 |
| Drain | DN80 |
| Mounting base | Side mount, Top and bottom distributor basketDN100 |
| Riser pipe | Side mount, Top and bottom distributor basketDN100 |
| Flow rate | 50m³/h |
| Filter tank | 36"--48" |
| Water pressure | 0.2-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20 FTU |
| Power adapter | InputAC100~240V/50~60HZ OutputDC24V/4A |
| Application | Activated carbon filter, sand filter |
| Filter media | Quartz sand, activated carbon... |
F65P Automatic Multiport Softener Valves
The flow rate of the F65P automatic multiport softener valve is 2m³/h. It is a simple softening valve that adopts a planar and corrosion resistant gasket for opening and closing. Service, backwash, brine and slow rinse, brine refill, and fast rinse functions can be realized through parameter modifications. The F65P1 is a timer clock type while F65P3 is a meter type.
Parameters
| Model | F65P1/ P3(64602/64602) |
| Regeneration | Time clock type / meter type |
| Mount type | Top mount |
| Inlet/outlet | 3/4"F |
| Drain | 1/2"M |
| Brine line connector | 3/8"M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 2m³/h |
| Filter tank | 6"--12" |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | Down-flow regeneration＜5FTU |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
| Application | Ion exchange equipment, water treatment system, RO pretreatment system |
F96 Automatic Multiport Softener Valves
Featuring a flow rate of 50m³/h, the F96A1/A3 comes with 4 ports in a T-configuration in the valve body. The unfiltered water is brought in from pump port, which is sent to different passages for treatment. The different flow passages are easily controlled through pushing or pulling the hydraulically balanced pistons in the valve, realizing different functions such as backwash, brine and slow rinse, fast rinse and brine refill. The F96A1 is a timer clock type while the F96A3 is a meter type.
Parameters
| Model | F96A1/A3(63550/63650) |
| Regeneration | Time clock type / meter type |
| Mount type | Side mount |
| Inlet/outlet | DN80 |
| Drain | DN80 |
| Brine line connector | 3/4" M |
| Mounting base | Side mount, Top and bottom distributor basket DN100 |
| Riser pipe | Side mount, Top and bottom distributor basket DN100 |
| Flow rate | 50m³/h |
| Filter tank | 48"--63" |
| Water pressure | 0.2-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜5FTU |
| Relative humidity | ≤95%(25℃) |
| Power adapter | Input AC100~240V/50~60HZ Output DC24V/4A |
Material:
The valve body is made of ABS plastic reinforced with 10% glass fiber, ensuring it is high-impact resistant, heat-resisting and flame retardant.
The core is made of a wear and corrosion resistant ceramic material with a long service life.
Features:
1. Easy to install
The valve comes with a support, making it easy to be installed.
2. No outage worries
Data settings will be preserved in the event of a power outage and will continue when power supply returns back to normal. Users only need to reset the time.

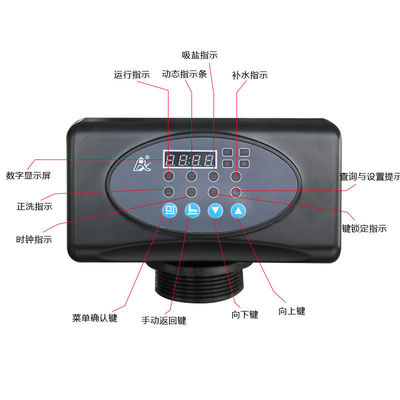

3. Buttons lock
If there is no operation within one minute, the buttons will automatically lock, preventing unintended operation.
4. Signal output
The main control board features a signal output connector to control external wiring.
5. Interlock function
Due to the interlock functions, only one valve will stay in the rinsing or regeneration status while the others are operating. There are several valves in a full system.
6. Remote control available
The external signal is received by a connector, and through the use of PLC or computer, the filter valve is remotely controlled.
7. Pressure relief output
When the automatic filter valve switches the flows, the pressure between water feeding and control valve will be relieved to guarantee smooth operation of booster pump and control valve.
8. All parameters can be adjusted based on your needs.
The parameters can be modified during process operation according to water quality and usage.
