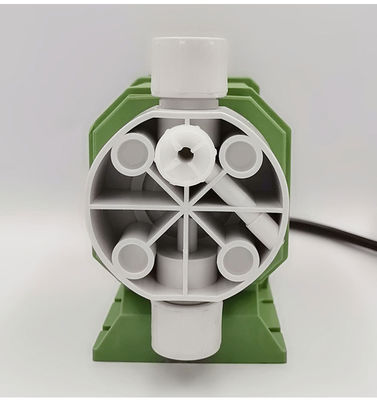

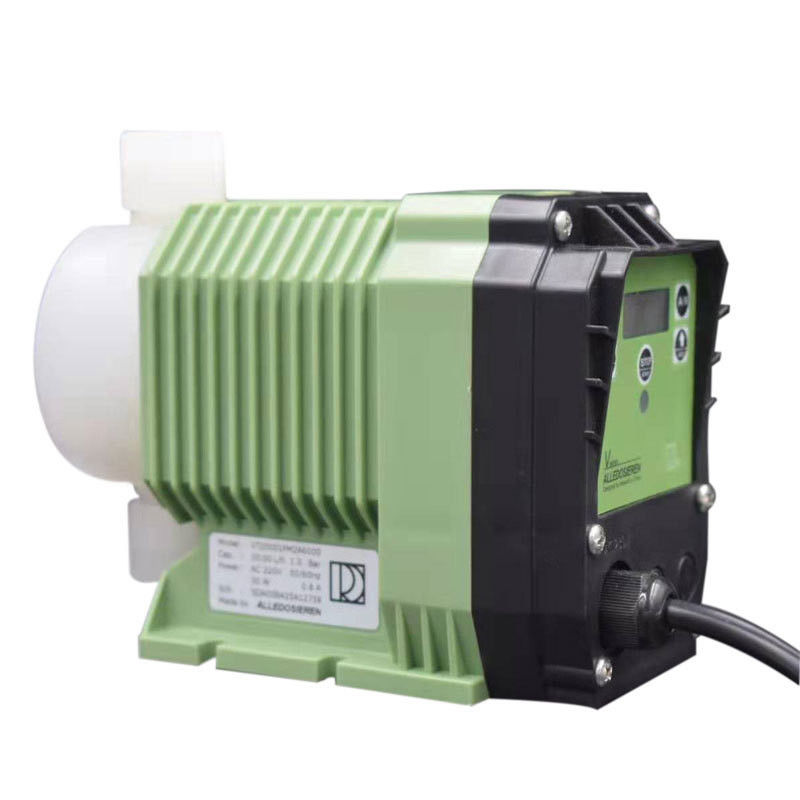

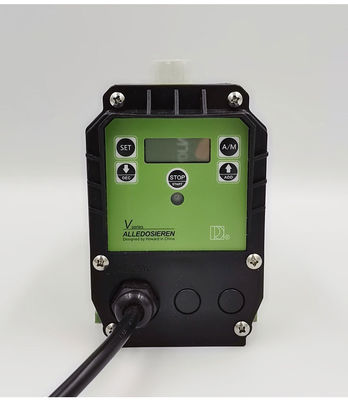

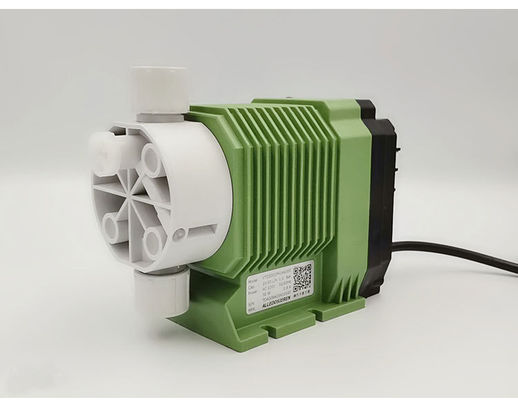

Diaphragm Chlorine Solenoid Metering Pump For Chemical Dosing
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/NSF etc. |
| Model Number: | CMF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 10,000 set per month |
|
Detail Information |
|||
| Type: | Multistage Water Pump | Material: | Plastic Etc. |
|---|---|---|---|
| Design: | Compact | Water Temp.: | 5~35˚C |
| Element: | 1-8/vessel | Voltage: | 120V,220V |
| Flow: | 0.48~31L/h | Configuration: | High Pressure, Booster |
| High Light: | 31L/h solenoid metering pump,220V solenoid metering pump,31L/h chemical dosing pump |
||
Product Description
Diaphragm Chlorine Solenoid Metering Pump For Chemical Dosing
High quality diaphragm chlorine solenoid metering pump for water treatment chemical dosing
V Series Dosing Pump
Flow:0.48～15.20 L/h
Pressure:8.2～1.8 Bar
★ Digital display
★ Transparent pump head
★ Adjust the flow by press key
★ Cycle timer for manual type
★ Optional automatic control such as pulse or analog
| Model |
Flow L/h |
Pressure Bar |
Stroke N/m |
Suction m |
Power W |
Weight KG |
Hose mm |
mm |
Voltage VAC |
| 00508 | 0.48 | 8.2 | 90 | 1.2 | 12 | 2.9 | 4*6 | G1/2 | 220 |
| 01008 | 1.08 | 8.2 | 90 | 1.2 | 12 | ||||
| 02008 | 2.16 | 8.2 | 120 | 1.5 | 12 | ||||
| 03008 | 3.12 | 7.6 | 120 | 1.5 | 12 | ||||
| 04006 | 3.60 | 6.8 | 120 | 1.5 | 12 | ||||
| 05006 | 5.04 | 6.2 | 160 | 1.5 | 16 | ||||
| 06005 | 6.00 | 4.8 | 160 | 1.5 | 16 | ||||
| 08004 | 8.16 | 3.8 | 160 | 1.5 | 16 | ||||
| 09003 | 9.00 | 3.5 | 160 | 1.5 | 24 | ||||
| 10004 | 10.20 | 3.2 | 160 | 1.5 | 24 | ||||
| 12003 | 12.48 | 2.8 | 180 | 1.8 | 30 | ||||
| 15002 | 15.20 | 1.8 | 180 | 1.8 | 30 |
C Series Dosing Pump
Flow:1.08～31.20 L/h
Pressure:22.7～1.8 Bar
★ LCD display
★ Standard cycle timer, Optional 7 days timer
★ Compile control signal without converter
★ Optional RS485 by Modbus-RTU
| Model |
Flow L/h |
Pressure Bar |
Stroke N/m |
Suction m |
Power W |
Weight KG |
Hose mm |
mm |
Voltage VAC |
| 01023 | 1.08 | 22.7 | 60 | 1.5 | 35 | 4.5 | 4*6 | G1/2 | 220 |
| 02018 | 2.16 | 17.3 | 60 | 1.5 | 35 | ||||
| 04015 | 4.20 | 14.1 | 90 | 1.5 | 40 | ||||
| 06011 | 6.80 | 11.3 | 90 | 1.5 | 40 | ||||
| 09009 | 9.00 | 8.5 | 120 | 1.5 | 40 | ||||
| 12007 | 12.48 | 6.8 | 120 | 1.8 | 40 | ||||
| 16005 | 16.80 | 4.2 | 160 | 2.0 | 49 | 7*10 | |||
| 20003 | 21.60 | 3.5 | 160 | 2.0 | 49 | ||||
| 26003 | 26.50 | 2.5 | 160 | 2.0 | 49 | ||||
| 30002 | 31.20 | 1.8 | 160 | 2.0 | 49 |
