Activated Carbon FRP Pressure Vessel Tank For Multimedia Filter

Activated Carbon FRP Pressure Vessel Tank For Multimedia Filter

Product Details:

Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE/UL/NSF etc.
Model Number: FRP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized
Delivery Time: 15~30 days
Payment Terms: T/T, Western Union, Paypal etc.
Supply Ability: 10,000 set per month
Get Best Price Contact Now

Detail Information
Techno Filtrationlogy: Pressure Vessel Material: FRP
Design: Skid Mount/containerized Water Temp.: 5~35˚C
Element: 1-8/vessel Voltage: 380V,415V,220V,can Be Customized
Dimension: 40",80",120" Etc. Size: Dia.2.5"/4"/8"
Control: Electronic,Manual/PLC
High Light:

380V FRP pressure vessel tank

,

FRP pressure vessel tank

,

FRP activated carbon filter tank

Product Description

Activated Carbon FRP Pressure Vessel Tank For Multimedia Filter

FRP pressure vessel Activated Carbon Water Filter Tank For multi-media filter and softerner

Quick Details:
(1) Frp tank liner - Polyethylene (PE) seamless one-piece tank liner
(2) Cover- Continuous strands of fiber-glass with high strength epoxy resin
(3) Bottom base – PP round or FRP reinforced tripod base
(4) Opening – 2.5" & 4" precision injected model with threaded opening for 6 " to 36" diameter tanks
(5) Opening – 6 "Aluminum flange (anti-corrosion coating) opening for 36" to 72" diameter tanks



FRP Tank Application:

All feed water and waste water treatment application, included multi-media filter and softener.
1). Industrial Water Treatment with multi-layer media
2). Water Softening
3). Centralized Filtration System for high rise residential and commercial buildings such as residence , high rise office building, hotels and resorts.
4). Aquaculture, fish farming filtration system
5). Many other water filtration and treatment applications.
6). Widely used in factory, Enterprises, government, hotel, motel, restaurant, residence as storage facility.
7). Use it as equipment in drinking water treatment and fire water supply



PE liner: Rotation moulding or blowing one-piece seamless without leakage.

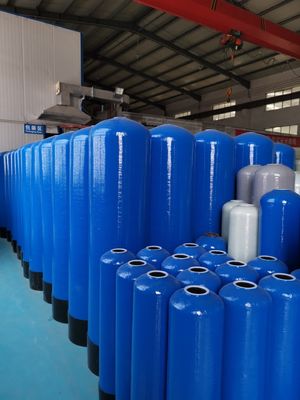

Activated Carbon FRP Pressure Vessel Tank For Multimedia Filter 0



Operating Condition

Operating Pressure: 150psi

Operating Temperature : 49 degree

Test

250.000times of cycle test from 10psi to 150psi withstanding pressure

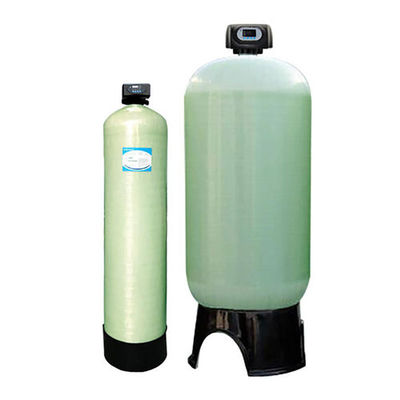

Activated Carbon FRP Pressure Vessel Tank For Multimedia Filter 1

Color

Natural Blue ,Gray Black, others are available on request.



NO. specification volume top opening bottom opening LA LB LC × D
Inch mm L mm mm mm mm mm
1 7×13 φ180×335 6.3 2.5”NPSM   334 320 304 198 181
2 7×17 φ180×430 8.6 2.5”NPSM   428 414 398 292 181
3 7×35 φ180×905 20.1 2.5”NPSM   904 890 874 768 181
4 8×17 φ205×445 11.3 2.5”NPSM   446 432 416 292 206
5 8×35 φ205×905 24.0 2.5”NPSM   905 891 875 751 206
6 8×44 φ205×1130 32.5 2.5”NPSM   1131 1117 1101 977 206
7 9×35 φ230×905 32.0 2.5”NPSM   905 891 875 734 232
8 9×42 φ230×1085 39.0 2.5”NPSM   1085 1071 1055 914 232
9 9×48 φ230×1230 44.7 2.5”NPSM   1232 1218 1202 1061 232
10 10×17 φ255×445 17.8 2.5”NPSM   447 433 417 259 257
11 10×35 φ255×905 38.6 2.5”NPSM   903 889 873 715 257
12 10×44 φ255×1130 49.5 2.5”NPSM   1130 1116 1100 942 257
13 10×54 φ255×1390 61.9 2.5”NPSM   1390 1376 1360 1202 257
14 12×52 φ300×1340 84.8 2.5”NPSM   1342 1332 1312 1115 305
15 12×65 φ300×1650 106.3 2.5”NPSM   1650 1640 1620 1425 305
16 13×54 φ330×1400 103.6 2.5”NPSM   1400 1390 1370 1155 334
17 14×65 φ355×1670 145.6 2.5”NPSM   1671 1661 1641 1410 360
18 14×65 φ355×1670 145.6 4”-8UN   1670 1661 1641 1410 360
19 16×65 φ400×1670 187.7 2.5”NPSM   1672 1662 1642 1380 410
20 16×65 φ400×1670 187.7 4”-8UN   1671 1662 1642 1380 410
21 16×65 φ400×1670 187.7 4”-8UN 4”-8UN 1671 1662 1642 1380 410
22 18×65 φ450×1670 237.0 4”-8UN   1670 1640 1612 1310 465
23 18×65 φ450×1670 237.0 4”-8UN   1670 1640 1612 1310 465
24 21×69 φ530×1750 316 4”-8UN   1750 1563 1685 1195 540
25 21×69 φ530×1750 316 4”-8UN 4”-8UN 1750 1563 1545 1195 540
26 24×72 φ600×1850 441 4”-8UN   1850 1750 1715 1330 612
27 24×72 φ600×1850 421 4”-8UN 4”-8UN 1850 1680 1645 1260 612
28 24×87 φ600×2200 520 4”-8UN 4”-8UN 2200 2030 1995 1610 612
29 30×72 φ750×1850 676 4”-8UN   1850 1750 1715 1240 765
30 30×72 φ750×1850 640 4”-8UN 4”-8UN 1850 1670 1635 1160 765
31 30×87 φ750×2200 790 4”-8UN 4”-8UN 2200 2010 1975 1500 765
32 36×72 φ900×1850 857 4”-8UN 4”-8UN 1850 1600 1554 1000 918
33 36×94 φ900×2400 1093 6”flange 6”flange 2400 2150 2044 1370 918
34 40×72 φ1000×1850 1046 4”-8UN 4”-8UN 1850 1605 1559 945 1020
35 40×94 φ1000×2400 1478 6”flange 6”flange 2400 2155 2109 1495 1020
36 48×72 φ1200×1850 1202 6”flange 6”flange 1850 1558 1451 595 1224
35 48×94 φ1200×2400 1824 6”flange 6”flange 2400 2108 2001 1145 1224
36 60×83 φ1500×2100 2158 6”flange 6”flange 2100 1780 1670 630 1530
37 60×94 φ1500×2400 2688 6”flange 6”flange 2400 2080 1970 930 1530
38 63×83 φ1600×2100 2580 6”flange 6”flange 2100 1780 1670 630 1620
39 63×94 φ1600×2400 3150 6”flange 6”flange 2400 1788 1970 1620 1620
40 72×94 φ1800×2400 3561 6”flange 6”flange 2400 2088 1908 1620 1836

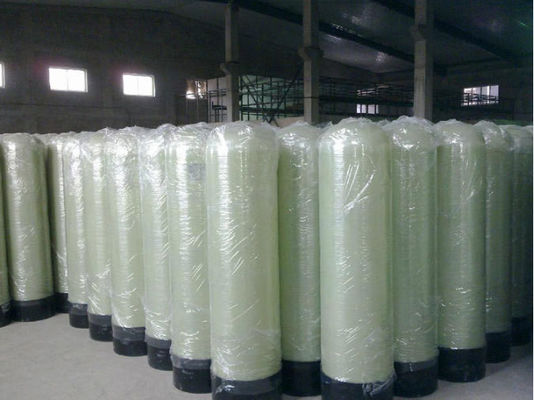

Activated Carbon FRP Pressure Vessel Tank For Multimedia Filter 2

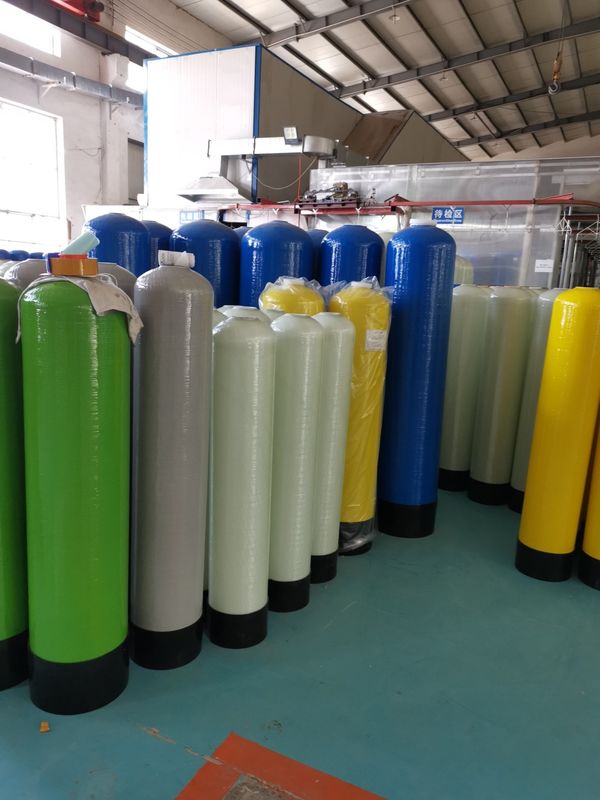

Activated Carbon FRP Pressure Vessel Tank For Multimedia Filter 3
