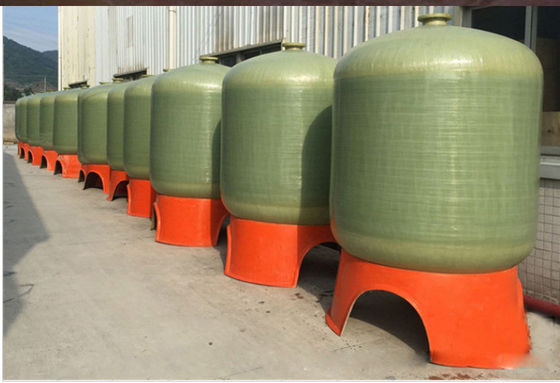

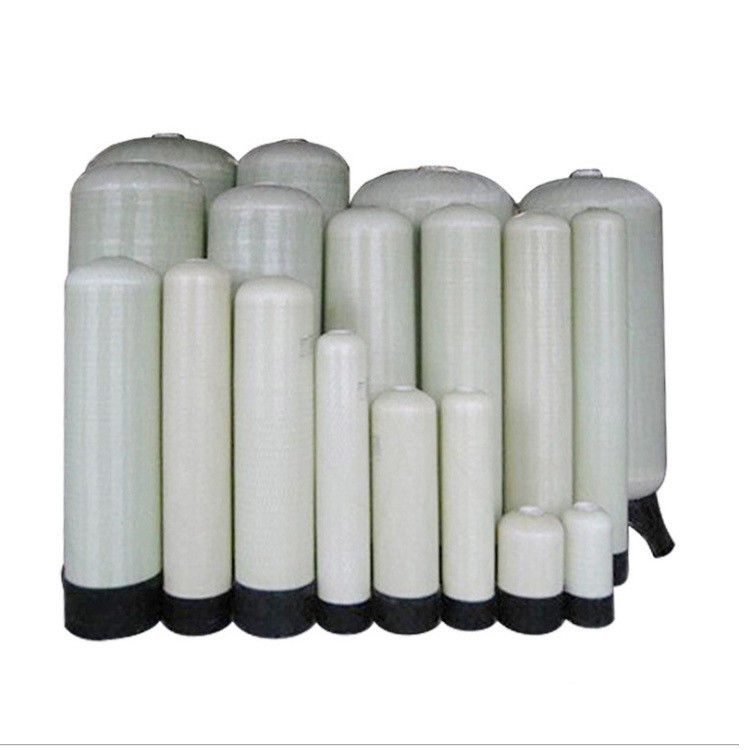

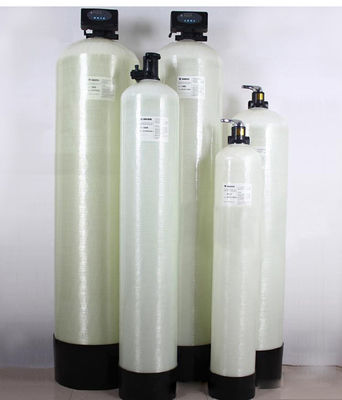

Fiber Glass Pressure Vessel 150PSI FRP Water Softener Tank
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/UL/NSF etc. |
| Model Number: | FRP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 10,000 set per month |
|
Detail Information |
|||
| Techno Filtrationlogy: | Pressure Vessel | Material: | FRP |
|---|---|---|---|
| Design: | Skid Mount/containerized | Water Temp.: | 5~35˚C |
| Element: | 1-8/vessel | Voltage: | 380V,415V,220V,can Be Customized |
| Dimension: | 40",80",120" Etc. | Size: | Dia.2.5"/4"/8" |
| Control: | Electronic,Manual/PLC | ||
| High Light: | 1.0Mpa FRP water softener tank,FRP water softener tank,150PSI water pressure vessel tank |
||
Product Description
Fiber Glass Pressure Vessel 150PSI FRP Water Softener Tank
FRP water softener tanks Fiber Glass Pressure Vessel Filter Tanks For Water Treatment System Parts
· Design pressure 150 psi
· Food grade HDPE inner liner.
· Fatigue test: 100000 times.
· Burst test: 4 times of its design pressure.
· Model: 813-8079.
· Working temperature: 1 °C - 49 °C (34°F - 120°F).
· Warranty:two years warranty for housing body against industry defects; one year warranty for spare parts.
Feature
· Quality assurance
o Burst test with 4 times of its design pressure.
o 100,000 times fatigue test.
· Material
o Fiberglass: 8" – 16" tanks use 600 tex fiberglass, with strong better pressure coefficient and safety factor.
o Epoxy: small tanks use NanYa 127 – Chinese largest company, large than 3672 tanks use American DOW Epoxy 383.
o Harder Germany BYK 502.
o Base: Reinforced PP for small tank base, FRP material for large tank.
o Opening: 2.5"and 4" engineering plastic threaded tank opening, 6" aluminium alloy flange opening.
| Model | Top opening | Bottom opening | Dia ×height(mm) | Volume (m3) | Weight | Suggestion flow(m3/h) |
| (KG) | ||||||
| FRP-818 | 2.5"thread | No | 200×435 | 0.02 | 2.8 | 0.1~0.3 |
| FRP-835 | 2.5"thread | No | 200×895 | 0.042 | 4 | 0.2~0.4 |
| FRP-844 | 2.5"thread | No | 200×1120 | 0.052 | 5 | 0.2~0.5 |
| FRP-1035 | 2.5"thread | No | 250×895 | 0.066 | 5.5 | 0.4~0.8 |
| FRP-1044 | 2.5"thread | No | 250×1120 | 0.083 | 7 | 0.4~1.0 |
| FRP-1054 | 2.5"thread | No | 250×1380 | 0.101 | 8.3 | 0.5~1.2 |
| FRP-1065 | 2.5"thread | No | 250×1550 | 0.12 | 9 | 0.6~1.5 |
| FRP-1252 | 2.5"thread | No | 300×1330 | 0.131 | 9 | 1.0~2.0 |
| FRP-1265 | 2.5"thread | No | 300×1640 | 0.161 | 11.5 | 1.5~2.5 |
| FRP-1354 | 2.5"thread | No | 325×1390 | 0.172 | 11.5 | 1.8~2.5 |
| FRP-1465B | 4''thread | No | 350x1660 | 0.247 | 15.5 | 2.0~3.0 |
| FRP-1465 | 2.5"thread | No | 350×1660 | 0.247 | 15.5 | 2.0~3.0 |
| FRP-1665 | 2.5"thread | No | 400×1660 | 0.307 | 19 | 2.5~4.5 |
| FRP-1665B | 4"thread | No | 400×1660 | 0.307 | 19 | 2.5~4.5 |
| FRP-1865 | 4"thread | No | 450×1660 | 0.375 | 21 | 4.5~5.0 |
| FRP-1865B | 4"thread | 4"thread | 450×1480 | 0.375 | 21 | 3.5~4.8 |
| FRP-2169 | 4"thread | 4"thread | 525x1570 | 0.482 | 34 | 3.0~5.0 |
| FRP-2188 | 4"thread | 4"thread | 525x2020 | 0.606 | 40 | 3.0~5.0 |
| FRP-2472 | 4"thread | 4"thread | 600×1670 | 0.666 | 41 | 4.0~6.0 |
| FRP-2488 | 4"thread | 4"thread | 600×2020 | 0.792 | 54 | 5.0~9.0 |
| FRP-3072 | 4"thread | 4"thread | 750×1660 | 1.041 | 56 | 6.0~10.0 |
| FRP-3088 | 4"thread | 4"thread | 750×2010 | 1.238 | 74 | 8.0~13.0 |
| FRP-3672 | 4"thread | 4"thread | 900×1635 | 1.498 | 82 | 10.0~15.0 |
| FRP-3688 | 6"flange | 6"flange | 900×1985 | 1.78 | 105 | 13.0~23.0 |
| FRP-3696 | 6"flange | 6"flange | 900×2135 | 1.944 | 116 | 15.0~25.0 |
| FRP-4072 | 4"thread | 4"thread | 1000×1535 | 1.85 | 92 | 16.0~24.0 |
| FRP-4072B | 6"flange | 6"flange | 1000×1535 | 1.85 | 92 | 16.0~24.0 |
| FRP-4088 | 6"flange | 6"flange | 1000×1930 | 2.2 | 115 | 20.0~25.0 |
| FRP-4096 | 6"flange | 6"flange | 1000×2130 | 2.4 | 118 | 22.0~28.0 |
| FRP-4872 | 6"flange | 6"flange | 1200×1600 | 2.664 | 110 | 25.0~30.0 |
| FRP-4896 | 6"flange | 6"flange | 1200×2150 | 3.456 | 180 | 30.0~40.0 |
| FRP-6096 | 6"flange | 6"flange | 1500×2100 | 5.4 | 280 | 40.0~60.0 |
| FRP-7296 | 6"flange | 6"flange | 1750×2035 | 6.936 | 360 | 50.0~80.0 |
| FRP-8096 | 6"flange | 6"flange | 2000×2070 | 9.6 | 480 | 70.0~100.0 |
Application
FRP tanks are ideal used for water softening equipment in food processing plants, hospitals, laundries, manufacturing plants, office campuses and restaurants, condominiums, boiler feedwater, car washes, institutions, municipal, multimedia filters, carbon filters, iron filters, calcite filters and specialty media filters.
