CMF Horizontal Multistage Centrifugal Pump , LX Stainless Steel Centrifugal Pump

CMF Horizontal Multistage Centrifugal Pump , LX Stainless Steel Centrifugal Pump

Product Details:

Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE/NSF etc.
Model Number: CMF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized
Delivery Time: 15~30 days
Payment Terms: T/T, Western Union, Paypal etc.
Supply Ability: 10,000 set per month
Get Best Price Contact Now

Detail Information

Type: Multistage Water Pump Material: SS304/SS316L
Design: Skid Mount/containerized Water Temp.: 5~35˚C
Element: 1-8/vessel Voltage: 380V,415V,220V,can Be Customized
Flow: Dia.2.5"/4"/8" Configuration: High Pressure, Booster
Highlight:

CMF horizontal multistage centrifugal pump

,

SS304 horizontal multistage centrifugal pump

,

LX stainless steel centrifugal pump

Product Description

CMF Series Horizontal Multistage Centrifugal Pump, LX Stainless Steel Centrifugal Pump:

( LX Pump: Top Quality Pump In China )



1) Feature:

Stainless Steel Centrifugal Pump: CMF series is pump casing-oriented multistage stainless steel pump; the liquid part is made of SUS304,. Under processing of advanced welding equipment, heat treatment, the stress caused by end-cut plate in tension and press forming is eliminated to make in high strength, no deformation, long life, safe and reliable usage; Applied mechanical seal type ensure watertight in long-time continuous operation. The material of frame is aluminum; it is under low-noise and less-vibration and durability. Insulation class B, Protection IPX55, continuous duty; Single-phase with thermal protector from T1 to ensure safety and convenience.

Certificate: 1. China CCC certificate

2. TUV certificate Germany

2) Application:

1. Air-conditioning system

2. Water treatment

3. Pressure boosting for the water on processing line.

4. Heating and cooling water on industrial processing line

5. Air freshen, moistening equipment (soft water)

6. Water supply and pressure boosting (drinking water, weak chlorine water)

7. Fertilization/metering system

8. Aquaculture

9. Convey thin, clean, non-flammable and non-explosive liquid without solid granules and fibers

3) Operation conditions:

1. Liquid temperature: +5℃-+60℃

2. Max ambience temperature: +50℃

3. Max pressure: 10 bar

4. Max suction head: No self-priming

5. Maximum inlet pressure is limited by the maximum operating pressure

4) Guide for model selection:

1. Request for the flow and pressure

2. The mechanical seal configurations is selective for normal water, pure water or hot water type.

3. Applied region’s voltage and frequency: single-phase: 220-240V/50Hz;220V-240V/60Hz;110-120V/60Hz is available; three-phase: 380-415V/50Hz;380-415V/60Hz is available.

4. Applied region’s request for safety certific4. Confirm the bore of outlet and inlet.

5. Plug’s type and length (no plug, Chinese plug. Europe plug, UL plug is available)



1. CMF2 series

model

power

P2(kw)

Q

(m3/h)

1.0 1.5 2.0 2.5 3.0 3.5 Packing size (kg)
220V/50Hz 380V/50Hz
CMF2-20 CMF2-20T 0.37

H

(m)

18 16 14 13 11 10 435*215*290 9.0
CMF2-30 CMF2-30T 0.37 27 24 21 20 17 14 435*215*290 9.5
CMF2-40 CMF2-40T 0.55 35 32 38 26 23 17 435*215*290 10
CMF2-50 CMF2-50T 0.55 43 40 35 33 28 22 435*215*290 10
CMF2-60 CMF2-60T 0.75 50 48 42 38 32 25 435*215*290 10.5




2. CMF4 series

model

power

P2(kw)

Q

(m3/h)

2.0 3.0 4.0 5.0 6.0 7.0 Packing size (kg)
220V/50Hz 380V/50Hz
CMF4-20 CMF4-20T 0.55

H

(m)

18 16 15 13 10 7 435*215*290 10
CMF4-30 CMF4-30T 0.75 27 25 22 19 15 10 435*215*290 11
CMF4-40 CMF4-40T 0.75 36 33 30 26 20 14 435*215*290 11.5
CMF4-50 CMF4-50T 1.0 44 41 38 32 26 20 435*215*290 12
CMF4-60 CMF4-60T 1.1 53 50 45 40 33 24 435*215*290 12.5




3. CMF8 series

model

power

P2(kw)

Q

(m3/h)

4.0 5.0 6.0 7.0 8.0 9.0 10 Packing size (kg)
220V/50Hz 380V/50Hz
CMF8-10 CMF8-10T 0.55

H

(m)

15 14 13 12 10 9 8 490*275*315 10.5
CMF8-15 CMF8-15T 0.75 25 23 22 20 17 14 12 490*275*315 12.0
CMF8-20 CMF8-20T 1.0 30 28 26 24 20 18 16 490*275*315 14.0
CMF8-25 CMF8-25T 1.5 43 37 34 30 27 24 20 490*275*315 17.0
CMF8-30 CMF8-30T 1.85 44 42 38 36 30 27 24 490*275*315 21.5
CMF8-35 CMF8-35T 2.2 56 51 48 44 37 32 28 490*275*315 23.0




4. CMF12 series

model

power

P2(kw)

Q (m3/h) 6.0 7.0 8.0 9.0 10 11 12 13 14 Packing size (kg)
220V/50Hz 380V/50Hz
CMF12-10 CMF12-10T 1.0

H

(m)

19 18 17.5 16 15.5 14 13.5 12 10.5 490*275*315 12.0
CMF12-15 CMF12-15T 1.5 28 27 26 25 24 22 20 18 15 490*275*315 13.5
CMF12-20 CMF12-20T 1.85 38 36 35 32 31 29 28 24 20 490*275*315 21.0
CMF12-25 CMF12-25T 2.2 47 45 43 41.5 39 36 33.5 30.5 27 490*275*315 24.0
* CMF12-30T 3.0 53.5 52 50 47.5 45 42 39 35 30 550*275*300 27.0




5. CMF16 series

model

power

P2(kw)

Q (m3/h) 8 10 12 14 16 18 20 22 24   (kg)
220V/50Hz 380V/50Hz
CMF16-10 CMF16-10T 1.0

H

(m)

12 11.5 11 10.5 10 9 8 7 6   13.5
CMF16-20 CMF16-20T 1.5 24 23 22 21 20 19 16 14 12   17
CMF16-30 CMF16-30T 2.2 38 36 34 33 30 28 26 23 20   23




6. CMF20 series

model

power

P2(kw)

Q (m3/h) 10 12 14 16 18 20 22 24 26 28   (kg)
220V/50Hz 380V/50Hz
CMF20-10 CMF20-10T 1.0

H

(m)

13 12.5 12 11.5 11 10.5 10 9 8.5 7.5   20
CMF20-20 CMF20-20T 1.85 25 24 23 22 21 20 18 16 14 12   22
* CMF20-30T 3.0 39 38 36 35 33 31.5 30 27 24 21   25

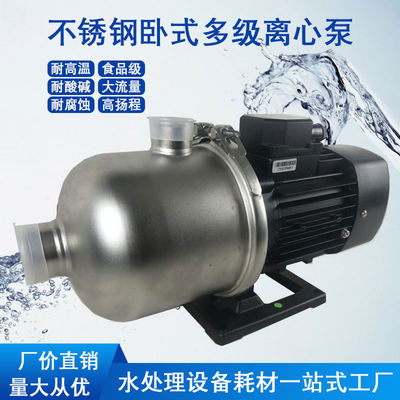

CMF Horizontal Multistage Centrifugal Pump , LX Stainless Steel Centrifugal Pump 0

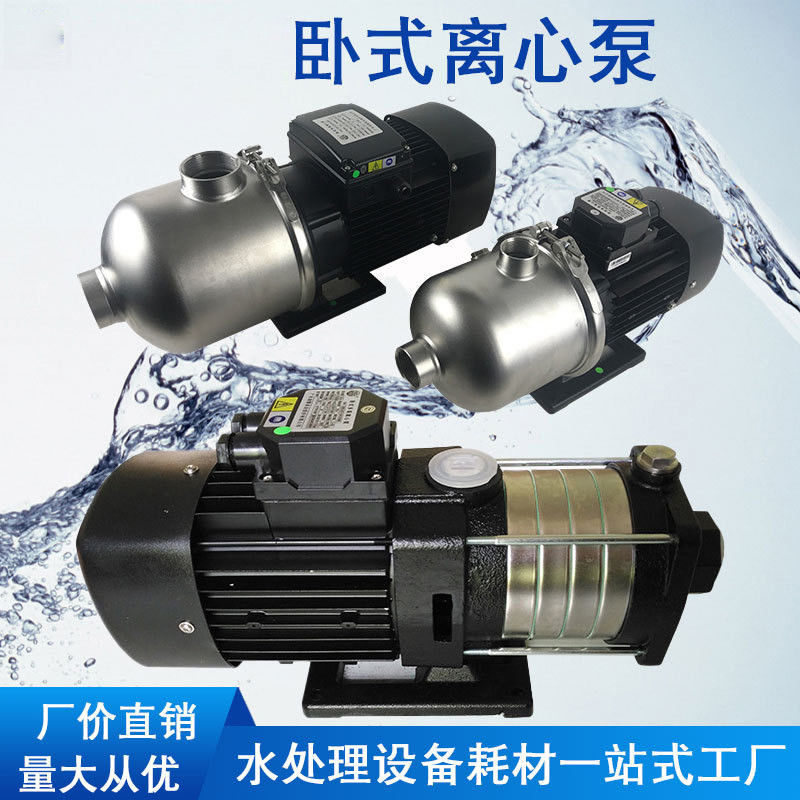

CMF Horizontal Multistage Centrifugal Pump , LX Stainless Steel Centrifugal Pump 1

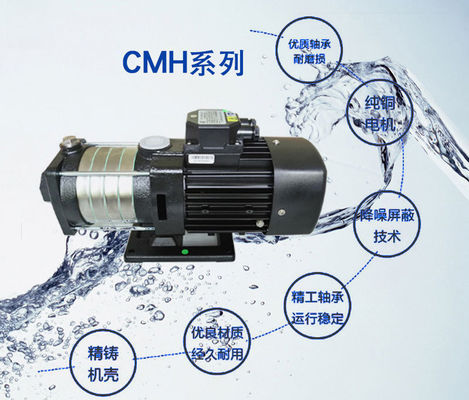

CMF Horizontal Multistage Centrifugal Pump , LX Stainless Steel Centrifugal Pump 2

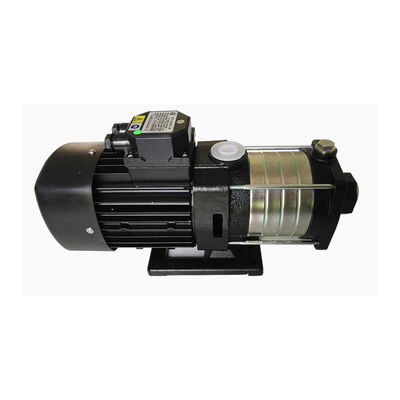

CMF Horizontal Multistage Centrifugal Pump , LX Stainless Steel Centrifugal Pump 3
