300m3/H Sedimentation DAF Wastewater Treatment System
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/ISO etc. |
| Model Number: | DAF-3-9C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 200 set per month |
|
Detail Information |
|||
| Technology: | Membrane Bioreactor | Membrane: | PVDF/PTFE Holow Fiber, Flat-sheet Optional |
|---|---|---|---|
| Design: | Skid Mount/containerized | Water Temp.: | 5~35˚C |
| Water Flowrate: | Up To 315 M3/day | Material: | Carbon Steel |
| Voltage: | 380V,415V,220V,can Be Customized | Application: | Waste Water, Sewage Water Treatment |
| Size: | Compact Or Bigger | Control: | Electronic,Manual/PLC |
| High Light: | 300m3/H daf wastewater treatment system,daf wastewater treatment system,300m3/H dissolved air flotation in industrial wastewater treatment |
||
Product Description

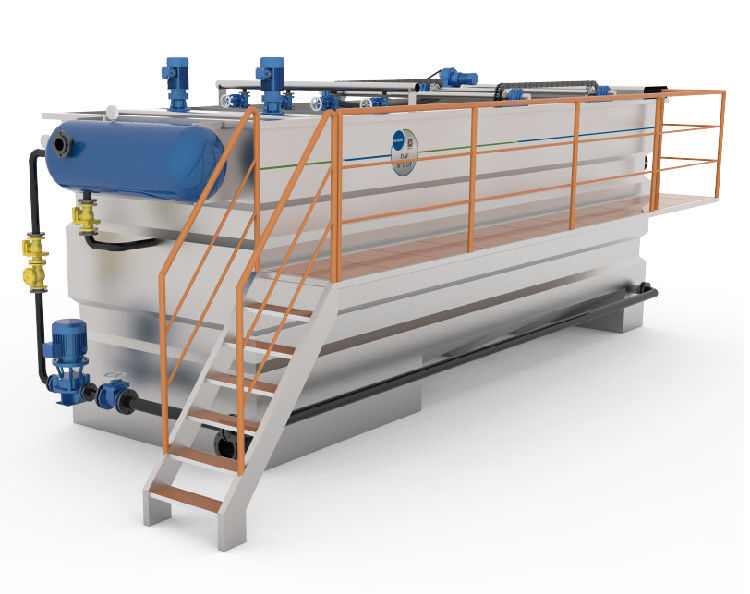

300m3/H Sedimentation DAF Wastewater Treatment System
Sedimentation Dissolved Air Flotation DAF Clarifier for sewage or waste water treatment
SDAF high efficient sedimentation DAF, most advanced DAF system.
SDAF high efficient sedimentation DAF is the perfect combination of DAF System and Sedimentation process and implements solid-liquid separation most efficiently
The Sedimentation Dissolved Air Flotation (SDAF) is an advanced DAF system. Enviro Concepts SDAF systems are designed to combine dissolved air flotation with high rate sedimentation to efficiently remove suspended solids, fats and oils, BOD, COD and heavy metals from a wide variety of water and wastewater sources.
Features
The Sedimentation Dissolved Air Flotation include mixing, flotation and sedimentation zones. They have a highly efficient dissolved air distribution system.
Dissolved air flotation effectively separates and removes the floating sludge layer, and the sedimentation plate packs remove the dense sludge settling at the bottom of the SDAF units. This results in high rate clarification capable of efficiently treating high suspended solids and high fats/oils wastewater. This amounts to 15-30% chemical dosage cost savings compared to the conventional DAF systems.
The SDAF features includes:
- Mild Steel or Stainless Construction
- Skid Mounted or Containerised
- Flocculation, Flotation and Sedimentation Zones
- Efficient Air Diffusion and Mixing Zone
- Sedimentation Plate Packs
- Mechanical Sludge Skimmer and Scraper

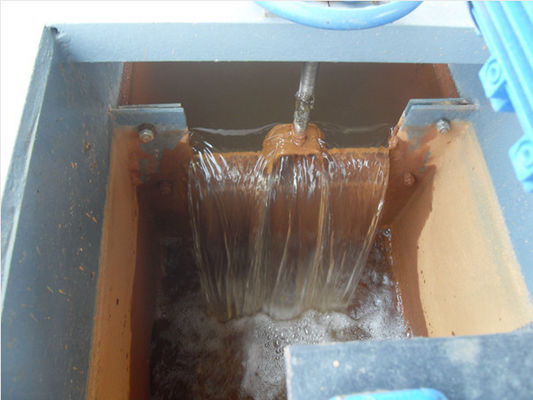

- Level Controlled, Non-clogging Sludge Weir
- Chemical Dosing System
- Feed and Discharge Pumps

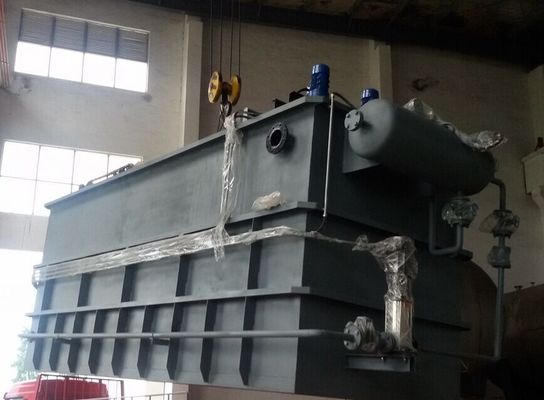

The SDAF units are pre-engineered, pre-assembled and factory tested ensuring reliable operation and minimising site installation and start-up time. They are skid-mounted or containerised and are easily transported and installed efficiently at client sites.
Industries/Applications perfectly suited to a DAF Biological Treatment of Wastewater unit
• Meat processing / slaughterhouse (beef, pigs, sheep, goats)
• Ice Cream factory
• Poultry processing (chickens, turkey, duck, geese)
• Confectionary/Candy manufacturing
• Bakery / baked goods
• Oil & Gas industry
• Mining industry
• Automotive industry
• Printing manufacturer (ink removal from wastewater)
• Cereal and snack foods
• Food processing and packaging
• Dairy processing (milk, cheese, yogurt)
• Beverage factories (breweries, juice, soda)
• Paper and pulp industry
• Metal plating and finishing
• Biochemical industry
• Recycling of glass, plastics, paper
• Egg processing
Core technology
Micro-bubble generation technologyForth circulation and flocculation technology
Characteristics and Advantages
Overall specialized, compact structure, and high performance
Huge markets ,high maturity, stable performance and reliable operation.
Hydraulic load: 3 ~ 5 m3 / (m2h)
Maximum inlet SS concentration is ≤ 1000 mg/L
Automatic scum discharge, solid content can be up to 30 ~ 100 mg/L
Applied for the wastewater with suspended solids & floc density lighter than water or close to the water and weak precipitation phenomenon
| Model | Capacity | Power(kw) | Dimension(m) | Nozzle list(DN) | |||||||
| (m3/h) | Recirculation pump | Air compressor | Skimmer | Sludge scraper | L/L1 | W/W1 | H/H1 | Inlet | Outlet | Sludge outlet | |
| SDAF-003 | ~3 | 0.75 | 0.55 | 0.18 | 3.4/2.2 | 2.4/1.7 | 2.4/1.9 | 80 | 80 | 100 | |
| SDAF-005 | ~5 | 1.1 | 0.55 | 0.18 | 3.8/2.5 | 2.2/1.5 | 2.5/2.1 | 80 | 80 | 100 | |
| SDAF-010 | ~10 | 1.5 | 0.55 | 0.18 | 5.1/3.8 | 2.4/1.7 | 3.0/2.4 | 100 | 100 | 100 | |
| SDAF-015 | ~15 | 2.2 | 0.75 | 0.18 | 5.1/3.8 | 2.9/2.2 | 3.0/2.4 | 100 | 100 | 100 | |
| SDAF-020 | ~20 | 3.0/5.5 | 0.75 | 0.18 | 5.4/4.1 | 2.9/2.2 | 3.0/2.4 | 150 | 150 | 150 | |
| SDAF-030 | ~30 | 3.0/5.5 | 0.75 | 0.18 | 5.5/4.2 | 3.2/2.5 | 3.2/2.6 | 150 | 150 | 150 | |
| SDAF-040 | ~40 | 4.0/5.5 | 0.75 | 0.18 | 6.5/5.2 | 3.2/2.5 | 3.2/2.6 | 200 | 200 | 150 | |
| SDAF-050 | ~50 | 7.5 | 0.75 | 0.18 | 1.5 | 7.2/5.9 | 3.2/2.5 | 3.2/2.6 | 200 | 200 | 150 |
| SDAF-060 | ~60 | 7.5 | 1.5 | 0.18 | 1.5 | 7.6/6.7 | 2.7/3.3 | 3.3/2.7 | 250 | 250 | 150 |
| SDAF-070 | ~70 | 11 | 1.5 | 0.18 | 1.5 | 8.1/6.7 | 3.6/2.9 | 3.3/2.7 | 250 | 250 | 150 |
| SDAF-080 | ~80 | 11 | 2.2 | 0.18 | 1.5*2 | 9.4/8.5 | 3.1/2.4 | 3.3/2.7 | 250 | 250 | 150 |
| SDAF-100 | ~100 | 15 | 2.2 | 0.18 | 1.5*2 | 10.0/8.8 | 3.7/3.0 | 3.3/2.7 | 300 | 250 | 150 |
| SDAF-120 | ~120 | 15 | 2.2 | 0.18 | 1.5*2 | 10.9/9.7 | 3.7/3.0 | 3.3/2.7 | 300 | 300 | 150 |
| SDAF-150 | ~150 | 18.5 | 2.2 | 0.18 | 1.5*2 | 13.5/12.2 | 3.7/3.0 | 3.3/2.7 | 350 | 300 | 150 |
| SDAF-200 | ~200 | 22 | 2.2 | 0.18*2 | 1.5*4 | 10.8/9.6 | 6.7/3.0 | 3.3 | 300*2 | 250*2 | 150 |
| SDAF-300 | ~300 | 30 | 5.5 | 0.18*2 | 1.5*4 | 13.5/12.6 | 6.7/3.0 | 3.3/2.7 | 350*2 | 300*2 | 150 |
Application
As a waste water process, DAF clarifier is widely used in sewage treatment and water purification engineering. DAF clarifier is suitable for:
l Increase effluent recycling and fresh water reusing in paper and pulp
l Removal of heavy metal ions
l Separation of oil refinery effluent
l Removal of tannery wastewater
l Removal of chromaticity and impurities in printing and dyeing wastewater
l Solid-liquid separation of sewage and membrane after all kinds of bio-treatment
l Sludge concentration (capacity: 20%~ 30%, except the dedicated device which can be designed according to the requirements)
