25m3/D Packaged Wastewater Treatment System , MBR Sewage Treatment Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/ISO etc. |
| Model Number: | MBR-3-5A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 200 set per month |
|
Detail Information |
|||
| Technology: | Membrane Bioreactor | Membrane: | PVDF/PTFE Holow Fiber, Flat-sheet Optional |
|---|---|---|---|
| Design: | Skid Mount/containerized | Water Temp.: | 5~35˚C |
| Water Flowrate: | Up To 315 M3/day | Material: | Carbon Steel |
| Voltage: | 380V,415V,220V,can Be Customized | Application: | Waste Water, Sewage Water Treatment |
| Size: | Compact Or Bigger | Control: | Electronic,Manual/PLC |
| High Light: | 25m3/D Packaged Wastewater Treatment System,415V Packaged Wastewater Treatment System,25m3/D mbr sewage treatment plant |
||
Product Description

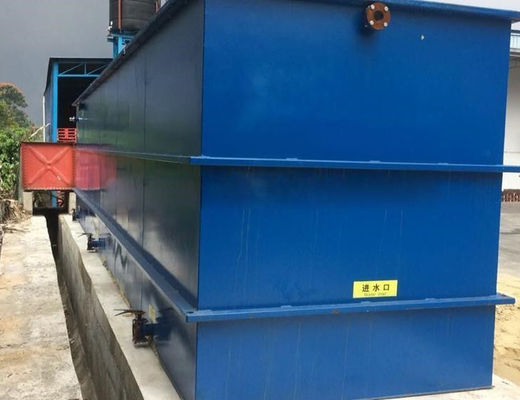

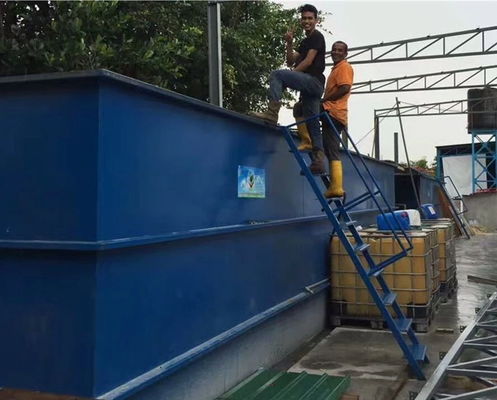

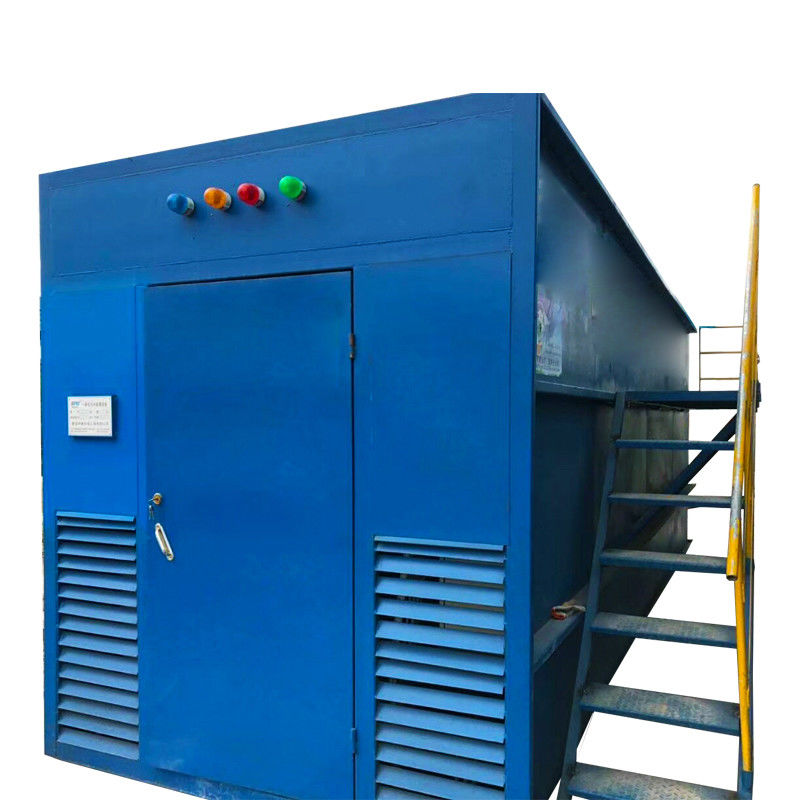

25m3/D Packaged Wastewater Treatment System , MBR Sewage Treatment Plant
MBR wastewater treatment , membrane water treatment plant 25 - 720m³/d
Mbr is one kind of high technology that is combination of membrance seperation with the tradtional processing of mud. This tech can improve the efficiency of the speration of mud and water and raise the reacting rate of the biochemical because of density increasement of tech can great low down the quantity of the mud so basically solve the problems of the traditional processing including much mud, big size of land and low running efficiency so on.
Usage of package mbr sewage treatment plant
(1) Hotel, brewery, restaurant, sanatorium, hospital, school;
(2) Residence community, villa district, village, town;
(3) Station, airport, seaport and dock;
(4) Factory, mine, army, beauty spot;
(5) All kinds of industrial sewage similar to the living sewage, etc.
Specifications:
|
Type size |
Treatment capacity |
Membrane size |
Qty (pcs) |
Module (units) |
Total Installed power |
Operating power (KW) |
Tank size(mm) | No.s of tank |
| MBR-25 | 25 m³/d | PURE-100 | 80 | 1 | 7.8 | 3.35 | 9000*2400*2500 | 1 |
| MBR-40 | 40 m³/d | PURE-100 | 100 | 1 | 7.8 | 3.35 | 7000*2400*2500 | 1 |
| MBR-50 | 50 m³/d | PURE-100 | 160 | 2 | 9.75 | 5.25 | 9000*2400*2500 | 1 |
| MBR-80 | 80 m³/d | PURE-100 | 200 | 2 | 13.8 | 5.25 | 10000*2400*2500 | 1 |
| MBR-100 | 100 m³/d | PURE-100 | 140 | 3 | 19.9 | 10.7 | 10000*2400*2500 | 1 |
| MBR-120 | 120 m³/d | PURE-100 | 300 | 3 | 21.75 | 13.55 | 10000*2400*2500 | 1 |
| MBR-160 | 160 m³/d | PURE-100 | 400 | 4 | 27.75 | 16.55 | 12000*2400*2500 | 1 |
| MBR-200 | 200 m³/d | PURE-100 | 500 | 5 | 30.85 | 18.25 | 7000*2400*2500 | 2 |
| MBR-240 | 240 m³/d | PURE-100 | 600 | 6 | 38.9 | 23.2 | 8500*2400*2500 | 2 |
| MBR-320 | 320 m³/d | PURE-100 | 800 | 8 | 38.9 | 23.2 | 10000*2400*2500 | 2 |
| MBR-400 | 400 m³/d | PURE-100 | 1000 | 10 | 30.35 | 15.75 | 11500*2400*2500 | 2 |
| MBR-480 | 480 m³/d | PURE-100 | 1200 | 12 | 33.65 | 15.9 |
13500*2400*2500 12000*2400*2500 |
1 1 |
| MBR-560 | 560 m³/d | PURE-100 | 1400 | 14 | 43.85 | 21 | 8500*2400*2500 | 3 |
| MBR-640 | 640 m³/d | PURE-100 | 1600 | 16 | 41.85 | 20 | 11500*2400*2500 | 3 |
| MBR-720 | 720 m³/d | PURE-100 | 1800 | 18 | 54.85 | 26 | 12000*2400*2500 | 3 |
More features:
1. Because of the high-efficiency solid-liquid separation, it can efficiently remove the SS, colloidal material and dead microbe in the sewage, no need sedimentation tank, or filter device, nor other solid-liquid separation device.
2. The MBR can make the biomass in biological treatment unit maintain high concentration, thus highly improve the volume loading. Meanwhile, the high efficient membrane separation can shorten the HRT. The device is with a compact structure and small space occupation.
3. MBR can filter out bacteria, part of the harmful material such as virus, it can obviously save dosing disinfection dosage, greatly improve the quality of the output water and reduce the operating cost and widen the scope of application of water.
4. Due to the strong interception function of MBR, it can keep the microbe in the reactor to avoid the loss of all kinds of microbe groups, which is good for the growth of the bacteria (such as the nitrifying bacteria), at the same time, it can lengthen the residence time of difficult degradable macromolecule organics to improve the decomposition so as to make the metabolic system process smoothly. The system has a strong impact resistance and wide suitability.
5. It can realize the completely separation of HRT and SRT. By the extended aeration, it can consume the organics, it can theoretically achieve the effect of no excess sludge emissions, thus reduce the surplus sludge treatment costs significantly.
6. The unique mode of operation makes the membrane surface no blocking, and the cleaning interval time is long. The way to clean the membrane is easy, since the membrane module can be separately cleaned, thus, the maintenance is convenience and simple.
The module design make the machine flexible, it is easy to expand the volume.
Advantages:
1) can save 50% area compare with the traditional process
2)Can treat high MLSS waste water (<10g/L), with long residence time for sludge(less30 days)
3)Steady Producing water quality for different water quality
4)Output Sludge value is low , lower the treatment sludge fee
5)Low consumption , cleaning easy ,and low operation cost
6)The equipment is carbon steel Integration , biological oxidation and membrane reaction and back wash operate in same integration sewage treatment plant
(7)Compare the concrete structure , MBR Integration system /Package Sewage treatment Plant low occupy
area , and construction is easy . Only need do a base
(8)Can put underground , and surface can do greening
