100m3/h DAF Dissolved Air Flotation Clarifier Water Treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/ISO etc. |
| Model Number: | DAF-3-9A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 200 set per month |
|
Detail Information |
|||
| Technology: | Membrane Bioreactor | Membrane: | PVDF/PTFE Holow Fiber, Flat-sheet Optional |
|---|---|---|---|
| Design: | Skid Mount/containerized | Water Temp.: | 5~35˚C |
| Water Flowrate: | Up To 315 M3/day | Material: | Carbon Steel |
| Voltage: | 380V,415V,220V,can Be Customized | Application: | Waste Water, Sewage Water Treatment |
| Size: | Compact Or Bigger | Control: | Electronic,Manual/PLC |
| Highlight: | 100m3/h dissolved air flotation clarifier,DAF dissolved air flotation clarifier,100m3/h dissolved air flotation equipment |
||
Product Description
Dissolved Air Flotation DAF Clarifier for diary and beverage water treatment
Features
DAF clarifier has several features as follows:
Small footprint, lower energy consumption; easy operation and simple management
High efficiency of dissolved air, stable treatment effects. Electro-mechanic instruments are integrally controlled
This equipment's dissolved air efficiency reaches up to 90%. But its volume is only one fifth of the ordinary dissolved air system. Moreover, it has stronger anti-clogging capability than other DAF.
This equipment uses new type dissolved air releaser with the advantages of high releasing degree and self-cleaning functions. And the average particle size of micro bubbles is about 15~30μm

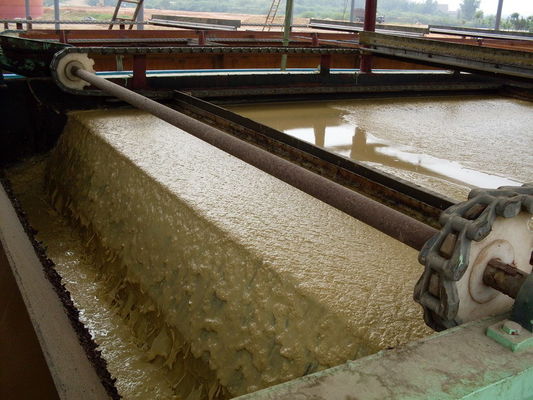

This equipment uses chain-plate-type skimmer with advantages of stable operation and high efficiency of scraping.
| Type size |
Treatment capacity |
Tank Length (mm) |
Tank Width (mm) |
Tank Depth (mm) |
Pump power (kw) |
Air compresDAF power (kw) |
Skimmer power (kw) |
| DAF-1 | 1m³/h | 1400 | 550 | 1100 | 0.55 | 0.55 | 0.18 |
| DAF-2 | 2 m³/h | 1800 | 700 | 1300 | 0.55 | 0.55 | 0.18 |
| DAF-3 | 3 m³/h | 2800 | 800 | 1900 | 0.75 | 0.75 | 0.37 |
| DAF-5 | 5 m³/h | 3000 | 1000 | 1900 | 1.1 | 0.75 | 0.37 |
| DAF-10 | 10 m³/h | 4000 | 1200 | 2100 | 1.5 | 0.75 | 0.37 |
| DAF-15 | 15m³/h | 4500 | 1500 | 2100 | 2.2 | 0.75 | 0.37 |
| DAF-20 | 20m³/h | 4500 | 1800 | 2100 | 2.2 | 0.75 | 0.37 |
| DAF-30 | 30m³/h | 5500 | 2000 | 2100 | 3.0 | 0.75 | 0.37 |
| DAF-40 | 40m³/h | 6000 | 2200 | 2100 | 5.5 | 0.75 | 0.37 |
| DAF-50 | 50m³/h | 6000 | 2700 | 2100 | 7.5 | 1.5 | 0.37 |
| DAF-60 | 60m³/h | 7000 | 2800 | 2100 | 7.5 | 1.5 | 0.37 |
| DAF-70 | 70 m³/h | 8000 | 3000 | 2100 | 11 | 2.2 | 0.55 |
| DAF-80 | 80m³/h | 9000 | 3200 | 2100 | 11 | 2.2 | 0.55 |
| DAF-100 | 100 m³/h | 9000 | 3600 | 2100 | 15 | 2.2 | 0.55 |
Application
As a waste water process, DAF clarifier is widely used in sewage treatment and water purification engineering. DAF clarifier is suitable for:
l Increase effluent recycling and fresh water reusing in paper and pulp
l Removal of heavy metal ions
l Separation of oil refinery effluent
l Removal of tannery wastewater
l Removal of chromaticity and impurities in printing and dyeing wastewater
l Solid-liquid separation of sewage and membrane after all kinds of bio-treatment
l Sludge concentration (capacity: 20%~ 30%, except the dedicated device which can be designed according to the requirements)
