CEDI Ion Exchange Water Purification System
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/NSF etc. |
| Model Number: | IX-3A-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 200 set per month |
|
Detail Information |
|||
| Technology: | Pressurized Filtration | Material: | Carbon Steel/FRP/stainless Steel |
|---|---|---|---|
| Design: | Skid Mount/containerized | Water Temp.: | 5~35˚C |
| Water Flow Rate: | Up To 200 M3/day.vessel | Voltage: | 380V,415V,220V,can Be Customized |
| Application: | Surface, Underground Water, Sewage Water Treatment | Size: | Dia.20cm~180cm |
| Control: | Electronic,Manual/PLC | ||
| High Light: | 0.75GPM cedi system,CEDI Ion Exchange Water Purification System,0.75GPM Ion Exchange Water Purification System |
||
Product Description

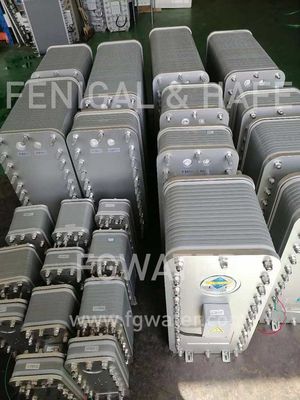

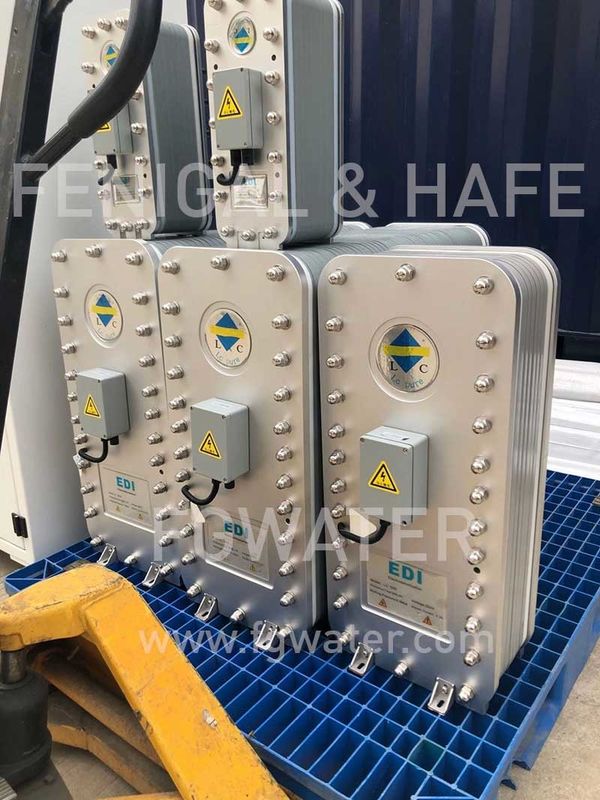

CEDI Ion Exchange Water Purification System
CEDI Continuous Electro-deionization water demineralizer system for semiconductor, food & beverage and USP
EDI Series Electrodeionization Water Purification Systems are designed to polish the permeate from a reverse osmosis system. The quality of the product from an AMI EDI system will depend on the incoming feed water quality to the electrodeionization system. Product quality up to 18 megaohms is possible with these systems.
The EDI System is superior to a conventional mixed-bed deionization system both in ease of operation and maintenance. In addition, no chemicals are used for regeneration.
The EDI Systems are modular, so they can be designed for various capacities and easily expanded when required.
EDI Systems are used in applications such as ultrapure water, USP grade water, water for injectables (WFI), and removing trace quantities of contaminants.
Benefits of Electrodionization EDI Water Purification Systems
- Product quality up to 18 megaohms is possible with these systems.
- Ease of operation and maintenance.
- No chemical regeneration required.
- Easily expandable modular design.
- Compact, Heavy Duty, Powder Coated Frame
- Proven components used throughout the system
- Conservatively engineered for reliable long term performance
- Factory tested to ensure trouble-free operation
Electrodionization EDI Water Purification System Performance Data and Order Information
| Model No. | System Capacity | System Dimensions (in/cm) | Approx. Shipping Weight (Lb/Kg) | |||
| GPM | Liters/Min | Length | Depth | Height | ||
| EDI-003 | 0.25 – 0.75 | 1 – 3 | 23/59 | 26/66 | 36/91 | 240/110 |
| EDI-006 | 0.5 – 1.5 | 2 – 6 | 23/59 | 26/66 | 36/91 | 250/114 |
| EDI-011 | 1.5 – 3 | 6 – 11 | 23/59 | 26/66 | 36/91 | 260/118 |
| EDI-027 | 3-7 | 11-27 | 23/59 | 26/66 | 36/91 | 270/123 |
| EDI-038 | 6-10 | 25-38 | 23/59 | 26/66 | 36/91 | 340/155 |
| EDI-076 | 12-20 | 45-76 | 23/59 | 26/66 | 36/91 | 520/236 |
| EDI-151 | 24-40 | 91-151 | 60/152 | 48/122 | 72/182 | 680/310 |
| EDI-227 | 36-60 | 136-227 | 60/152 | 48/122 | 72/182 | 780/354 |
Features of Electro-dionization EDI Water Purification Systems
EDI Systems come complete and are skid mounted. These systems are tested before shipment. The main components included are:
- EDI Cells
- Pressure Gauges
- Power Supply
- Resistivity Monitor
- Flow Meters
- Controller
- Flow Switch
- All Safeguards & Alarms
- Incoming water conductivity meter
- Auto incoming water diverter valves w/controls
- Auto product water diverter valves w/controls
Applications for Electro-dionization EDI Water Purification Systems
|
|
