WWTP ETP 50m3/d Packaged Wastewater Treatment System

WWTP ETP 50m3/d Packaged Wastewater Treatment System

Product Details:

Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE/ISO etc.
Model Number: MBR-3-5B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized
Delivery Time: 15~30 days
Payment Terms: T/T, Western Union, Paypal etc.
Supply Ability: 200 set per month
Get Best Price Contact Now

Detail Information

Technology: Membrane Bioreactor Membrane: PVDF/PTFE Holow Fiber, Flat-sheet Optional
Design: Skid Mount/containerized Water Temp.: 5~35˚C
Water Flowrate: Up To 315 M3/day Material: Carbon Steel
Voltage: 380V,415V,220V,can Be Customized Application: Waste Water, Sewage Water Treatment
Size: Compact Or Bigger Control: Electronic,Manual/PLC
High Light:

ETP Packaged Wastewater Treatment System

,

50m3/D Packaged Wastewater Treatment System

,

ETP mbr stp plant

Product Description

WWTP ETP 50m3/d Packaged Wastewater Treatment System

MBR Wastewater and Sewage Treatment WWTP & ETP for Domestic and Industrial water reuse



Membrane bioreactor (MBR) packaged plant enables municipal and industrial wastewater treatment plant owners and operators to achieve high quality effluent while reducing energy and maintenance costs. The compact, robust design is factory pre-assembled, tested, and skid-mounted providing easy installation for the treatment of applications ranging from 5,000 gallons per day (gpd) to 200,000 gpd.



MBR Process

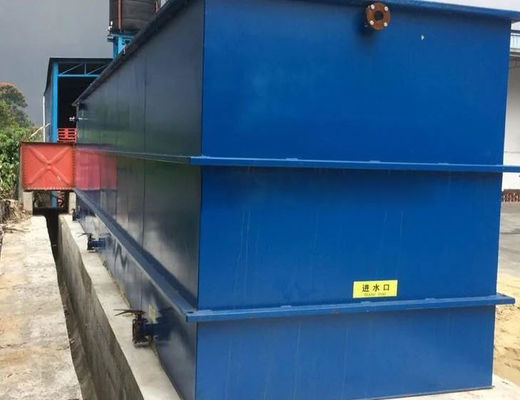

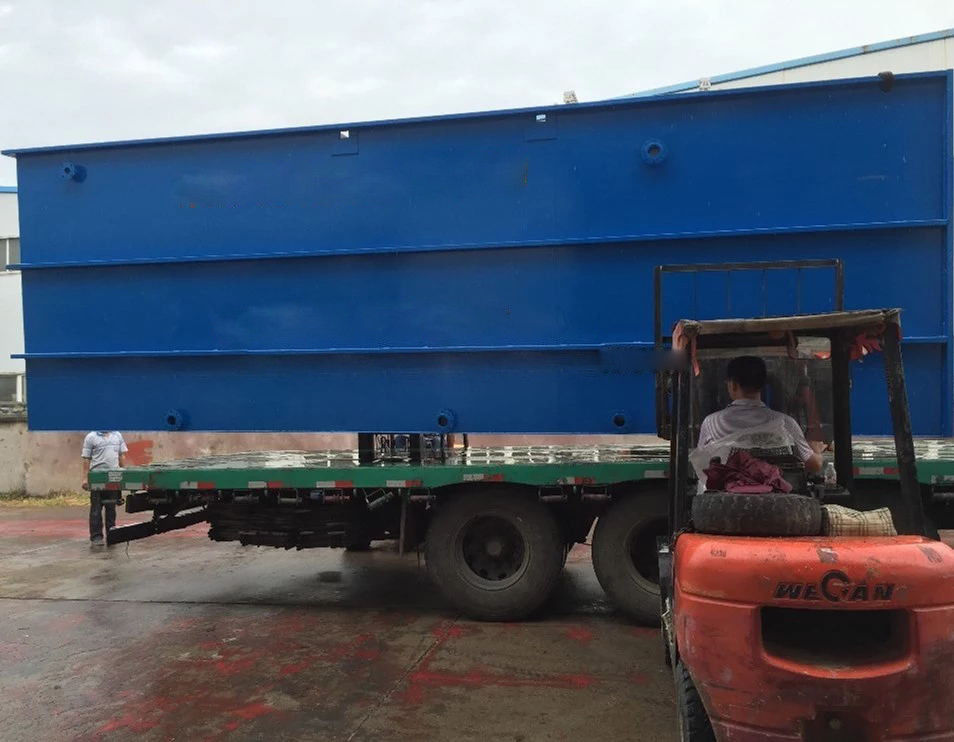

The pre-designed and skid-mounted system can be offloaded quickly and efficiently at the treatment site and includes prefabricated steel tankage, pre-installed internals, pumps and blowers reducing time and on-site installation labor.



The treatment process begins with influent entering a 2 mm rotary drum screen with re-screening that assists in improving membrane life before entering the aerobic reactor zone or biological treatment process tank.

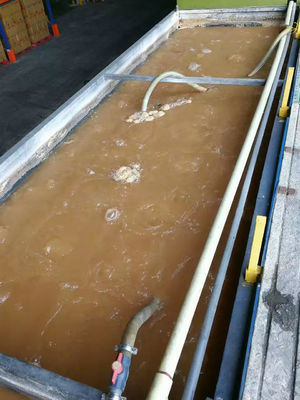

Aeration within the aerobic reactor zone provides oxygen for biological respiration and maintains solids in suspension.

To retain the active biomass in the process, MBR system relies upon the proven hollow fiber membrane eliminating sludge settleability issues. This allows the biological process to operate at long sludge ages (typically 20-100 days) and increases mixed liquor suspended solids (MLSS) concentrations typically (8,000 - 14,00 mg/L).



Specifications:

Type

size

Treatment

capacity

Membrane

size

Qty

(pcs)

Module

(units)

Total

Installed power

Operating power

(KW)

Tank size(mm) No.s of tank
MBR-25 25 m³/d PURE-100 80 1 7.8 3.35 9000*2400*2500 1
MBR-40 40 m³/d PURE-100 100 1 7.8 3.35 7000*2400*2500 1
MBR-50 50 m³/d PURE-100 160 2 9.75 5.25 9000*2400*2500 1
MBR-80 80 m³/d PURE-100 200 2 13.8 5.25 10000*2400*2500 1
MBR-100 100 m³/d PURE-100 140 3 19.9 10.7 10000*2400*2500 1
MBR-120 120 m³/d PURE-100 300 3 21.75 13.55 10000*2400*2500 1
MBR-160 160 m³/d PURE-100 400 4 27.75 16.55 12000*2400*2500 1
MBR-200 200 m³/d PURE-100 500 5 30.85 18.25 7000*2400*2500 2
MBR-240 240 m³/d PURE-100 600 6 38.9 23.2 8500*2400*2500 2
MBR-320 320 m³/d PURE-100 800 8 38.9 23.2 10000*2400*2500 2
MBR-400 400 m³/d PURE-100 1000 10 30.35 15.75 11500*2400*2500 2
MBR-480 480 m³/d PURE-100 1200 12 33.65 15.9

13500*2400*2500

12000*2400*2500

1

1

MBR-560 560 m³/d PURE-100 1400 14 43.85 21 8500*2400*2500 3
MBR-640 640 m³/d PURE-100 1600 16 41.85 20 11500*2400*2500 3
MBR-720 720 m³/d PURE-100 1800 18 54.85 26 12000*2400*2500 3



WWTP ETP 50m3/d Packaged Wastewater Treatment System 0

WWTP ETP 50m3/d Packaged Wastewater Treatment System 1

WWTP ETP 50m3/d Packaged Wastewater Treatment System 2





More features:

1. Because of the high-efficiency solid-liquid separation, it can efficiently remove the SS, colloidal material and dead microbe in the sewage, no need sedimentation tank, or filter device, nor other solid-liquid separation device.

2. The MBR can make the biomass in biological treatment unit maintain high concentration, thus highly improve the volume loading. Meanwhile, the high efficient membrane separation can shorten the HRT. The device is with a compact structure and small space occupation.

3. MBR can filter out bacteria, part of the harmful material such as virus, it can obviously save dosing disinfection dosage, greatly improve the quality of the output water and reduce the operating cost and widen the scope of application of water.

4. Due to the strong interception function of MBR, it can keep the microbe in the reactor to avoid the loss of all kinds of microbe groups, which is good for the growth of the bacteria (such as the nitrifying bacteria), at the same time, it can lengthen the residence time of difficult degradable macromolecule organics to improve the decomposition so as to make the metabolic system process smoothly. The system has a strong impact resistance and wide suitability.

5. It can realize the completely separation of HRT and SRT. By the extended aeration, it can consume the organics, it can theoretically achieve the effect of no excess sludge emissions, thus reduce the surplus sludge treatment costs significantly.

6. The unique mode of operation makes the membrane surface no blocking, and the cleaning interval time is long. The way to clean the membrane is easy, since the membrane module can be separately cleaned, thus, the maintenance is convenience and simple.

The module design make the machine flexible, it is easy to expand the volume.

Advantages:

1) can save 50% area compare with the traditional process

2)Can treat high MLSS waste water (<10g/L), with long residence time for sludge(less30 days)

3)Steady Producing water quality for different water quality

4)Output Sludge value is low , lower the treatment sludge fee

5)Low consumption , cleaning easy ,and low operation cost

6)The equipment is carbon steel Integration , biological oxidation and membrane reaction and back wash operate in same integration sewage treatment plant

(7)Compare the concrete structure , MBR Integration system /Package Sewage treatment Plant low occupy

area , and construction is easy . Only need do a base

(8)Can put underground , and surface can do greening
