720TPD MBR Packaged Wastewater Treatment Plant

720TPD MBR Packaged Wastewater Treatment Plant

Product Details:

Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE/ISO etc.
Model Number: MBR-3-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized
Delivery Time: 15~30 days
Payment Terms: T/T, Western Union, Paypal etc.
Supply Ability: 200 set per month
Get Best Price Contact Now

Detail Information

Technology: Membrane Bioreactor Membrane: PVDF/PTFE Holow Fiber, Flat-sheet Optional
Design: Skid Mount/containerized Water Temp.: 5~35˚C
Water Flowrate: Up To 315 M3/day Material: Carbon Steel
Voltage: 380V,415V,220V,can Be Customized Application: Waste Water, Sewage Water Treatment
Size: Compact Or Bigger Control: Electronic,Manual/PLC
High Light:

720TPD packaged wastewater treatment plant

,

MBR packaged wastewater treatment plant

,

720TPD mbr wastewater treatment plant

Product Description

720TPD MBR Packaged Wastewater Treatment Plant

Packaged wastewater treatment plants by MBR - membrane bioreactor technology 12~720T/D



The package wastewater treatment plant can effectively remove BOD5, COD and NH3-N and can be built underground so it will not take up much space, or require constructing new buildings above the ground. Since it’s built underground, it has no use for heating and you can grow beautiful flowers or grass on the ground surface to beautify the surrounding environment. The package sewage treatment plant is widely used for residential sewage treatment in hotels, restaurants or malls.



Parameter

Model WTP-0.5 WTP-1 WTP-2 WTP-5 WTP-10 WTP-20 WTP-30
Capacity (m3/day) 12 24 48 120 240 480 720
Oxygen supply system Air flow (m3/min) 0.15 0.31 0.59 1.02 2.5 4.11 6.7
Wind load (m,mh2o) 1250 1500 2000 2200 2500 2500 2500
Power (KW) 0.55 0.75 0.75 1.5 3.0 5.5 7.5
Sewage pump Flow (m3/h) 0.5 1 2 5 10 20 30
Head (m) 10 10 10 10 15 15 9
Power (KW) 0.75 0.75 0.75 0.75 1.5 2.2 2.2
Number of equipment 1 1 1 1 1 2 3

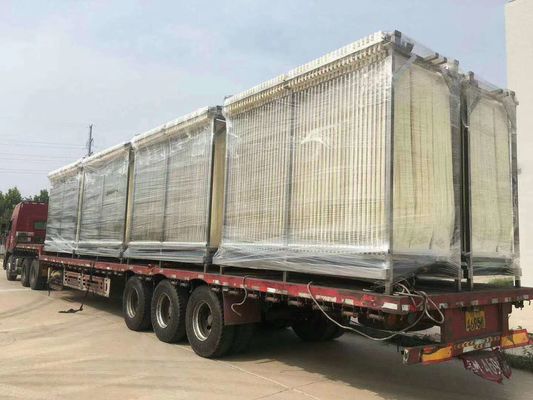

720TPD MBR Packaged Wastewater Treatment Plant 0

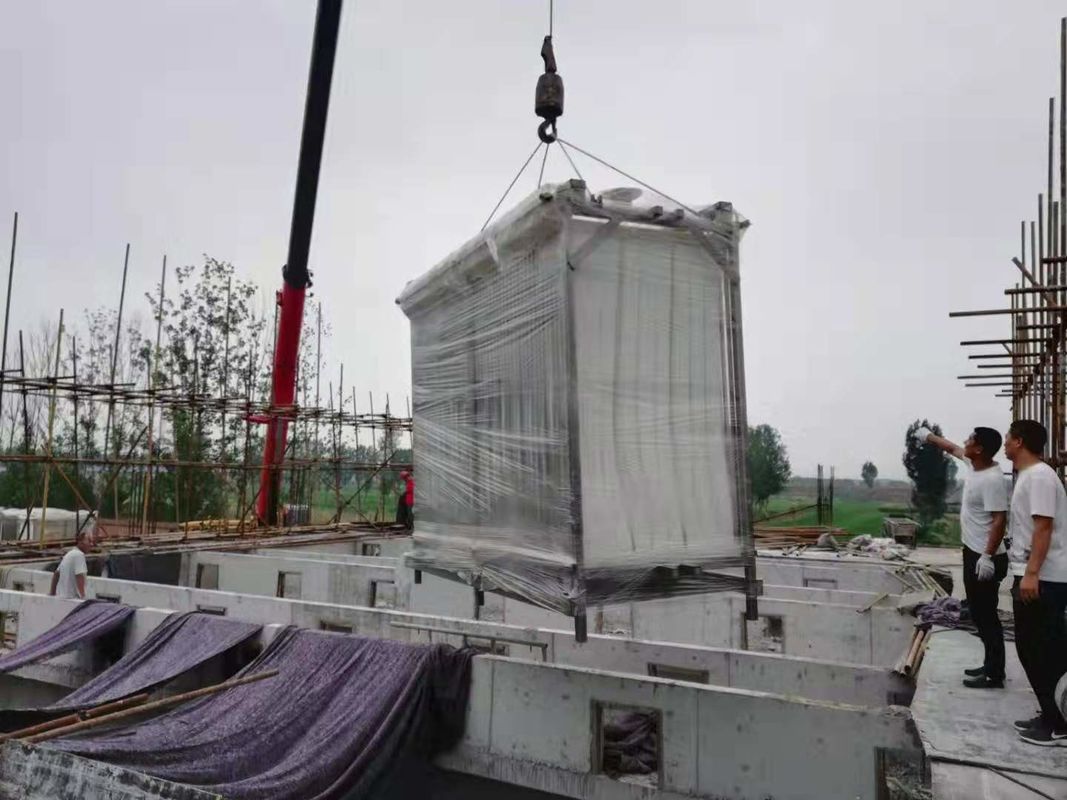

720TPD MBR Packaged Wastewater Treatment Plant 1

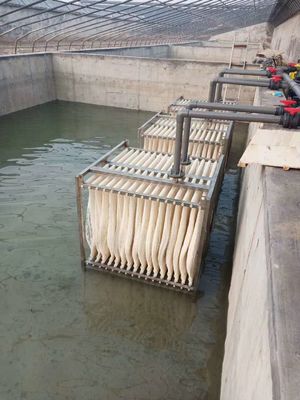

720TPD MBR Packaged Wastewater Treatment Plant 2

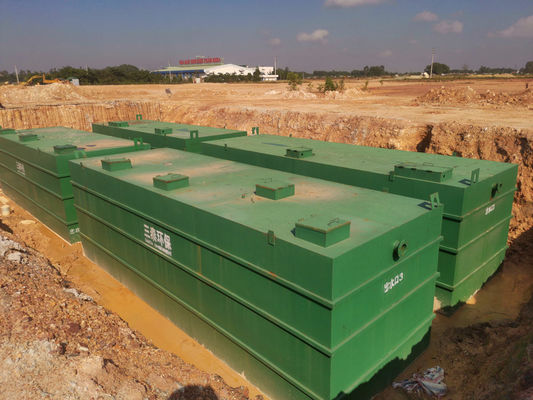

720TPD MBR Packaged Wastewater Treatment Plant 3

More features:

1. Because of the high-efficiency solid-liquid separation, it can efficiently remove the SS, colloidal material and dead microbe in the sewage, no need sedimentation tank, or filter device, nor other solid-liquid separation device.

2. The MBR can make the biomass in biological treatment unit maintain high concentration, thus highly improve the volume loading. Meanwhile, the high efficient membrane separation can shorten the HRT. The device is with a compact structure and small space occupation.

3. MBR can filter out bacteria, part of the harmful material such as virus, it can obviously save dosing disinfection dosage, greatly improve the quality of the output water and reduce the operating cost and widen the scope of application of water.

4. Due to the strong interception function of MBR, it can keep the microbe in the reactor to avoid the loss of all kinds of microbe groups, which is good for the growth of the bacteria (such as the nitrifying bacteria), at the same time, it can lengthen the residence time of difficult degradable macromolecule organics to improve the decomposition so as to make the metabolic system process smoothly. The system has a strong impact resistance and wide suitability.

5. It can realize the completely separation of HRT and SRT. By the extended aeration, it can consume the organics, it can theoretically achieve the effect of no excess sludge emissions, thus reduce the surplus sludge treatment costs significantly.

6. The unique mode of operation makes the membrane surface no blocking, and the cleaning interval time is long. The way to clean the membrane is easy, since the membrane module can be separately cleaned, thus, the maintenance is convenience and simple.

The module design make the machine flexible, it is easy to expand the volume.

Advantages:

1) can save 50% area compare with the traditional process

2)Can treat high MLSS waste water (<10g/L), with long residence time for sludge(less30 days)

3)Steady Producing water quality for different water quality

4)Output Sludge value is low , lower the treatment sludge fee

5)Low consumption , cleaning easy ,and low operation cost

6)The equipment is carbon steel Integration , biological oxidation and membrane reaction and back wash operate in same integration sewage treatment plant

(7)Compare the concrete structure , MBR Integration system /Package Sewage treatment Plant low occupy

area , and construction is easy . Only need do a base

(8)Can put underground , and surface can do greening
