Product Details:

Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE/ISO etc.
Model Number: MBR-3-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized
Delivery Time: 15~30 days
Payment Terms: T/T, Western Union, Paypal etc.
Supply Ability: 200 set per month
Get Best Price Contact Now

Detail Information

Technology: Membrane Bioreactor Membrane: PVDF/PTFE Holow Fiber, Flat-sheet Optional
Design: Skid Mount/containerized Water Temp.: 5~35˚C
Water Flowrate: Up To 315 M3/day Material: Carbon Steel
Voltage: 380V,415V,220V,can Be Customized Application: Waste Water, Sewage Water Treatment
Size: Compact Or Bigger Control: Electronic,Manual/PLC
High Light:

200m3/d Packaged Wastewater Treatment System

,

MBR Packaged Wastewater Treatment System

,

200m3/d membrane bioreactor sewage treatment plant

Product Description

Membrane Bioreactor Packaged Wastewater Treatment System

Membrane bioreactor package wastewater treatment plants for Hotel , airport , Factory

Feature of package mbr sewage treatment plant

(1) The device can be buried below the earth’s surface. The surface can be used as green land or square land. Therefore, the device covers no surface area. And there is no need for plant construction, neither heating and heat preservation.

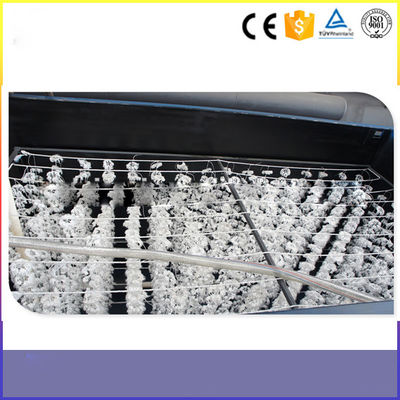

(2) The device use plug flow biological contact oxidation pond, the effect is better. Besides, it is smaller than active sludge pool. The applicability to the water is stronger, impact resistance performance is good, discharging water is stable, there is no sludge expansion. In addition, the new elastomeric stereoscopic materials in the oxidation pond have a higher removing rate, and also can improve the water solubility of oxygen.



(3) Because of the low volume load of fillings in AO bio-treatment technology of the device, and microbes are in the stage of oxygen, it would produce less mud. Generally only 90 days for one sludge removal.



(4) Except for the conventional air exhaust, the device is equipped with soil deodorization measure as well.



(5) The device is equipped with fully automatic electric control system and equipment damage alarm system. The device has a good reliability, generally, there is no need for special management, a monthly or quarterly maintenance is ok.



Usage of package mbr sewage treatment plant

(1) Hotel, brewery, restaurant, sanatorium, hospital, school;

(2) Residence community, villa district, village, town;

(3) Station, airport, seaport and dock;

(4) Factory, mine, army, beauty spot;

(5) All kinds of industrial sewage similar to the living sewage, etc.



Specifications:

Type

size

Treatment

capacity

Membrane

size

Qty

(pcs)

Module

(units)

Total

Installed power

Operating power

(KW)

Tank size(mm) No.s of tank
MBR-25 25 m³/d PURE-100 80 1 7.8 3.35 9000*2400*2500 1
MBR-40 40 m³/d PURE-100 100 1 7.8 3.35 7000*2400*2500 1
MBR-50 50 m³/d PURE-100 160 2 9.75 5.25 9000*2400*2500 1
MBR-80 80 m³/d PURE-100 200 2 13.8 5.25 10000*2400*2500 1
MBR-100 100 m³/d PURE-100 140 3 19.9 10.7 10000*2400*2500 1
MBR-120 120 m³/d PURE-100 300 3 21.75 13.55 10000*2400*2500 1
MBR-160 160 m³/d PURE-100 400 4 27.75 16.55 12000*2400*2500 1
MBR-200 200 m³/d PURE-100 500 5 30.85 18.25 7000*2400*2500 2
MBR-240 240 m³/d PURE-100 600 6 38.9 23.2 8500*2400*2500 2
MBR-320 320 m³/d PURE-100 800 8 38.9 23.2 10000*2400*2500 2
MBR-400 400 m³/d PURE-100 1000 10 30.35 15.75 11500*2400*2500 2
MBR-480 480 m³/d PURE-100 1200 12 33.65 15.9

13500*2400*2500

12000*2400*2500

1

1

MBR-560 560 m³/d PURE-100 1400 14 43.85 21 8500*2400*2500 3
MBR-640 640 m³/d PURE-100 1600 16 41.85 20 11500*2400*2500 3
MBR-720 720 m³/d PURE-100 1800 18 54.85 26 12000*2400*2500 3

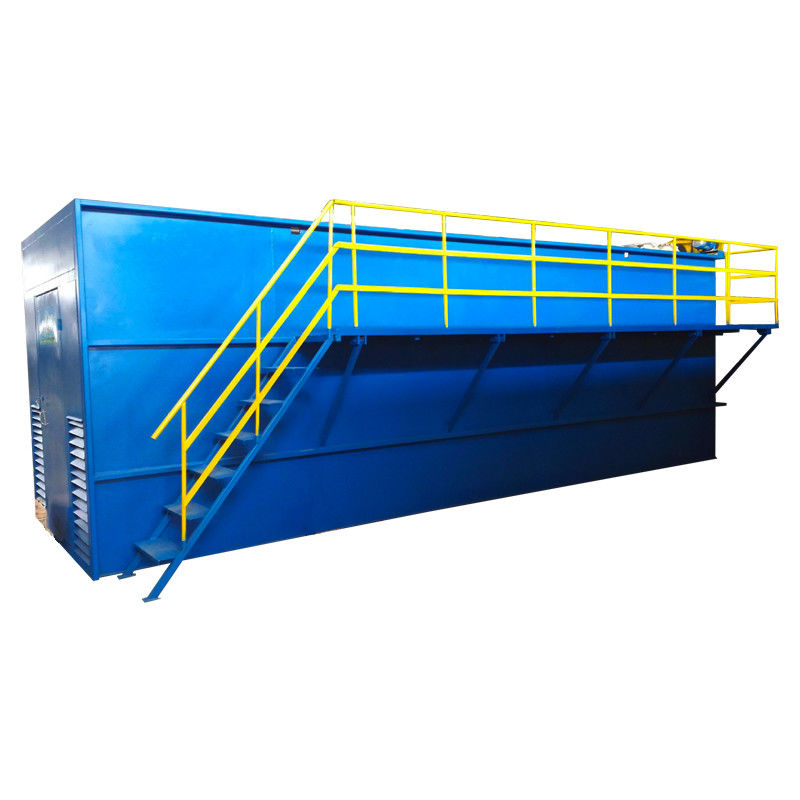

Membrane Bioreactor Packaged Wastewater Treatment System 0

Membrane Bioreactor Packaged Wastewater Treatment System 1

Membrane Bioreactor Packaged Wastewater Treatment System 2





More features:

1. Because of the high-efficiency solid-liquid separation, it can efficiently remove the SS, colloidal material and dead microbe in the sewage, no need sedimentation tank, or filter device, nor other solid-liquid separation device.

2. The MBR can make the biomass in biological treatment unit maintain high concentration, thus highly improve the volume loading. Meanwhile, the high efficient membrane separation can shorten the HRT. The device is with a compact structure and small space occupation.

3. MBR can filter out bacteria, part of the harmful material such as virus, it can obviously save dosing disinfection dosage, greatly improve the quality of the output water and reduce the operating cost and widen the scope of application of water.

4. Due to the strong interception function of MBR, it can keep the microbe in the reactor to avoid the loss of all kinds of microbe groups, which is good for the growth of the bacteria (such as the nitrifying bacteria), at the same time, it can lengthen the residence time of difficult degradable macromolecule organics to improve the decomposition so as to make the metabolic system process smoothly. The system has a strong impact resistance and wide suitability.

5. It can realize the completely separation of HRT and SRT. By the extended aeration, it can consume the organics, it can theoretically achieve the effect of no excess sludge emissions, thus reduce the surplus sludge treatment costs significantly.

6. The unique mode of operation makes the membrane surface no blocking, and the cleaning interval time is long. The way to clean the membrane is easy, since the membrane module can be separately cleaned, thus, the maintenance is convenience and simple.

The module design make the machine flexible, it is easy to expand the volume.

Advantages:

1) can save 50% area compare with the traditional process

2)Can treat high MLSS waste water (<10g/L), with long residence time for sludge(less30 days)

3)Steady Producing water quality for different water quality

4)Output Sludge value is low , lower the treatment sludge fee

5)Low consumption , cleaning easy ,and low operation cost

6)The equipment is carbon steel Integration , biological oxidation and membrane reaction and back wash operate in same integration sewage treatment plant

(7)Compare the concrete structure , MBR Integration system /Package Sewage treatment Plant low occupy

area , and construction is easy . Only need do a base

(8)Can put underground , and surface can do greening
