Product Details:

Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE/NSF etc.
Model Number: ROR-80~610GPH,5-15

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wood Crate/Carton or Naked wrapped by film
Delivery Time: 15~30 days
Payment Terms: T/T, Western Union, Paypal etc.
Supply Ability: 50 set per month
Get Best Price Contact Now

Detail Information

Permeate: 60~1100LPH Recovery Rate: 8~40%
Feed TDS/ppm: <42,000 Water Temp.: 5~35˚C
PH: 4~9 Dissolved Iron Mg/L: <0.1
Material: SS304/SS316L,carbon Steel Application: Water Purification,Filtration,pharmceutical,drinking Water,food
Function: Water Purifying, Desalination Control: Electronic,Manual/PLC
Ro Membrane: Hydranautics Or DOW,4040 Pump: Danfoss/CAT/CNP
High Light:

1100LPH sea water purification system

,

SS304 1100LPH seawater reverse osmosis plant

,

1100LPH seawater reverse osmosis plant

Product Description

Mobile Seawater Reverse Osmosis Plant , Sea Water Purification System

Mobile Marine Sea Water Treatment plant with R.O system 80~610GPH Global Voltage



R series watermaker is designed to produce high quality portable water from sea water or high salinity brackish water. R series watermaker produce pure potable water from 6,000 to 55,000 litres (1,600-14,500 gallon) per day.


Together with 2nd pass RO system and EDI system, the watermaker could make ultra-pure water, which is used for chemistry, pharmaceutical or electronic industries. For more details, please contact us.


R series watermaker is a small desalination system based on reverse osmosis principle which is the most popular water treatment technology in the world.


2 type is available for R series:
Modular: using R-xx(xx is normally the capacity of the system) as type name. The pretreatment unit (which is normally sand filter here), SWRO unit and chemical clean unit are designed as separated skids. It will be more flexible to choose modular design when the entrance or the space is limited, or there is no crane available.
All-in-1: using R-xxA as type name. The pretreatment unit, SWRO unit and chemical clean unit are carefully designed to be put into 1 skid. All-in-1 design could save installation time on site.



R series watermaker is user friendly and could be operated and maintained like a washing machine.
Cage design protects the watermaker from damage during operating and transportation.
To ensure the reliability of the watermaker, the core parts from the well-known manufacturers in water treatment area, such as Danfoss, Pentair, Dow, Wika, Toray, Schneider, etc. are adopted and the system is optimized with experienced engineers who have more than 20-year experience.



Application
 Island residential, remote coast area.
 Hotels, resorts.
 Fishing boat, yacht.
 Cruise ships, warships, public service vessels.
 Lighthouse.
 Offshore oil rigs
 High salinity underground water



Features
 Modular design increase the flexibility for application and installation, eg. Really good feed water could save pretreatment unit.
 All-in-1 design minimize the site installation.
 Simple process, feed pump is used as backwash pump for sand filter.
 Absolute filter element ensure the safe operation of high pressure pump and RO membrane.
 Super duplex high pressure pump using axial piston principle from Danfoss, higher efficient, lighter, more compact than common plunger pump, and the service life is up to 3 year.
 High pressure hose lower the vibration and noise level, simplify the pipe connection.
 Non-welding duplex pipe and fittings, long life and highly corrosion resistant.
 High salt rejection RO membrane from Toray, low fouling technology.

SS304 frame with 3 layers of paint avoid the corrosion from salt fog and leaking.
 “Cage design” protects the watermaker from damage during operation and transportation.
 User friendly, operated and maintained like a washing machine, could add biocides (non-oxidative biocides) to keep the membrane at good condition.
 IP54 protection level for control panel, and using Schneider or Omron parts to ensure the reliability of the control system.
 CIP pump is used as a spare pump for feed pump.
 Optional UV kit (Ultraviolet sterilizer), which ensure the safety of the product water.
 Optional SF auto kit, which could regenerate SF automatically.
 Optional touch screen system, which is more user friendly.
 Optional ERD (energy recovery device) kit, which could save energy consumption up to 45%.





Feed water requirement



Salinity (TDS) 20,000-45,000 mg/L
Temperature 5-40 °C
Turbidity < 5 NTU
COD < 10 mg/L
Ferrous (Fe2+) < 0.1 mg/L
Manganese (Mn2+) < 0.1 mg/L
Note: if the feed water is worse than above, extra pretreatment might be needed. Please contact us for solutions.



Technical Data



Technical Data Unit R-6(A) R-12(A) R-18(A) R-24(A) R-48(A)



Rated Product Flow 1)

L/H



GPH

300



80

550



150

850



220

1100



290

2300



610

Rated Recovery Rate 1) % 30 34 34 34 34
Min. Feed-in Pressure barg 0 0 0 0 0
Max. Feed-in Pressure barg 2 2 2 2 2
Min System Pressure 2) barg 20 20 20 20 20
Max System Pressure barg 70 70 70 70 70
RO Membrane Spec. inch 4040 4040 4040 4040 8040
RO Membrane Qty. pcs 2 4 6 8 4
Power
Rated Power 3) kW 3.8 5.2 7.7 10.2 18.5
Input 4)   3PH, 380 AC±10%, 50Hz




Note:

1) The rated product flow and rated recovery rate are based on the design feed (35,000 ppm, 20°C standard seawater). If the feed TDS is lower, higher product flow and higher recovery rate could be available; If the feed TDS is higher, product flow and recovery rate might be lower to avoid over pressure or scaling, contact us for details.

2) The normal system operating pressure shall be above the minimum pressure, and shall not exceed the maximum pressure. For higher system pressure, please contact us.

3) The maximum power at 70bar.

4) For other input voltage and frequency, please inform us while placing the order.







Technical Data Unit R-6A R-12A R-18A R-24A R-48A
L x W x H mm 1300x1000x1700 1450x1000x1700 1500x900x2010 1500x960x2010 2200x1250x2050
Dry Weight (wet) 1) kg 360(+135) 460(+190) 840(+350) 980(+400) 1500(+600)
Inlet   1” 1” 1” 1” 1 1/2”
Fresh Outlet   1/2” 1/2” 1/2” 1/2” 1
Waste Outlet   1” 1” 1” 1” 1 1/2”




Note:

1) The dry weight excludes membrane, quartz sands, filter cartridge and water. The wet weight includes membrane, quartz sands, filter element and water (fully filled).



Mobile Seawater Reverse Osmosis Plant , Sea Water Purification System 0

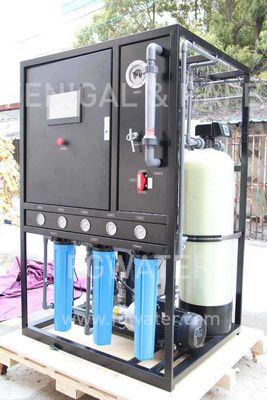

Mobile Seawater Reverse Osmosis Plant , Sea Water Purification System 1
