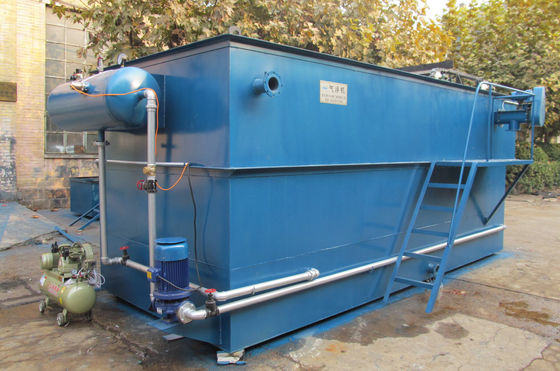

Mining Industry Packaged Wastewater Treatment System , 150m3/H DAF Clarifier

Mining Industry Packaged Wastewater Treatment System , 150m3/H DAF Clarifier

Product Details:

Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE/ISO etc.
Model Number: DAF-3-9B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized
Delivery Time: 15~30 days
Payment Terms: T/T, Western Union, Paypal etc.
Supply Ability: 200 set per month
Get Best Price Contact Now

Detail Information

Technology: Membrane Bioreactor Membrane: PVDF/PTFE Holow Fiber, Flat-sheet Optional
Design: Skid Mount/containerized Water Temp.: 5~35˚C
Water Flowrate: Up To 315 M3/day Material: Carbon Steel
Voltage: 380V,415V,220V,can Be Customized Application: Waste Water, Sewage Water Treatment
Size: Compact Or Bigger Control: Electronic,Manual/PLC
High Light:

150m3/h Packaged Wastewater Treatment System

,

220V Packaged Wastewater Treatment System

,

150m3/h DAF clarifier

Product Description

Mining Industry Packaged Wastewater Treatment System , 150m3/H DAF Clarifier

High efficiency Dissolved Air Flotation DAF Clarifier for meat processing, mining industry



Dissolved Air Flotation is liquid/solid or liquid/liquid separation process to remove tiny suspended solids that density close to the water, colloid ,oil and grease etc. Jorsun DAF is an innovation combined with traditional dissolved air flotation concept and modern technology.


A large numbers of fine and uniform bubble (5 ~ 80μm),bubbles, water, floc (oil) three-phase mixture, as a carrier, bubbles mixed with floc particles suspended in the water. Connect, adhesion ,form floc with bubbles and float to the liquid surface, scraping scum to achieve separation of impurities, water purification .



Core technology
Micro-bubble generation technologyForth circulation and flocculation technology

Characteristics and Advantages
Overall specialized, compact structure, and high performance
Huge markets ,high maturity, stable performance and reliable operation.
Hydraulic load: 3 ~ 5 m3 / (m2h)
Maximum inlet SS concentration is ≤ 1000 mg/L
Automatic scum discharge, solid content can be up to 30 ~ 100 mg/L
Applied for the wastewater with suspended solids & floc density lighter than water or close to the water and weak precipitation phenomenon



Model Capacity Power(kw) Dimension(m) Nozzle list(DN)
(m^3/h) Recirculation pump Air compressor Skimmer L/L1 W/W1 H/H1 Inlet Outlet Sludge outlet
DAF-002 ~2 0.75 0.55 0.2 3.3/2.5 2.4/1.16 2.1/1.7 50 50 80
DAF-003 ~3 0.75 0.55 0.2 3.6/2.8 2.4/1.16 2.1/1.7 50 50 100
DAF-005 ~5 1.1 0.55 0.2 3.9/3.0 2.4/1.16 2.1/1.7 80 50 100
DAF-010 ~10 1.1 0.55 0.2 4.3/3.2 2.9/1.66 2.3/1.9 100 100 100
DAF-015 ~15 2.2 0.75 0.2 5.4/4.3 2.9/1.66 2.3/1.9 100 100 100
DAF-020 ~20 3.0/5.5 0.75 0.2 5.4/4.3 3.1/2.16 2.3/1.9 150 100 100
DAF-030 ~30 3.0/5.5 0.75 0.2 6.5/5.4 3.1/2.16 2.3/1.9 150 150 150
DAF-040 ~40 3.0/5.5 0.75 0.2 6.7/5.5 3.6/2.7 2.7/2.3 200 150 150
DAF-050 ~50 7.5 1.5 0.2 7.6/6.3 3.6/2.6 2.7/2.3 200 150 150
DAF-060 ~60 7.5 1.5 0.2 7.9/6.6 4.0/3.0 2.7/2.3 250 200 150
DAF-070 ~70 11 1.5 0.2 9.2/7.9 4.0/3.0 2.7/2.3 250 200 150
DAF-080 ~80 11 1.5 0.2 9.6/8.4 4.0/3.0 2.7/2.3 250 200 150
DAF-100 ~100 15 2.2 0.2 10.7/9.4 4.4/3.4 2.7/2.3 300 250 150
DAF-120 ~120 15 2.2 0.2 11.7/10.4 4.4/3.4 2.7/2.3 300 250 150
DAF-150 ~150 18.5 2.2 0.2 12.5/11.4 4.4/3.8 2.7/2.3 300 300 150



Industries/Applications perfectly suited to a DAF Biological Treatment of Wastewater unit

• Meat processing / slaughterhouse (beef, pigs, sheep, goats)

• Ice Cream factory

• Poultry processing (chickens, turkey, duck, geese)

• Confectionary/Candy manufacturing

• Bakery / baked goods

• Oil & Gas industry

• Mining industry

• Automotive industry

• Printing manufacturer (ink removal from wastewater)

• Cereal and snack foods

• Food processing and packaging

• Dairy processing (milk, cheese, yogurt)

• Beverage factories (breweries, juice, soda)

• Paper and pulp industry

• Metal plating and finishing

• Biochemical industry

• Recycling of glass, plastics, paper

• Egg processing
