4TPH Industrial Brackish Water Reverse Osmosis Plant with SS304 Pretreatment Tanks and 5.5kW Power
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | ISO 9001 |
| Model Number: | Brackish Water Reverse Osmosis Water Plant |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 30-40 work days |
| Payment Terms: | T/T,Western Union,Paypal etc. |
| Supply Ability: | 20 Units per Month |
|
Detail Information |
|||
| Capacity Of The Device: | 4TPH | The Number And Material Of Tanks: | 2xSS304 Tanks |
|---|---|---|---|
| Process: | SF-ACF-RO | Power: | 5.5kW-380-415V, 50Hz |
| Feed Water TDS Of The Device: | <2000 Ppm | Material: | Stainless Steel 304 Tank, UPVC Pipe |
| RO Membrane: | Filmtec/Hydranautics | Other Configurations Of The Equipment: | Flower Meter & Pressure Gauge; LP&HP Switch;operational Status Indicators ;IC Control Unit & TDS Indicator |
| Highlight: | 4TPH Brackish Water Reverse Osmosis Plant,SS304 Pretreatment Tanks BWRO System,5.5kW Reverse Osmosis Water Treatment System |
||
Product Description

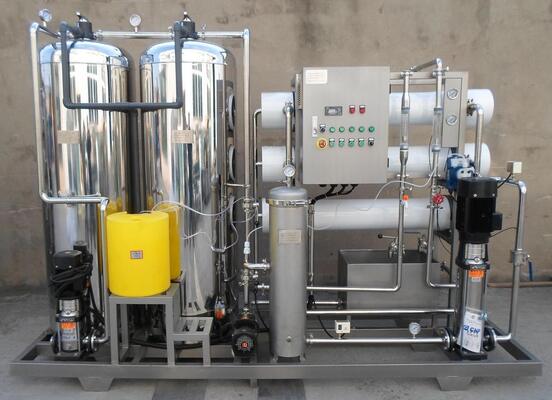

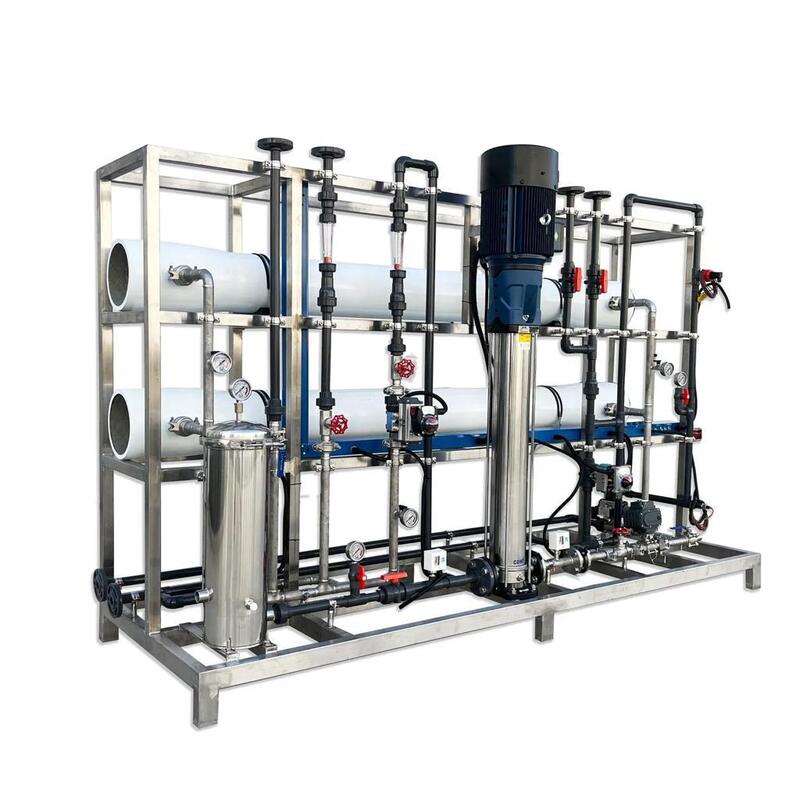

Brackish Water Reverse Osmosis Water Treatment System
Brackish Water Reverse Osmosis (BWRO) system is designed to remove dissolved salts, heavy metals, organic substances, bacteria and other impurities from high salinity water sources. It is suitable for groundwater, well water and coastal brackish water treatment.
The system uses high-quality RO membranes, SUS316L high-pressure pumps, SS304 skid structure and advanced pretreatment technology. It can remove more than 97% of dissolved contaminants and provide stable high-quality purified water.
FG Water Technologies provides customized BWRO solutions according to different raw water conditions, ensuring efficient operation, long service life and reliable water quality.
- SS304 skid-mounted structure
- High efficiency RO membrane filtration
- Suitable for brackish water TDS up to 20,000ppm
- Automatic control and monitoring system
- Optional Filmtec/Hydranautics membranes
- Customized design according to water quality
| Model | Configuration | Size (L*W*H cm) | Weight |
|---|---|---|---|
| 250L/h (1,600 GPD) | SS304 skid, 4"x1 RO membrane, 1.7kW-380-415V, SF-ACF-RO, 2x SS304 tanks, flow meter, pressure gauge, LP/HP switch, IC control, TDS meter | 160*78*170 | 220KG |
| 250L/h (1,600 GPD) | SS304 skid, 4"x1 RO membrane, 1.7kW-380-415V, SF-ACF-IXF-RO, 3x SS304 tanks, automatic control system | 160*78*170 | 240KG |
| 500L/h (3,200 GPD) | SS304 skid, 4"x2 RO membrane, 1.7kW-380-415V, SF-ACF-RO, 2x SS304 tanks, automatic control system | 160*78*170 | 220KG |
| 500L/h (3,200 GPD) | SS304 skid, 4"x2 RO membrane, 1.7kW-380-415V, SF-ACF-IXF-RO, 3x SS304 tanks, automatic control system | 160*78*170 | 240KG |
| 1TPH (6,400 GPD) | SS304 skid, 4"x4 RO membrane, 2.1kW-380-415V, SF-ACF-RO, 2x SS304 tanks | 160*78*170 | 230KG |
| 2TPH (12,800 GPD) | SS304 skid, 8"x2 RO membrane, 3.0kW-380-415V, SF-ACF-RO, 2x SS304 tanks | 260*80*170 | 280KG |
| 3TPH (19,200 GPD) | SS304 skid, 8"x3 RO membrane, 5.5kW-380-415V, SF-ACF-RO, 2x SS304 tanks | 260*80*170 | 340KG |
| 4TPH (25,600 GPD) | SS304 skid, 8"x4 RO membrane, 5.5kW-380-415V, SF-ACF-RO, 2x SS304 tanks | 280*85*170 | 380KG |
| 5TPH (32,000 GPD) | SS304 skid, 8"x5 RO membrane, 7.4kW-380-415V, SF-ACF-RO, 2x SS304 tanks | 160*85*170 | 400KG |
| 6TPH (38,400 GPD) | SS304 skid, 8"x6 RO membrane, 7.9kW-380-415V, SF-ACF-RO, 2x SS304 tanks | 280*85*170 | 430KG |
| 8TPH (51,200 GPD) | SS304 skid, 8"x8 RO membrane, 14kW-380-415V, SF-ACF-RO, 2x SS304 tanks | 280*85*180 | 500KG |
| 10TPH (64,000 GPD) | SS304 skid, 8"x10 RO membrane, 19kW-380-415V, SF-ACF-RO, 2x SS304 tanks | 280*85*190 | 680KG |
- Pretreatment: Sand Filter + Activated Carbon Filter + Optional Ion Exchange Filter
- RO membrane: Filmtec / Hydranautics optional
- Pipe material: uPVC
- Pump: SUS316L high-pressure pump
- Control: Automatic IC control system
- Monitoring: Pressure gauge, flow meter, TDS indicator
- Safety: Low/high pressure protection
FG Water Technologies is a professional water treatment equipment manufacturer specializing in RO systems, BWRO systems, SWRO systems, UF systems, EDI equipment, media filters and water softening systems.
With advanced manufacturing facilities and experienced technical teams, FG provides customized water purification solutions for industrial, commercial and municipal applications worldwide.
Our products are widely used in food & beverage, pharmaceutical, chemical, power generation, municipal water supply and industrial wastewater treatment industries.
