500 m³/day High-Efficiency Containerized BWRO Desalination Plant with Energy Recovery System
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T,Western Union,Paypal etc. |
| Supply Ability: | 20 Units per Month |
|
Detail Information |
|||
| Permeate Flow Rate: | 500 M³/day (20.8 M³/h, 132,000 GPD) | Nominal Recovery Rate: | 75% Standard / 80% With Recirculation |
|---|---|---|---|
| Specific Energy Consumption: | < 1.5 KWh/m³ (with ERD) / 2.8 KWh/m³ (without ERD) | Feed Water TDS Range: | 500 - 5,000 Ppm |
| Operating Pressure Range: | 12~18 Bar | Energy Recovery Efficiency: | ≥ 96% (PX Pressure Exchanger Type) |
| Highlight: | 500 m³/day BWRO Desalination System,High-Efficiency Reverse Osmosis Water Plant,Energy Recovery System Containerized BWRO Desalination Plant |
||
Product Description
The 500 m³/day High-Efficiency Containerized BWRO Desalination Plant is an advanced mobile water treatment solution designed for large-scale brackish water purification with optimized energy consumption.

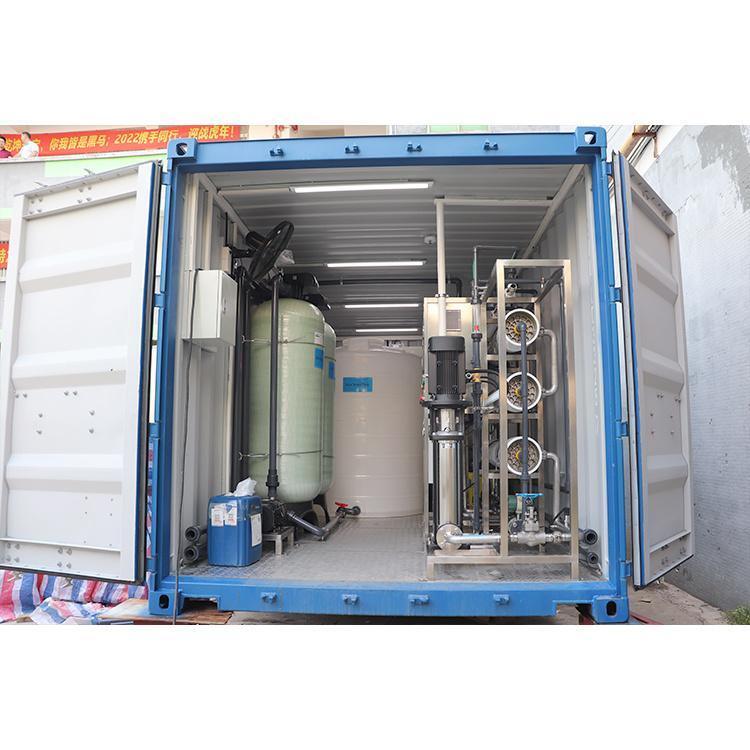

Installed inside a standard 40ft High Cube ISO container, the complete system integrates pretreatment, reverse osmosis desalination, energy recovery technology, chemical dosing, CIP cleaning, and intelligent control into a single transportable unit.
With a production capacity of 500 m³/day, the system is engineered for applications requiring rapid deployment, reliable operation, and reduced energy costs. The integrated Energy Recovery Device (ERD) improves hydraulic efficiency by recovering pressure energy from the concentrate stream, significantly reducing overall power consumption compared with conventional BWRO systems.
- Integrated ERD system improves hydraulic energy utilization
- Reduces high-pressure pump energy demand
- Specific energy consumption optimized for low-energy operation
- Suitable for continuous large-scale water production
- Standard 40ft ISO High Cube container structure
- Factory assembled and tested before shipment
- Rapid installation and commissioning
- Suitable for permanent, temporary, and emergency water supply
- Low-energy RO membrane configuration
- High salt rejection performance
- Stable permeate production under variable feed conditions
- PLC automatic control system
- Touchscreen HMI interface
- Remote monitoring capability
- Real-time operating parameter management
Suitable for:
- Drinking water production
- Small cities and communities
- Remote area water infrastructure
Applications include:
- Mining operations
- Food and beverage factories
- Industrial process water supply
- Power plant auxiliary water systems
Ideal for:
- Drought response projects
- Temporary water supply
- Disaster relief operations
- Remote construction sites
Used for:
- Coastal irrigation projects
- Arid region agriculture
- Brackish groundwater desalination
| Parameter | Specification |
|---|---|
| System Model | Containerized BWRO-500 |
| Product Water Capacity | 500 m³/day |
| Production Flow | 20.8 m³/h |
| Container Type | 40ft High Cube ISO Container |
| Recovery Rate | 75% Standard / Up to 80% with optimization |
| Energy Consumption | <1.5 kWh/m³ with ERD |
| Feed Water TDS Range | 500-5,000 ppm |
| Salt Rejection | ≥99% |
| Operating Pressure | 12-18 bar |
| Power Supply | 380-480V / 3 Phase / 50-60Hz |
| Control System | PLC + HMI Remote Monitoring |
| Installation Type | Fully Integrated Container System |
The integrated pretreatment system protects RO membranes and improves operational stability.
Includes:
- Multimedia filtration
- Activated carbon filtration
- Anti-scalant dosing system
- Cartridge filtration unit
Functions:
- Removal of suspended solids
- Reduction of organic contaminants
- Prevention of membrane scaling and fouling

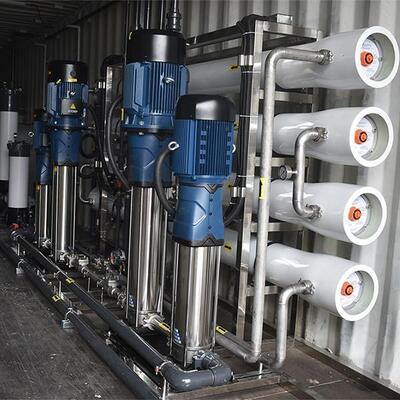

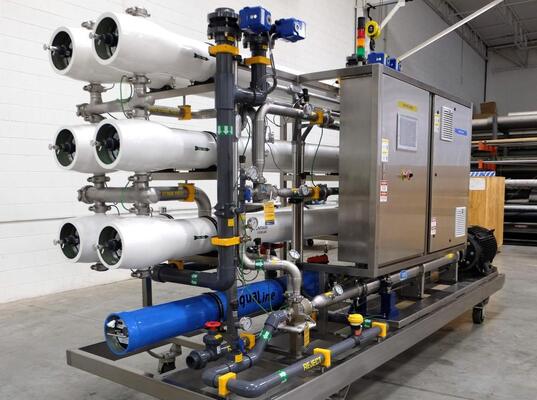

The RO desalination unit includes:
- High-pressure pump system
- Energy recovery device
- RO membrane pressure vessels
- Instrumentation and flow control components
The advanced membrane process removes dissolved salts and impurities to produce high-quality treated water.
The ERD technology recovers hydraulic energy from the high-pressure concentrate stream and transfers it back into the feed process.
Benefits:
- Lower electricity consumption
- Reduced operating expenses
- Improved overall system efficiency
- Better performance for continuous operation

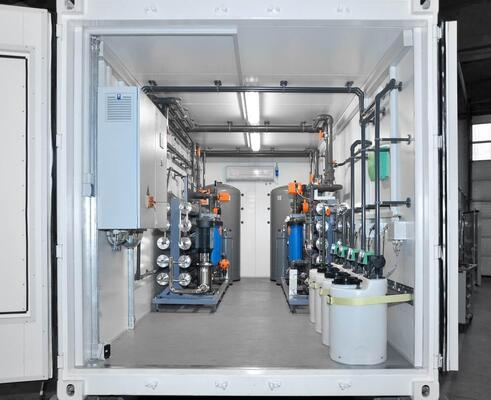

- 40ft ISO high cube container design
- Weather-resistant structure
- Integrated ventilation and climate management
- Chemical dosing area
- Safety protection system
- Factory tested before delivery
- Easy transportation and installation
Each containerized BWRO system undergoes comprehensive factory testing, including:
- Hydraulic performance testing
- Electrical system inspection
- Instrument calibration
- PLC control verification
- RO performance evaluation
Complete technical documentation is supplied, including:
- P&ID drawings
- Electrical diagrams
- Operation manuals
- Maintenance instructions
- Commissioning documents
The 500 m³/day Containerized BWRO Desalination Plant combines energy-saving RO technology, integrated container design, and intelligent automation to provide a dependable solution for large-scale brackish water purification.
It is an ideal choice for users requiring efficient desalination, fast deployment, and long-term reliable water production in industrial, municipal, and remote applications.
