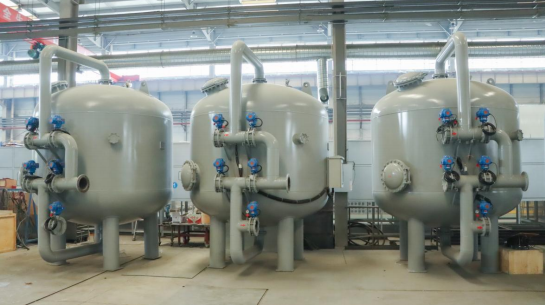

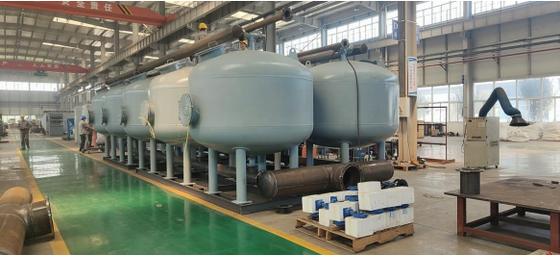

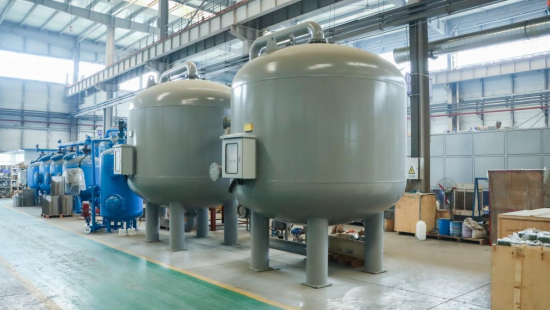

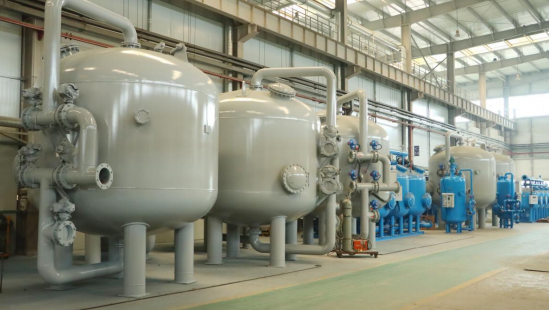

Industrial Multi Media Filter Vessel with High Flow Capacity and Customized Design for Water Purification
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | ISO 14001， CE ，ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T,Western Union,Paypal etc. |
| Supply Ability: | 20 set per month |
|
Detail Information |
|||
| Weight: | 4t | Dimension: | 3m*4.5m |
|---|---|---|---|
| Cooling Method: | Air Cooling/Water Cooling | Rated Power: | 550 W~~1250 W |
Product Description
High Efficiency Multi Media Filter Vessel for Industrial Water Treatment and Purification
The High Efficiency Multi Media Filter Vessel is a pressure filtration system designed for removing suspended solids, turbidity, sediments, and other impurities from water. Using advanced multi-layer filtration technology with different filter media such as quartz sand, anthracite, activated carbon, or customized filtration materials, the system provides efficient water purification and stable filtration performance.
The filter vessel is widely used as a pretreatment unit in industrial water treatment systems, including reverse osmosis (RO) systems, wastewater treatment, process water purification, and general water filtration applications. The system can be customized according to different flow rates, filtration requirements, water quality conditions, and installation environments.
Available designs include carbon steel, epoxy-coated carbon steel, and stainless steel 304/316 materials for different applications.
- Multi-layer filtration design for effective removal of suspended solids and turbidity
- Optimized filtration velocity for stable operation
- Large filtration capacity with reliable performance
- Suitable for continuous industrial operation
- High-quality carbon steel or stainless steel construction
- Corrosion-resistant surface treatment available
- Designed for long service life and reliable pressure operation
- Customized vessel size and configuration available
- Quartz sand for suspended solids removal
- Anthracite media for enhanced filtration performance
- Activated carbon for organic matter and odor reduction
- Customized media combinations according to water quality requirements
- Industrial water pretreatment
- Reverse osmosis (RO) system pretreatment
- Drinking water purification
- Wastewater reuse systems
- Boiler feed water treatment
- Process water filtration
- Food and beverage industry water treatment
- Chemical and manufacturing industries
| Model | Vessel Diameter | Design Flow Rate | Filtration Velocity | Material | Application |
|---|---|---|---|---|---|
| FG-MF-1000 | Customized | 10-20 m³/h | 8-12 m/h | Carbon Steel / SS304 | Industrial Water Filtration |
| FG-MF-1500 | Customized | 20-40 m³/h | 8-12 m/h | Carbon Steel / SS304 | Water Pretreatment |
| FG-MF-2000 | Customized | 40-60 m³/h | 8-12 m/h | Carbon Steel / SS304 | Industrial Filtration System |
| FG-MF-3000 | Customized | 60-100 m³/h | 8-12 m/h | Carbon Steel / SS304/316 | Large Capacity Water Treatment |
- Industrial water purification systems
- RO system pre-filtration
- Surface water treatment
- Groundwater filtration
- Food and beverage processing water treatment
- Pharmaceutical water pretreatment
- Cooling tower circulating water filtration
- Wastewater recycling and reuse systems
- Municipal and commercial water treatment projects
The Multi Media Filter Vessel uses different layers of filtration media to remove impurities from water. During operation, raw water enters the top distribution system and flows downward through multiple media layers. Suspended solids, sediments, and impurities are trapped inside the filter media, while purified water is collected through the bottom drainage system.
When the filter reaches a certain pressure difference, a backwashing process is performed to remove accumulated impurities and restore filtration performance. The filtration process provides:
- Suspended solids removal
- Turbidity reduction
- Water quality improvement
- Stable pretreatment performance
Each Multi Media Filter Vessel is manufactured and inspected according to strict quality standards before shipment to ensure safe operation and reliable performance.
We provide comprehensive technical support, including:
- Equipment selection guidance
- Filtration system design support
- Installation assistance
- Operation instructions
- Maintenance recommendations
- Customized water treatment solutions
FG Water Technologies specializes in industrial water filtration, multi media filtration systems, and complete water treatment solutions, providing reliable products, professional technical service, and export support for customers worldwide.
