DuPont™ AmberLite™ HPR1200 Na Uniform Particle Size, Gel, Strong Acid Cation Ion Exchange Resin
Product Details:
| Place of Origin: | China |
| Brand Name: | Dupont |
| Certification: | ISO9001 |
| Model Number: | DuPont™ AmberLite™ HPR1200 Na |
| Document: | IER-AmberLite-HPR1200-Na-PD...en.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |

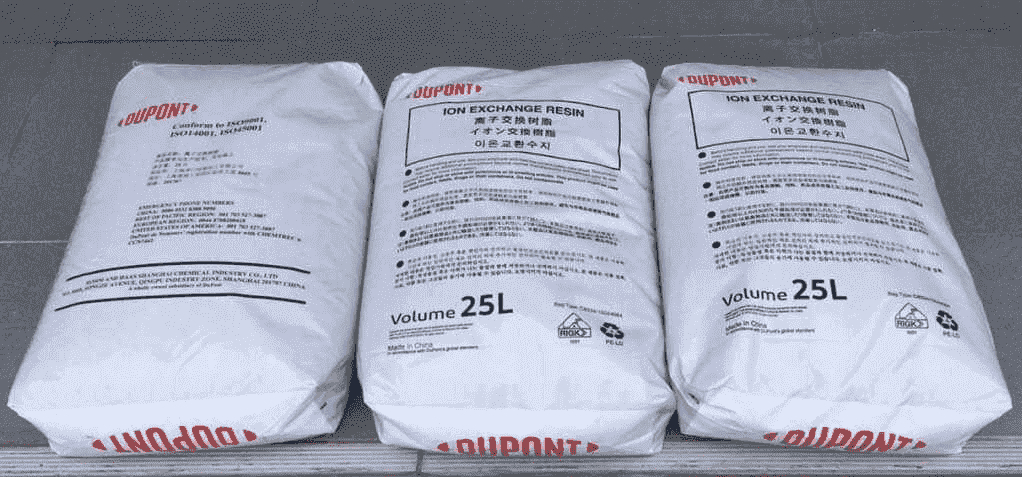

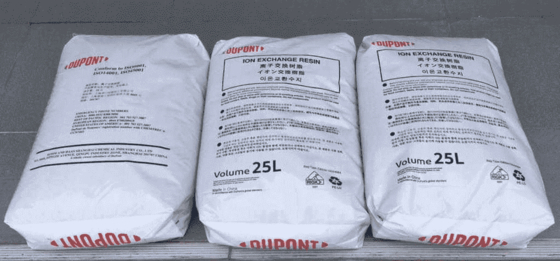

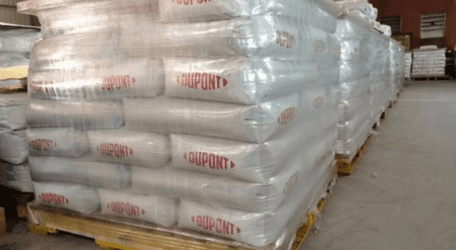

| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Features: | Uniform Particle Size, Gel, Strong Acid Cation Ion Exchange Resin | Compatible System Designs: | Co-current Systems,Counter-current / Hold-down Systems,Packed Beds,Mixed Beds |
|---|---|---|---|
| Historical Reference: | Previously Sold As DOWEX MARATHON™ 1200 Na Ion Exchange Resin. | Applications: | Industrial Water Softening,Demineralization (when Sodium-form Resin Is Specified) |
| Functional Group: | Sulfonic Acid | Ionic Form (as Shipped): | Na⁺ |
| Total Exchange Capacity: | ≥ 2.0 Eq/L (Na⁺ Form) | Water Retention Capacity: | 43.0 – 50.0% (Na⁺ Form) |
Product Description
1. Product Overview
DuPont™ AmberLite™ HPR1200 Na is a uniform particle size, gel-type, strong acid cation exchange resin designed for industrial softening applications requiring high performance and cost-effective operation. Its optimized chemical properties and particle size ensure excellent operating capacity and rinse characteristics while reducing chemical regenerant and rinse water consumption. Compatible with all system technologies, it is also suitable for demineralization when the sodium form is preferred.
2. Applications
-
Industrial water softening
-
Demineralization (when sodium-form resin is specified)
3. Compatible System Designs
-
Co-current systems
-
Counter-current / hold-down systems
-
Packed beds
-
Mixed beds
4. Historical Reference
Previously sold as DOWEX MARATHON™ 1200 Na Ion Exchange Resin.
5. Typical Properties
Physical Properties
| Property | Specification |
|---|---|
| Copolymer | Styrene-divinylbenzene |
| Matrix | Gel |
| Type | Strong acid cation |
| Functional Group | Sulfonic acid |

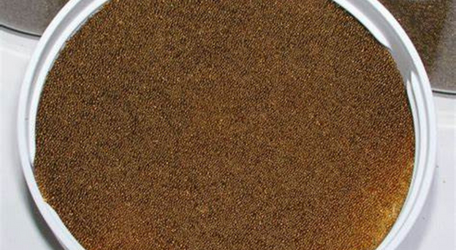

| Physical Form | Dark brown translucent spherical beads |
Chemical Properties
| Property | Specification |
|---|---|
| Ionic Form (as shipped) | Na⁺ |
| Total Exchange Capacity | ≥ 2.0 eq/L (Na⁺ form) |
| Water Retention Capacity | 43.0 – 50.0% (Na⁺ form) |
Particle Size Distribution
| Parameter | Specification |
|---|---|
| Particle Diameter | 585 ± 50 μm |
| Uniformity Coefficient | ≤ 1.10 |
| < 300 μm | ≤ 0.1% |
| > 850 μm | ≤ 3.0% |
ℹ For additional particle size information, refer to Document No. 45-D00954-en.
Stability
-
Whole Uncracked Beads: ≥ 95%
-
Swelling:
-
Ca²⁺ → Na⁺: 5%
-
Na⁺ → H⁺: 8%
-
Density
-
Particle Density: 1.29 g/mL
-
Shipping Weight: 820 g/L
6. Operating Conditions
-
Temperature Range (Na⁺ form): 5 – 150°C (41 – 302°F)
-
pH Range:
-
Service Cycle: 1 – 14
-
Stable: 0 – 14
-
⚠ For detailed information on minimum bed depth, operating conditions, and regeneration procedures, refer to:
Mixed Beds (Document No. 45-D01127-en)
Separate Beds (Document No. 45-D01131-en)
7. Hydraulic Characteristics
-
Backwash Expansion: Estimated bed expansion as a function of backwash flow rate and temperature is shown in Figure 1.
-
Pressure Drop: Estimated pressure drop as a function of service flow rate and temperature is shown in Figure 2 (valid for clean water at service run start).
(Note: Refer to original document for graphical data.)
8. Safety & Compliance
-
Warning: Strong oxidizing agents (e.g., nitric acid) may degrade the resin or cause violent reactions. Consult experts before use.
-
Users should review safety data sheets (SDS) and ensure compliance with local regulations.
